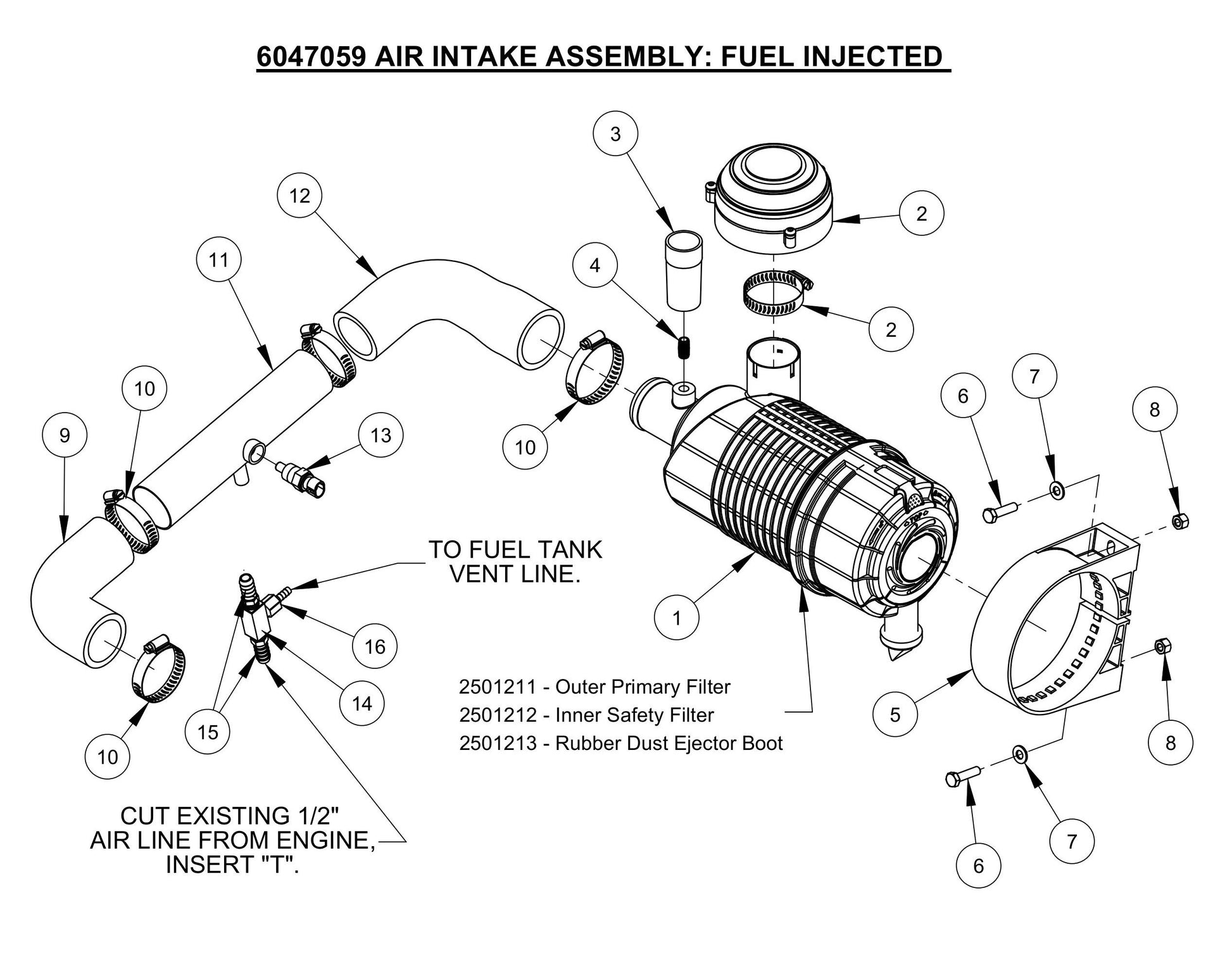

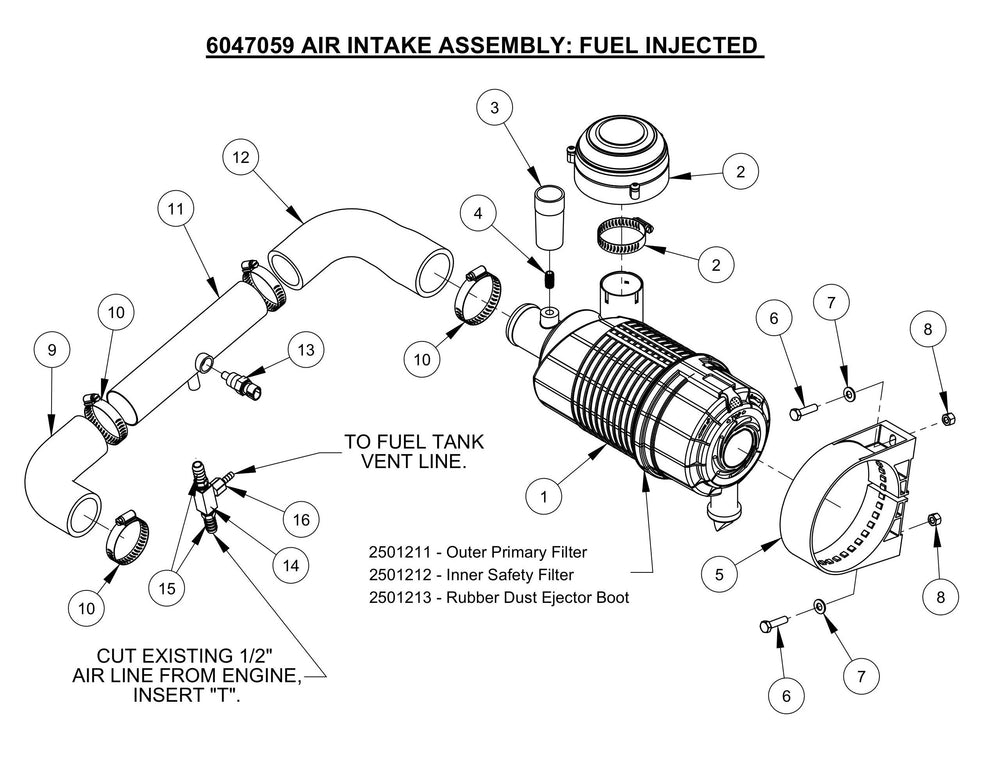

CC3535 FI Air Intake Assembly Parts (Fuel Injected)

CC3535 FI Air Intake Assembly Parts (Fuel Injected)

  • CC3535 FI Air Intake Assembly Parts (Fuel Injected)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2500985 Air Cleaner Complete for CC3535 Concrete Saw Core Cut by Diamond Products
$466.29
2
2500173 Pre-Cleaner with Clamp for CC3535 Concrete Saw Core Cut by Diamond Products
$159.39
3
2500423 Restriction Indicator for CC3535 Concrete Saw Core Cut by Diamond Products
$66.72
4
3200117 Close Nipple, 1/8" NPT for CC3535 Concrete Saw Core Cut by Diamond Products
$3.99
5
2500986 Mounting Band, Polymer for CC3535 Concrete Saw Core Cut by Diamond Products
$44.12
6
2900217 Cap Screw, Hex Hd., 5/16-18 x 1-1/4" for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900039 Lock Nut 5/16-18 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
6097019 Air Intake Hose Engine for CC3535 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
10
3200095 Hose Clamp #32 for CC3535 Concrete Saw Core Cut by Diamond Products
$6.99
11
6097021 Air Temp Housing Weldment for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
12
6097018 Hose Elbow 2"ID 90 Degree for CC3535 Concrete Saw Core Cut by Diamond Products
$52.33
13
2707335 Air Temp Sensor FI CC3500 for CC3535 Concrete Saw Core Cut by Diamond Products
$86.67
14
3200011 Tee, 1/4 MPT x 1/4 FPT for CC3535 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
15
3200463 Fitting, 1/4" M. Pipe to 1/2" Hose Barb for CC3535 Concrete Saw Core Cut by Diamond Products
$6.99
16
3200231 Fitting, 1/4 FPT to 1/4 Hose Barb for CC3535 Concrete Saw Core Cut by Diamond Products
$6.58
View full details
