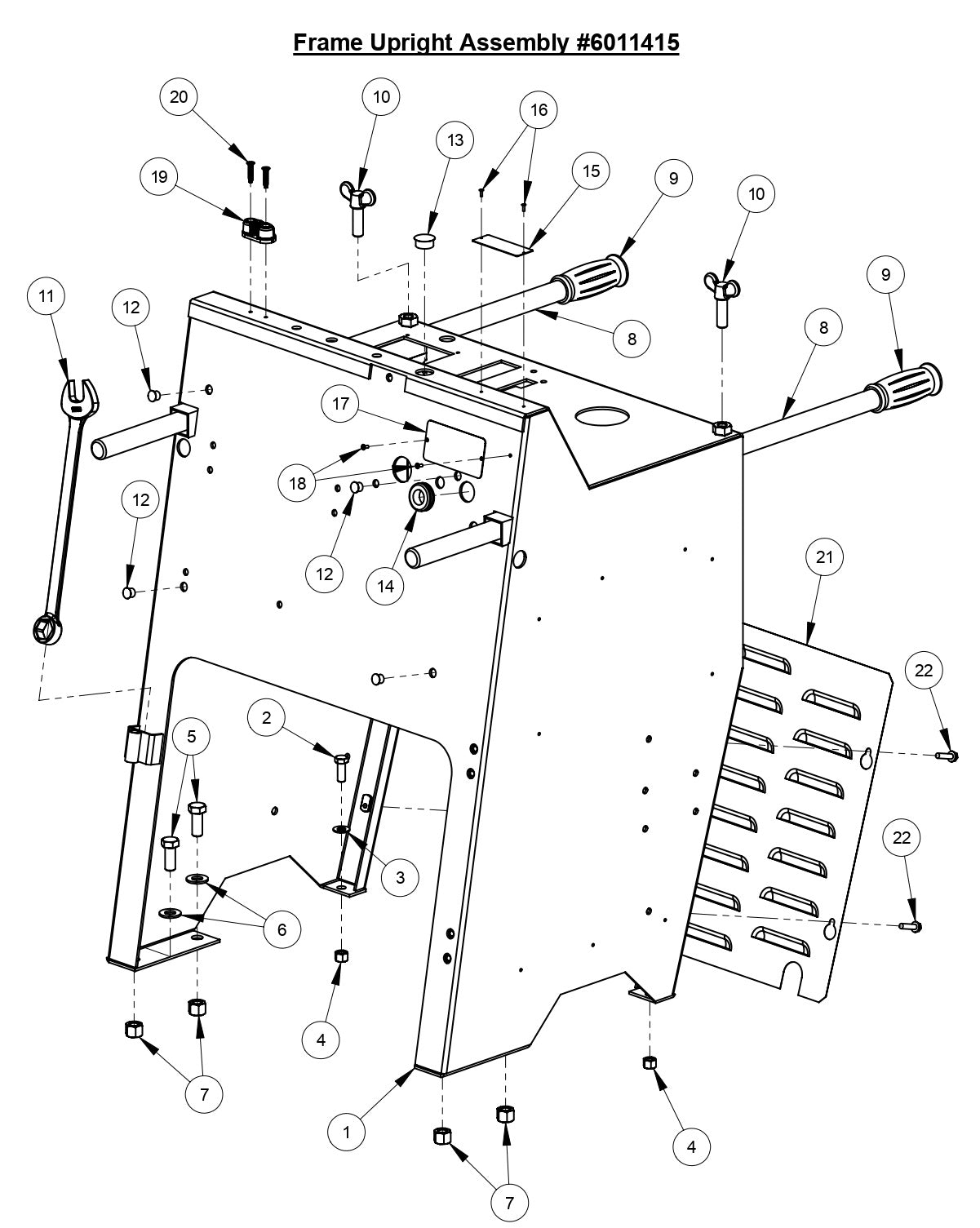

CC3535 Frame Upright Assembly Parts

CC3535 Frame Upright Assembly Parts

  • CC3535 Frame Upright Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6011401 Frame Upright Weldment for CC3535 Core Cut by Diamond Products
$1,169.19
2
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
3
2900014 Flat Washer, 3/8" SAE for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900018 Lock Nut, 3/8-16 Nylon for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900025 Cap Screw, Hex Hd., 1/2-13 x 1-1/4" for CC3535 Concrete Saw Core Cut by Diamond Products
$3.99
6
2900058 Flat Washer, 1/2" SAE for CC3535 Concrete Saw Core Cut by Diamond Products
$3.99
7
2900026 Lock Nut, 1/2-13 Nylon for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
8
6010014 Handle Bar, 36" Long for CC3535 Concrete Saw Core Cut by Diamond Products
$60.60
9
2500636 Handle Grip for CC3535 Concrete Saw Core Cut by Diamond Products
$32.64
10
2900430 Hand Lock Knob, 1/2-13 x 1-1/2" for CC3535 Concrete Saw Core Cut by Diamond Products
$23.67
11
2503704 Wrench, 15/16" Combination for CC3535 Concrete Saw Core Cut by Diamond Products
$62.41
12
2501287 Plug, 7/16" Hole for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
13
2500549 Plug, 7/8" Hole for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
14
2500203 Grommet, 3/4" I.D. for CC3535 Concrete Saw Core Cut by Diamond Products
$4.99
15
1800169 Serial Number Plate, US for CC3535 Concrete Saw Core Cut by Diamond Products
$21.24
16
2900096 Rivet, 3/32" Dia. for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
17
1800377 Serial Number Plate, CE for CC3535 Concrete Saw Core Cut by Diamond Products
$24.75
18
2900287 Rivet, 1/8" Dia. for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
19
2501427 Cable Cleat for CC3535 Concrete Saw Core Cut by Diamond Products
$100.02
20
2900483 Tap Screw, Flat Hd., #10-24 x 1" for CC3535 Concrete Saw Core Cut by Diamond Products
$3.99
21
6011023 Rear Cover Screen for CC3535 Concrete Saw Core Cut by Diamond Products
$114.00
22
2900180 Cap Screw, Hex Flange Hd., 1/4-20 x 1" for CC3535 Concrete Saw Core Cut by Diamond Products
$3.99
View full details
