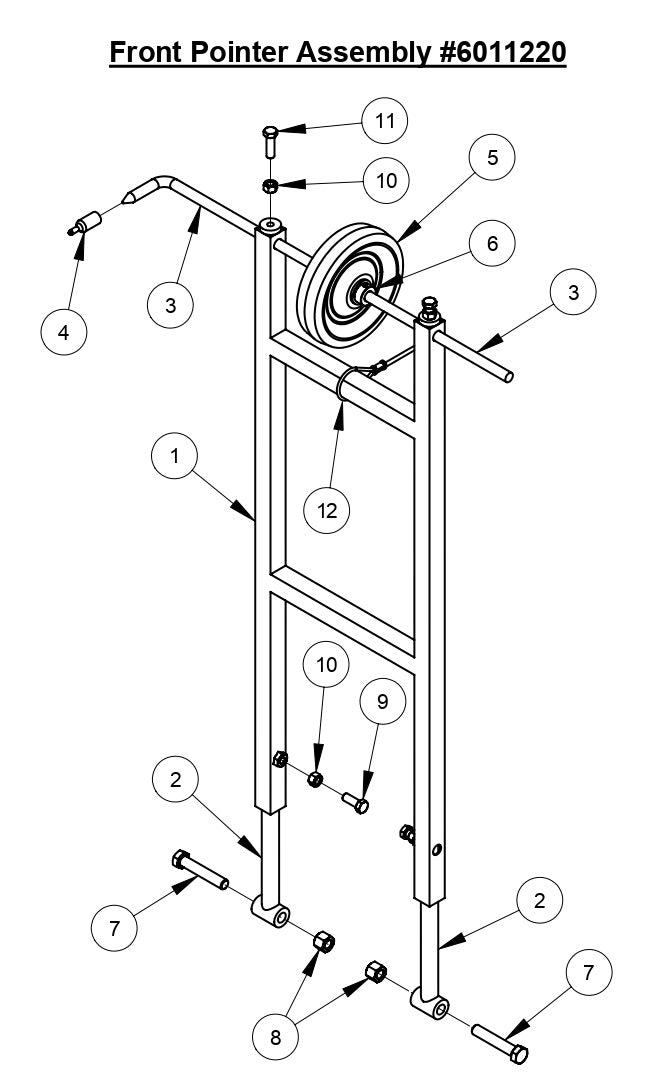

CC3535 Front Pointer Assembly Parts

CC3535 Front Pointer Assembly Parts

  • CC3535 Front Pointer Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010541 Front Pointer Frame for CC3535 Concrete Saw Core Cut by Diamond Products
$150.48
2
6011152 Front Pointer Arm for CC3535 Concrete Saw Core Cut by Diamond Products
$37.96
3
6010009 Front Pointer Rod for CC3535 Concrete Saw Core Cut by Diamond Products
$27.36
4
2500740 Pointer Cap for CC3535 Concrete Saw Core Cut by Diamond Products
$4.99
5
2501409 Wheel, 6" for CC3535 Concrete Saw Core Cut by Diamond Products
$50.58
6
2500007 Set Collar, 1/2" with Set Screw for CC3535 Concrete Saw Core Cut by Diamond Products
$6.99
7
2900105 Cap Screw, Hex Hd., 1/2-13 x 2-3/4" for CC3535 Concrete Saw Core Cut by Diamond Products
$8.82
8
2900026 Lock Nut, 1/2-13 Nylon for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900033 Hex Nut, 3/8-16 for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900013 Cap Screw, Hex Hd., 3/8-16 x 1-1/4" for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
12
6011226 Pointer Lanyard for CC3535 Concrete Saw Core Cut by Diamond Products
$81.06
