CC3535 Instrument Panel Assembly Parts

CC3535 Instrument Panel Assembly Parts

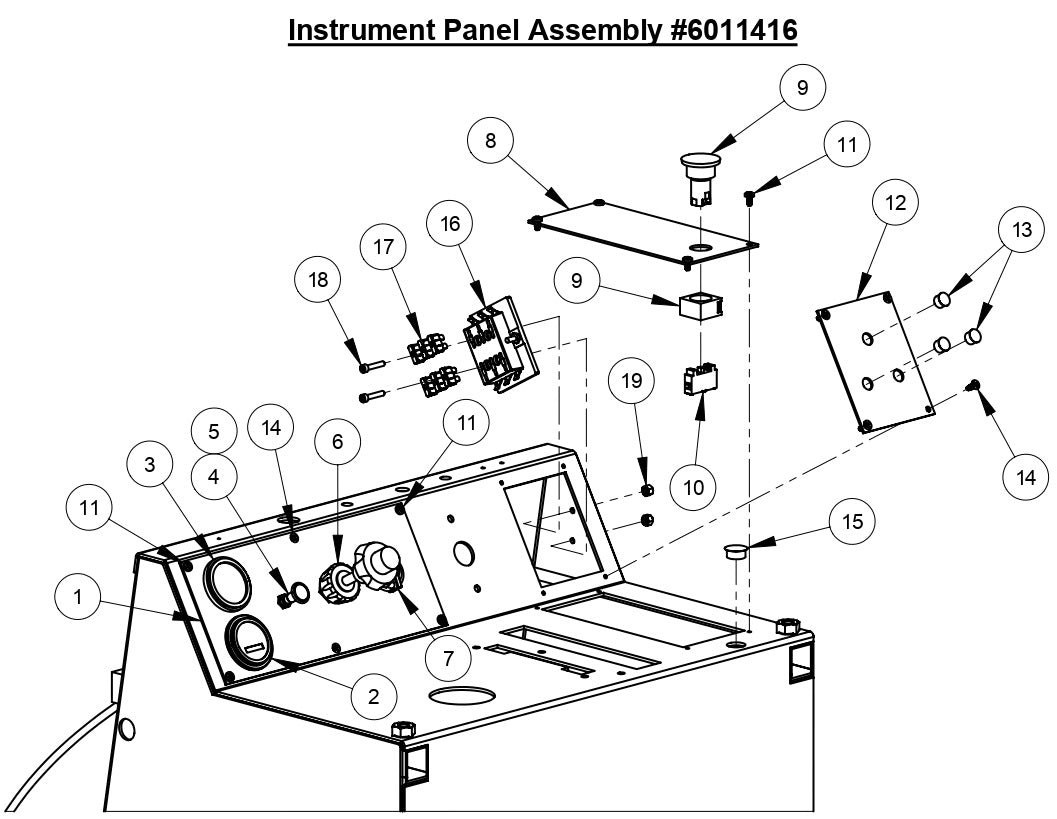

  • CC3535 Instrument Panel Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products PANEL, GAUGE(CC3500-HOUR) 5-1/4" X 12-1/2" 6011072
$35.69
2
2800064 Hour Meter for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$104.97
3
2800271 Volt Meter for CC3535 Concrete Saw Core Cut by Diamond Products
$80.71
4
2500186 Choke Cable for CC3500J Concrete Saw Core Cut by Diamond Products
$29.00
5
2900148 Hex Nut, 3/8-24 for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
6
2500376 Vernier Throttle Cable for CC3500J Concrete Saw Core Cut by Diamond Products
$202.00
7
2500220 Ignition Switch for CC3535 Concrete Saw Core Cut by Diamond Products
$175.23
8
6011024 Hydraulic Pump Cover Plate for CC3535 Concrete Saw Core Cut by Diamond Products
$24.23
9
2800461 Emergency Stop Button for CC3535 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
10
2800462 Contact Block, N.C. for CC3535 Concrete Saw Core Cut by Diamond Products
$40.19
11
2900021 Tap Screw, Pan Hd., #10-24 x 3/8" for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
12
6010098 Switch Plate for CC3535 Concrete Saw Core Cut by Diamond Products
$13.67
13
2500204 Plug 1/2" Hole for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900445 Tap Screw, Flat Hd., #10-24 x 1/2" for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
15
2500463 Plug, 3/4" Hole for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
16
2800388 Fuse Panel, 6 Circuit for CC3535 Concrete Saw Core Cut by Diamond Products
$51.43
17
2800389 Fuse, 10 Amp Red ATO/ATC for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
18
2900913 Cap Screw, Soc. Hd., #10-24 x 1" for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
19
2900017 Lock Nut, #10-24 Nylon for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
