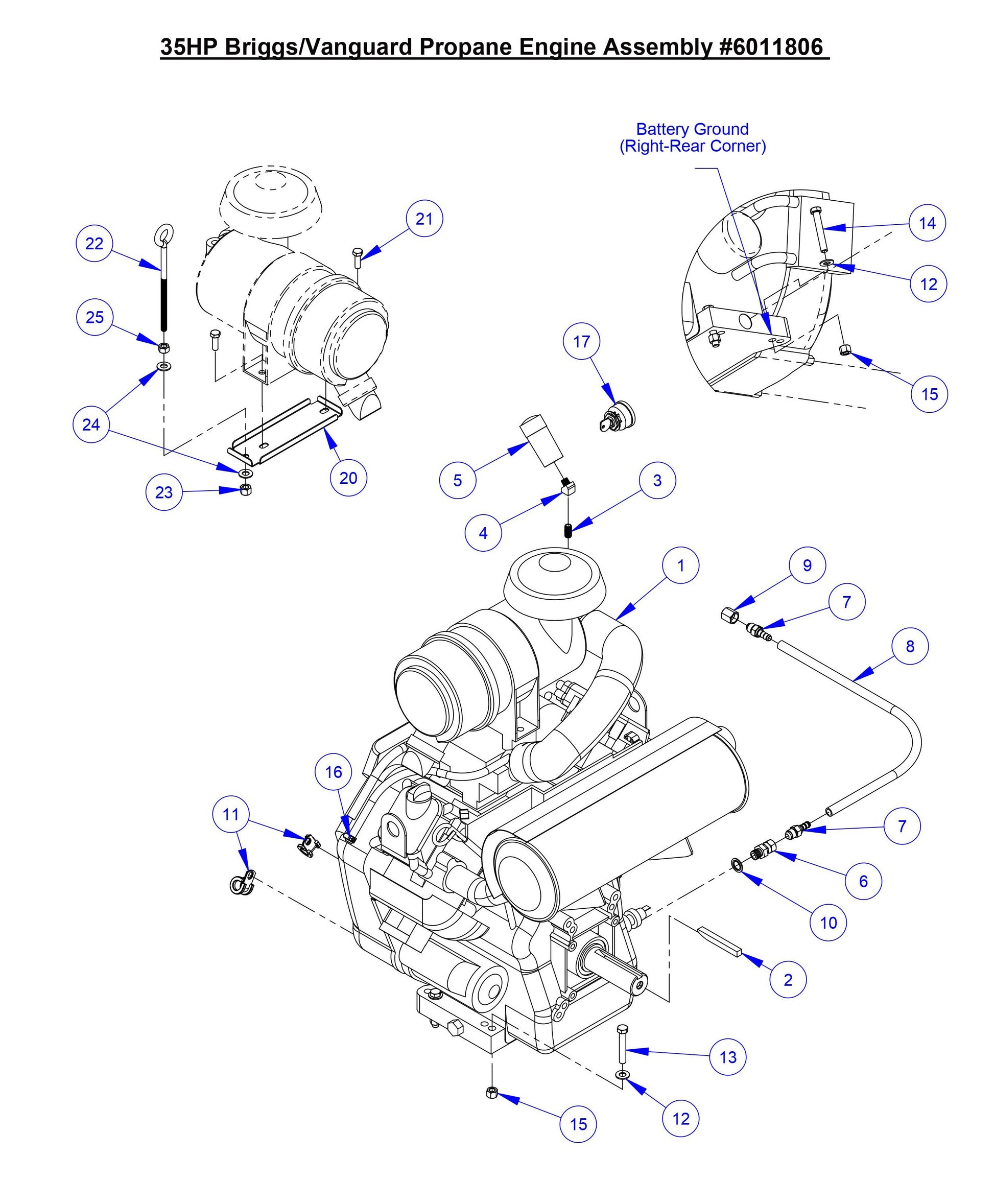

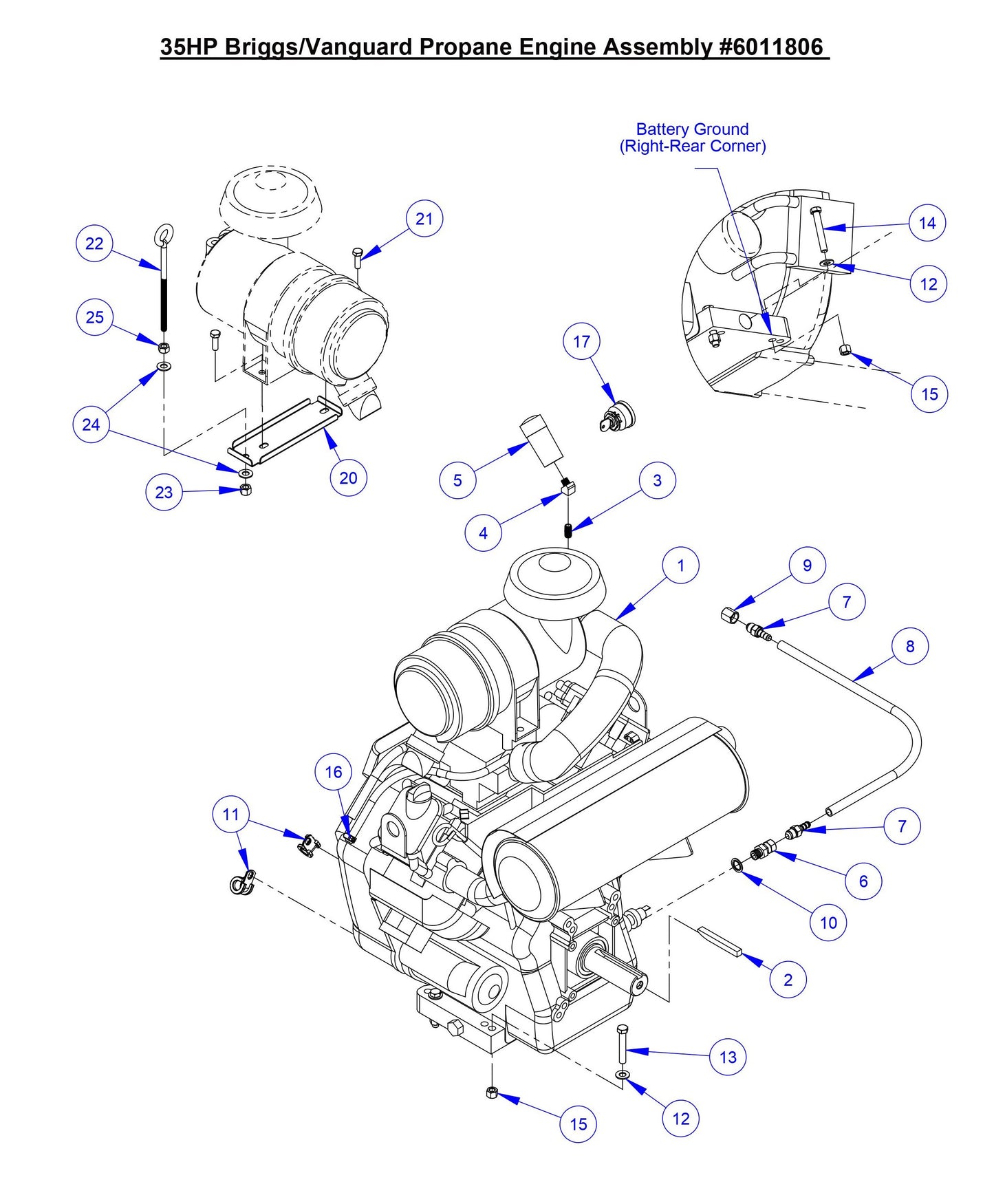

CC3535JBVP 35HP Briggs Vanguard Propane Engine Assembly Parts

CC3535JBVP 35HP Briggs Vanguard Propane Engine Assembly Parts

  • CC3535JBVP 35HP Briggs Vanguard Propane Engine Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
6011027 Key, 3/8" Sq. x 3-1/4" Bevel End for CC3500J Concrete Saw Core Cut by Diamond Products
$18.15
3
3200117 Close Nipple, 1/8" NPT for CC3535 Concrete Saw Core Cut by Diamond Products
$3.99
4
3200099 Street Elbow, 1/8" NPT x 45 Deg. for CC3500J Concrete Saw Core Cut by Diamond Products
$10.06
5
2500423 Restriction Indicator for CC3535 Concrete Saw Core Cut by Diamond Products
$66.72
6
3201890 Fitting, M14 x 1.5 O-Ring to 3/8" F. JIC Swivel for CC3500J Concrete Saw Core Cut by Diamond Products
$67.45
7
3201891 Fitting, 3/8" M. JIC to 3/8" Hose Barb for CC3500J Concrete Saw Core Cut by Diamond Products
$16.77
8
6011736 Oil Drain Hose, 3/8" I.D. x 22" for CC3500J Concrete Saw Core Cut by Diamond Products
$17.23
9
3201496 Cap, 3/8" JIC for CC3500J Concrete Saw Core Cut by Diamond Products
$6.99
10
2901319 Bonded Sealing Washer, M14 for CC3500J Concrete Saw Core Cut by Diamond Products
$10.42
11
2501434 Hose Clamp 5/8" x 3/4" Wide for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.99
12
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
24
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900079 Cap Screw, Hex Hd., 3/8-16 x 2-1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
14
2900596 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
15
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
23
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
16
3200062 Hose Clamp #4 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$7.33
17
2702622 Ignition Switch w/ Key (Briggs-Vanguard) for CC3500J Concrete Saw Core Cut by Diamond Products
$57.21
18
6049053 Remote Wire Harness Extension (Not Shown) for CC3500J Concrete Saw Core Cut by Diamond Products
$148.50
20
6043610 Eyebolt Mount, 35 HP Briggs Vanguard for CC3500J Concrete Saw Core Cut by Diamond Products
$65.00
21
2900360 Cap Screw, Hex Hd., M8-1.25 x 25mm for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
22
2900602 Eye Bolt, 3/8-16 x 6" for CC3500J Concrete Saw Core Cut by Diamond Products
$11.82
25
2900033 Hex Nut 3/8-16 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
1
2600635 Briggs Vanguard Engine, 35 HP fits CC3535JBVP by Core Cut Diamond Products
$4,315.41
19
6044016 Propane Wire Harness Addition fits CC3535JBVP by Core Cut Diamond Products
$82.02
View full details
