CC3535JBVP Instrument Panel Assembly Parts

CC3535JBVP Instrument Panel Assembly Parts

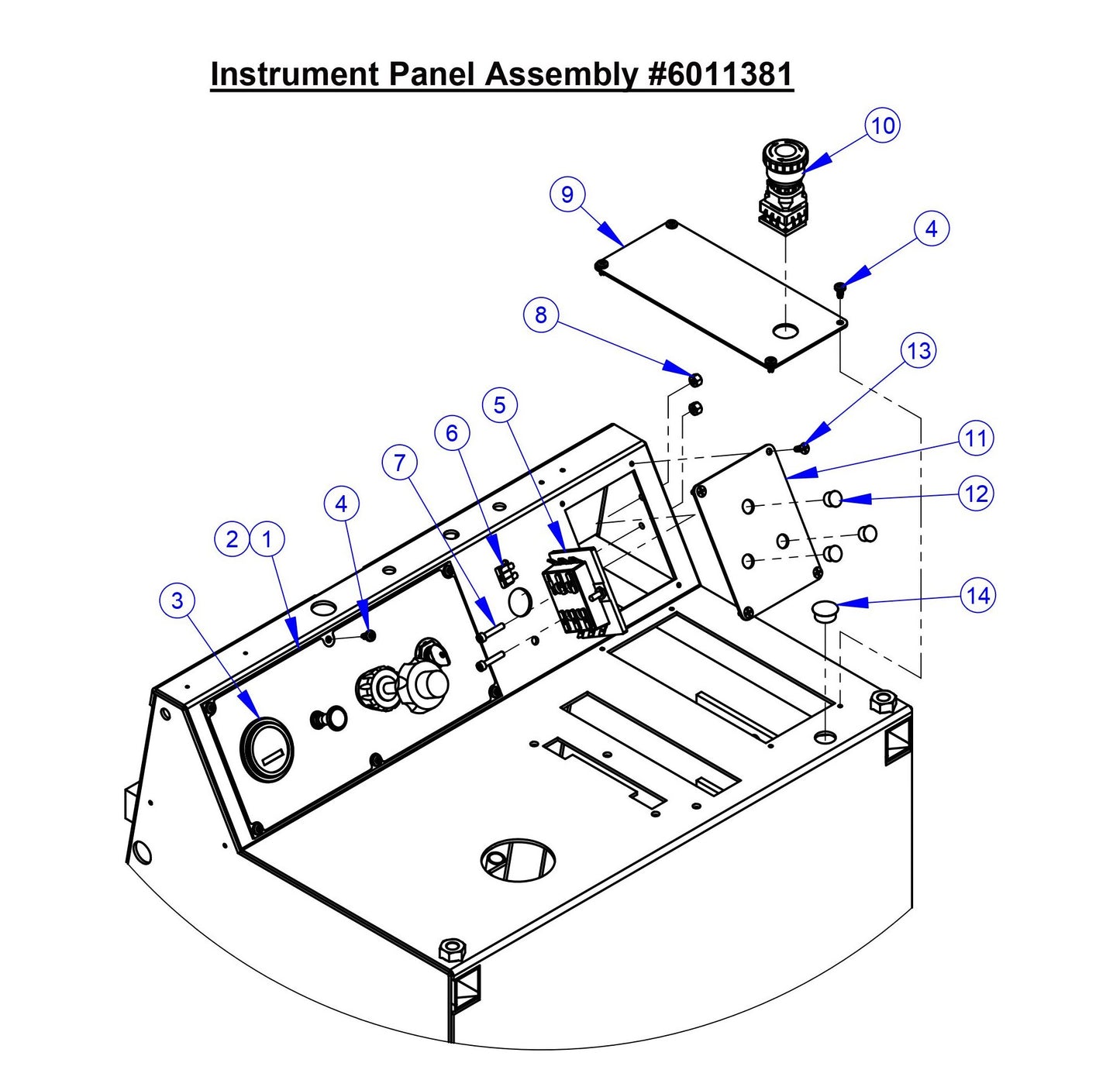

  • CC3535JBVP Instrument Panel Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6011380 Gauge Panel for CC3500J Concrete Saw Core Cut by Diamond Products
$59.00
2
1801382 Instrument Panel Decal for CC3500J Concrete Saw Core Cut by Diamond Products
$59.02
3
2800064 Hour Meter for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$104.97
4
2900021 Tap Screw Pan Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2800388 Fuse Panel, 6 Circuit for CC3535 Concrete Saw Core Cut by Diamond Products
$51.43
6
2800389 Fuse, 10 Amp Red ATO/ATC for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900913 Cap Screw, Soc. Hd., #10-24 x 1" for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900017 Lock Nut #10-24 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
6011024 Hydraulic Pump Cover Plate for CC3535 Concrete Saw Core Cut by Diamond Products
$24.23
10
2801367 E-Stop Switch for CC5555-3 Concrete Saw Core Cut by Diamond Products
$81.10
11
6010098 Switch Plate for CC3535 Concrete Saw Core Cut by Diamond Products
$13.67
12
2500204 Plug 1/2" Hole for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900445 Tap Screw, Flat Hd., #10-24 x 1/2" for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
14
2500463 Plug, 3/4" Hole for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
