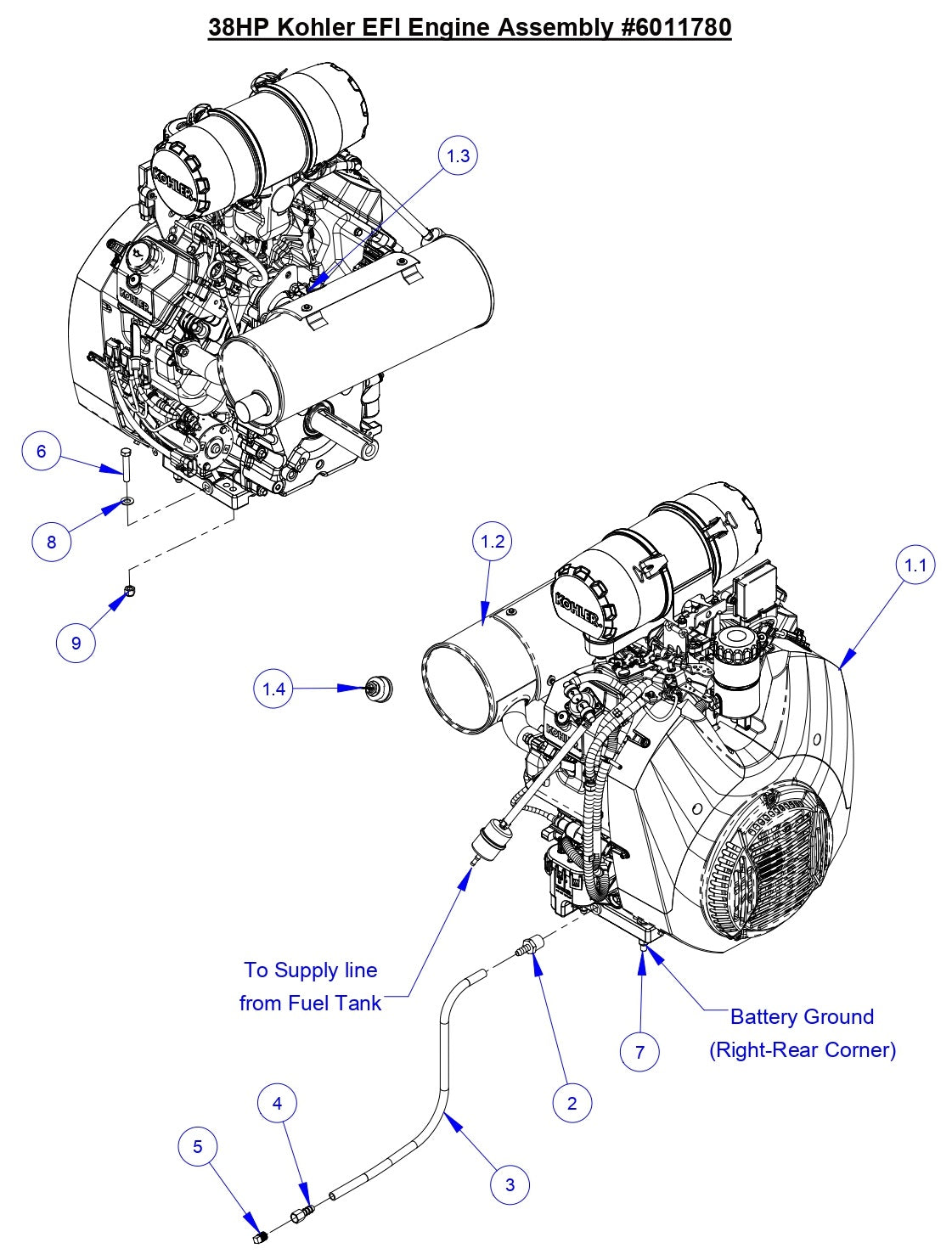

CC3538JK (EFI) 38Hp Kohler EFI Engine Assembly Parts

CC3538JK (EFI) 38Hp Kohler EFI Engine Assembly Parts

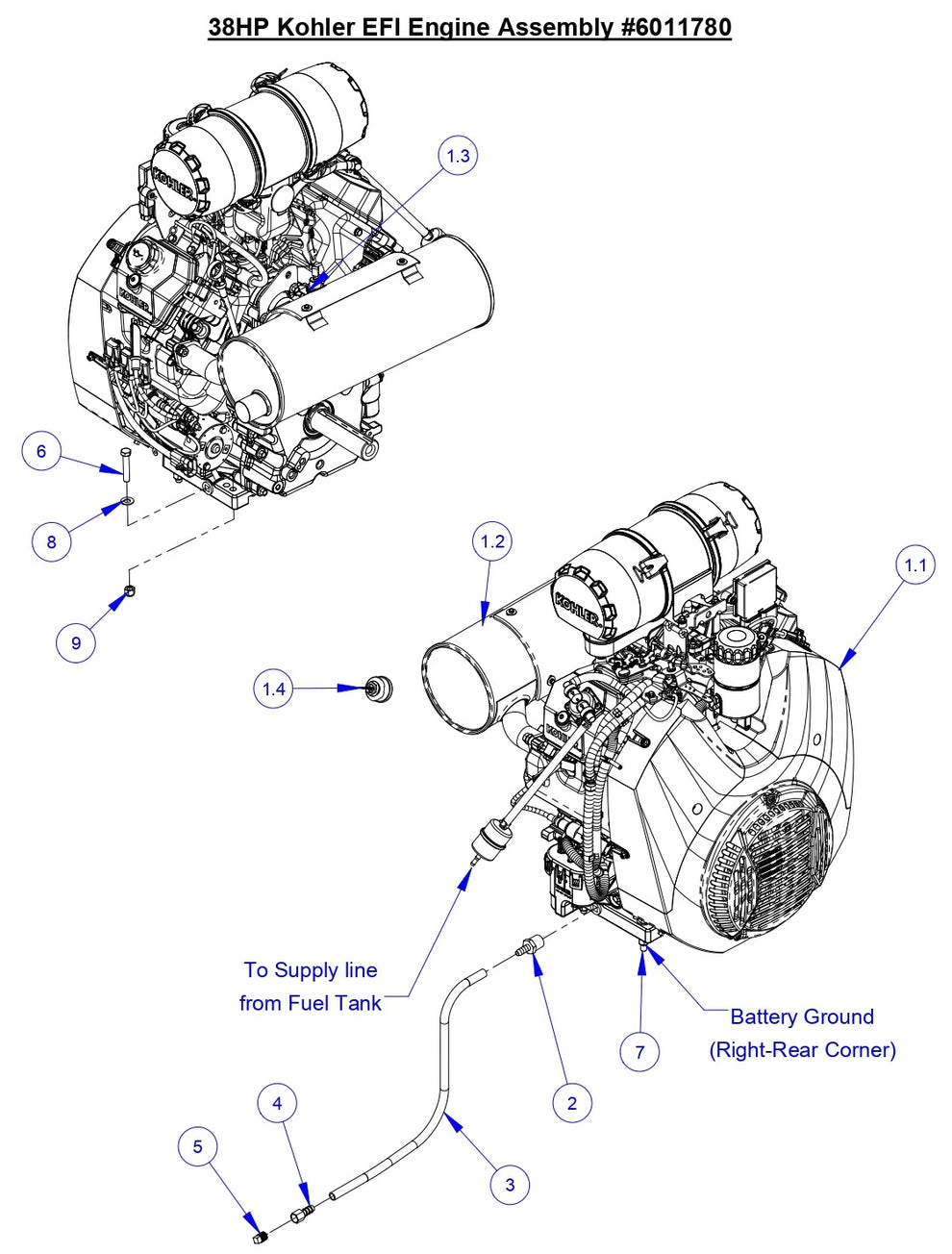

  • CC3538 JK 38Hp Kohler EFI Engine Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
3200234 Fitting, 1/2" MPT to 3/8" Hose Barb for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$15.86
3
6011736 Oil Drain Hose, 3/8" I.D. x 22" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$17.23
4
3200031 Fitting, 1/4" F. Pipe to 3/8" Hose Barb for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$9.41
5
3200206 Pipe Plug, 1/4" NPT for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$6.99
6
2900060 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
7
2900079 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
8
2900014 3/8" SAE Flat Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
1
6058051 Kohler ECH 980 Engine Sub Assembly fits CC3538JK by Core Cut Diamond Products
Call for Price call for price call for price
1.1
2600839 Kohler Command Pro. ECH 980 38 hp Engine fits CC3538JK by Core Cut Diamond Products
$7,715.00
1.2
2703687 Muffler, Kohler ECH 980 38hp EFI fits CC3538JK by Core Cut Diamond Products
$469.26
1.3
2706078 Oil Pressure Sender for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$80.49
1.4
2700892 Ignition Switch w/ Key (27KC) for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$103.31
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
