Ref.
Details
1

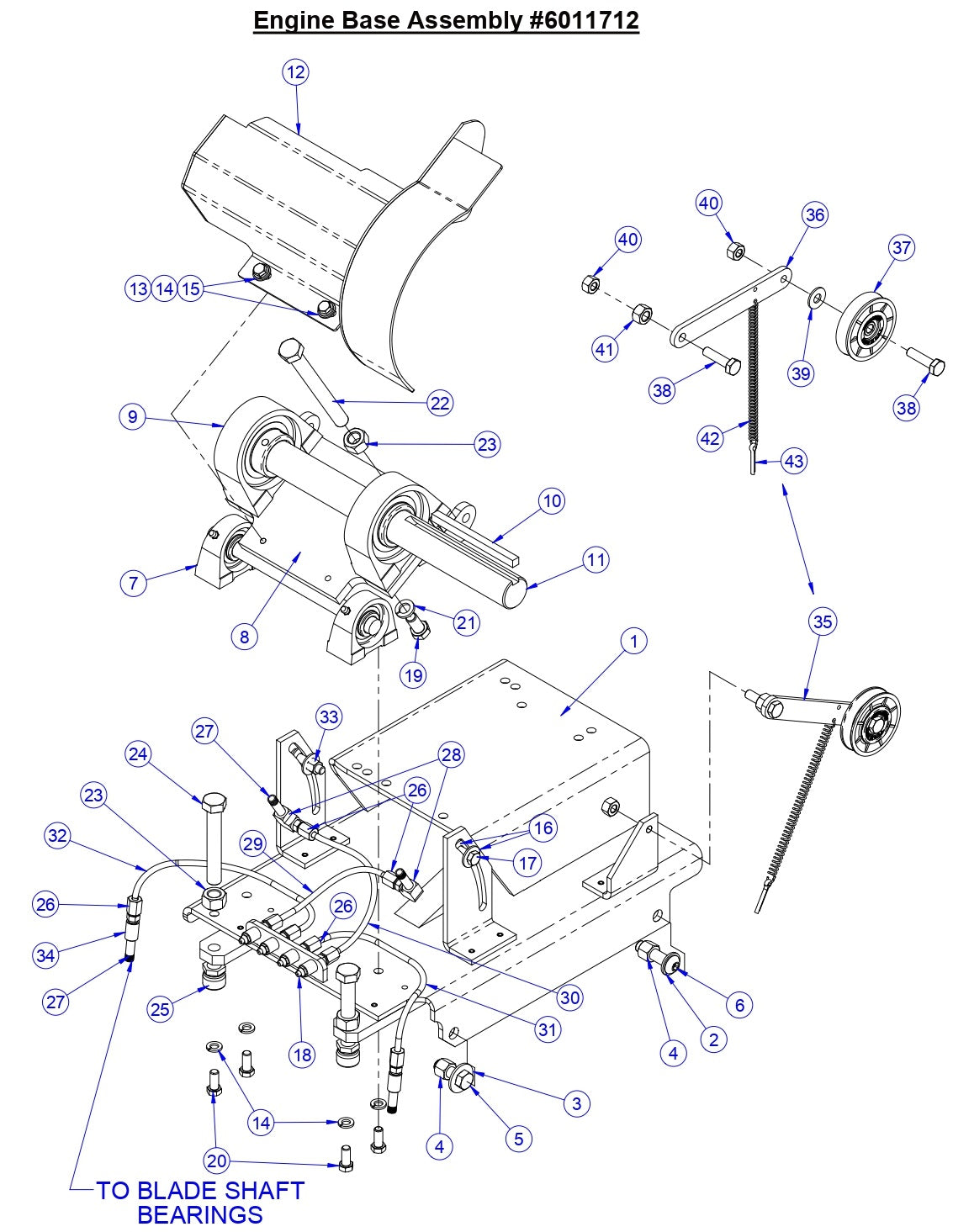

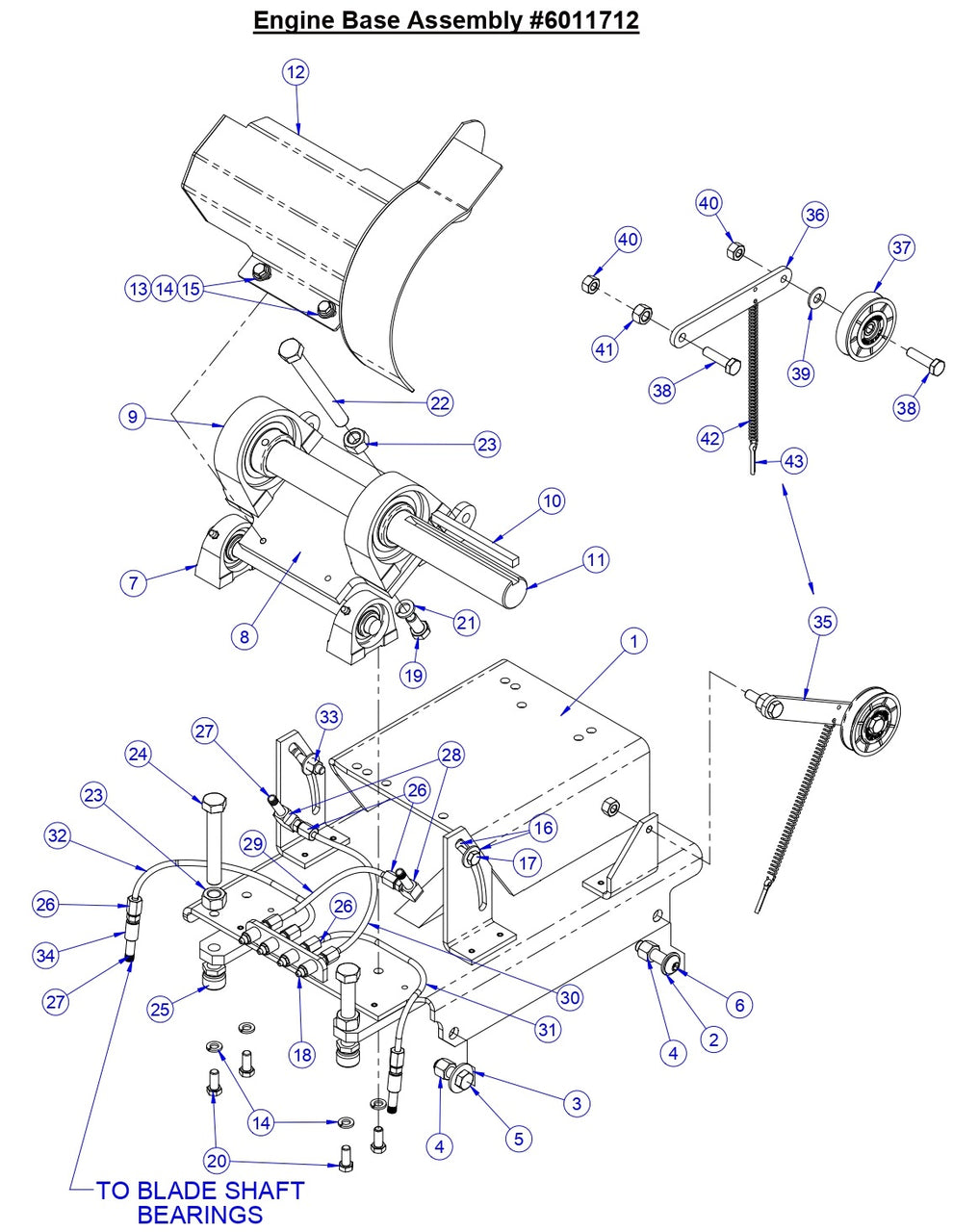

6011707 Engine Base Weldment CC3500J for CC3500J Concrete Saw Core Cut by Diamond Products
Call for Price
2
2900058 Flat Washer, 1/2" SAE for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$2.99
3
2900127 Flat Washer, 1/2" USS for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
4
2900026 Lock Nut, 1/2-13 Nylon for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
5
2900499 Cap Screw, Hex Hd., 1/2-13 x 1-1/2" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
6
2900288 Cap Screw, Button Hd., 1/2-13 x 2" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$3.85
7
2500159 Pillow Block Bearing, 3/4" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$24.98
8
6011710 Pivot Plate, Jack Shaft CC3500J for CC3500J Concrete Saw Core Cut by Diamond Products
Call for Price
9
2500731 Pillow Block Bearing 1-1/2" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$135.60
10
6010034 Key, 3/8" Sq. x 5" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$5.28
11
6011706 Jack Shaft, CC3500J for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$107.38
12
6011708 Belt Guard, Jack Shaft CC3500J for CC3500J Concrete Saw Core Cut by Diamond Products
$199.00
13
2900883 Cap Screw, Hex Hd., 5/16-18 x 5/8" for CC3500J Concrete Saw Core Cut by Diamond Products
Call for Price
14
2900006 Lock Washer, 3/8" Split for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
15
2900014 Flat Washer, 3/8" SAE for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
17
2900029 Cap Screw, Hex Hd., 3/8-16 x 1-1/2" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
18
2900062 Grease Fitting, 1/8" NPT for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
19
2900086 Cap Screw, Hex Hd., 1/2-13 x 1" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
20
2900621 Cap Screw, Hex Hd., 3/8-16 x 7/8" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
21
2900084 Lock Washer, 1/2" Split for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
22
2900104 Tap Bolt, Hex Hd., 5/8-11 x 6" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$8.16
23
2900112 Hex Nut, 5/8-11 for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
24
2900492 Tap Bolt, Hex Hd., 5/8-11 x 4" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$6.17
25
2900446 Swivel Pad Nut, 5/8-11 for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$28.40
26
3201276 1/4" Compression Tube Fitting for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$11.51
27
3201462 Nipple, 1/8" NPT X 1-1/2" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$7.64
28
3200154 Pipe Elbow, 1/8" NPT Female for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$9.55
29
6011715 Grease Tube, 1/4" x 7" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$37.34
30
6011672 Grease Tube, 1/4" x 8" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$41.58
31
6011673 Grease Tube, 1/4" x 14" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$61.63
32
6011748 Grease Tube, 1/4" x 15" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$69.37
33
2900018 Locknut, 3/8-16, Nylon for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
34
3200388 1/8" Pipe Coupling for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$5.11
35
6011765 Idler Assembly for CC3500J Concrete Saw Core Cut by Diamond Products
Call for Price
36
6048085 Idler Arm for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$17.59
37
2500074 Idler Pulley 3" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$46.84
38
2900316 Cap Screw, Hex Hd., M10-1.5 x 40mm for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
40
2900304 Lock Nut, M10-1.5 Nylon Insert for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
41
2900037 Hex Nut, 1/2-13 for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
42
2500195 Spring, 3/8" x 7-3/4" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$13.44
43
2900055 Cotter Pin, 3/16" x 1" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
16
2900473 Flat Washer, 3/8" USS for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
39
2900473 Flat Washer, 3/8" USS for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$1.99
