CC3538JK (EFI) Hydraulic Cylinder Assembly Parts

CC3538JK (EFI) Hydraulic Cylinder Assembly Parts

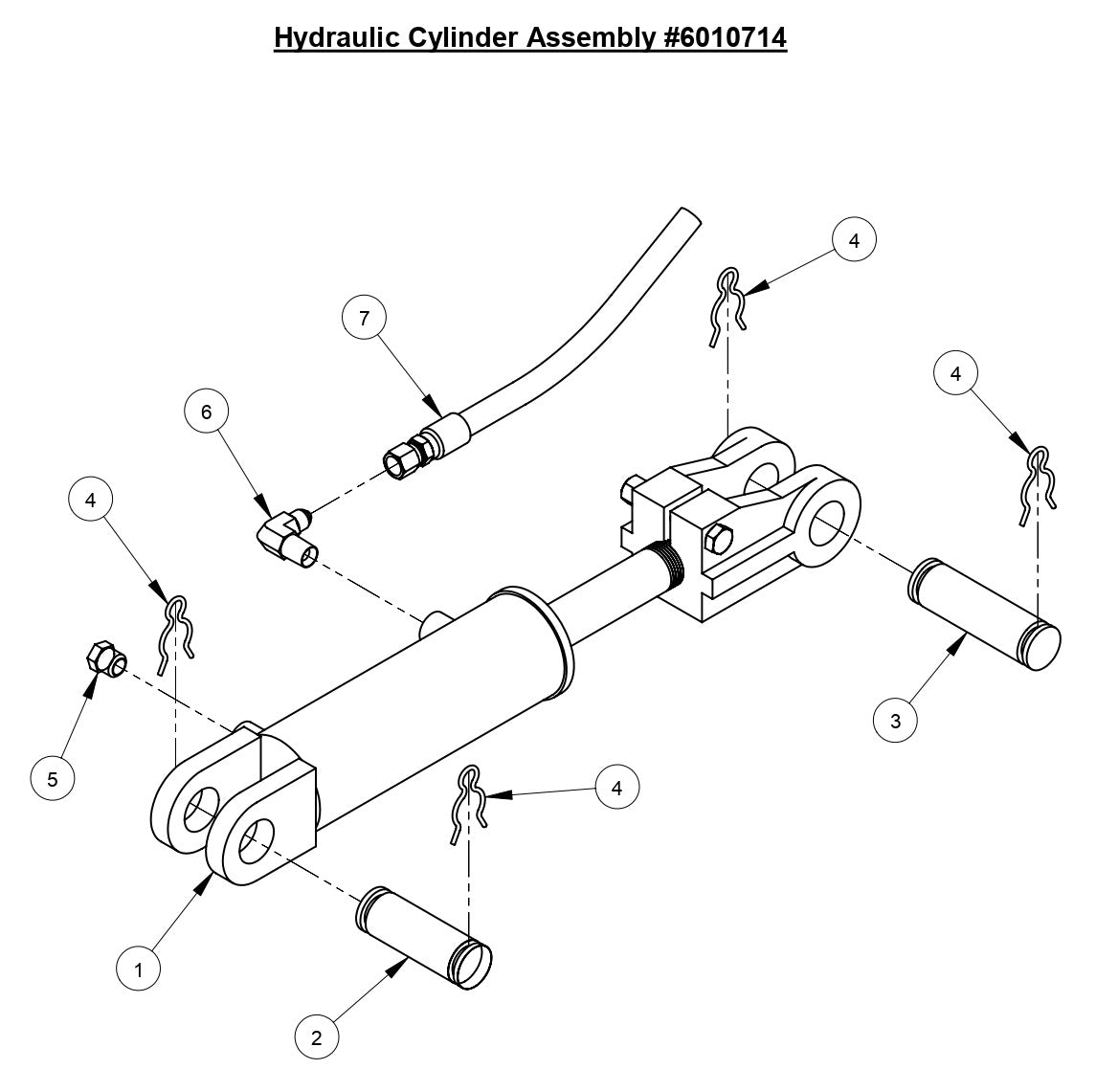

  • CC3538 JK Hydraulic Cylinder Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2500177 Hydraulic Cylinder for CC3500J Concrete Saw Core Cut by Diamond Products
$374.22
2
6010031 Cylinder Pin, 3" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$21.64
3
6010119 Cylinder Pin, 3-1/2" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$22.90
4
2900064 Hair Pin Cotter, 3/4" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$2.99
5
3200067 Cylinder Breather, 1/4" NPT for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$11.33
6
3200057 Elbow, 1/4" M. Pipe to 1/4" M. JIC for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$9.37
7
3200054 Hose Assembly, 32" Long for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$78.52
View full details
