CC3700E, CC3725E, CC3730E, CC3740E 25hp Motor Mount Assembly Parts

CC3700E, CC3725E, CC3730E, CC3740E 25hp Motor Mount Assembly Parts

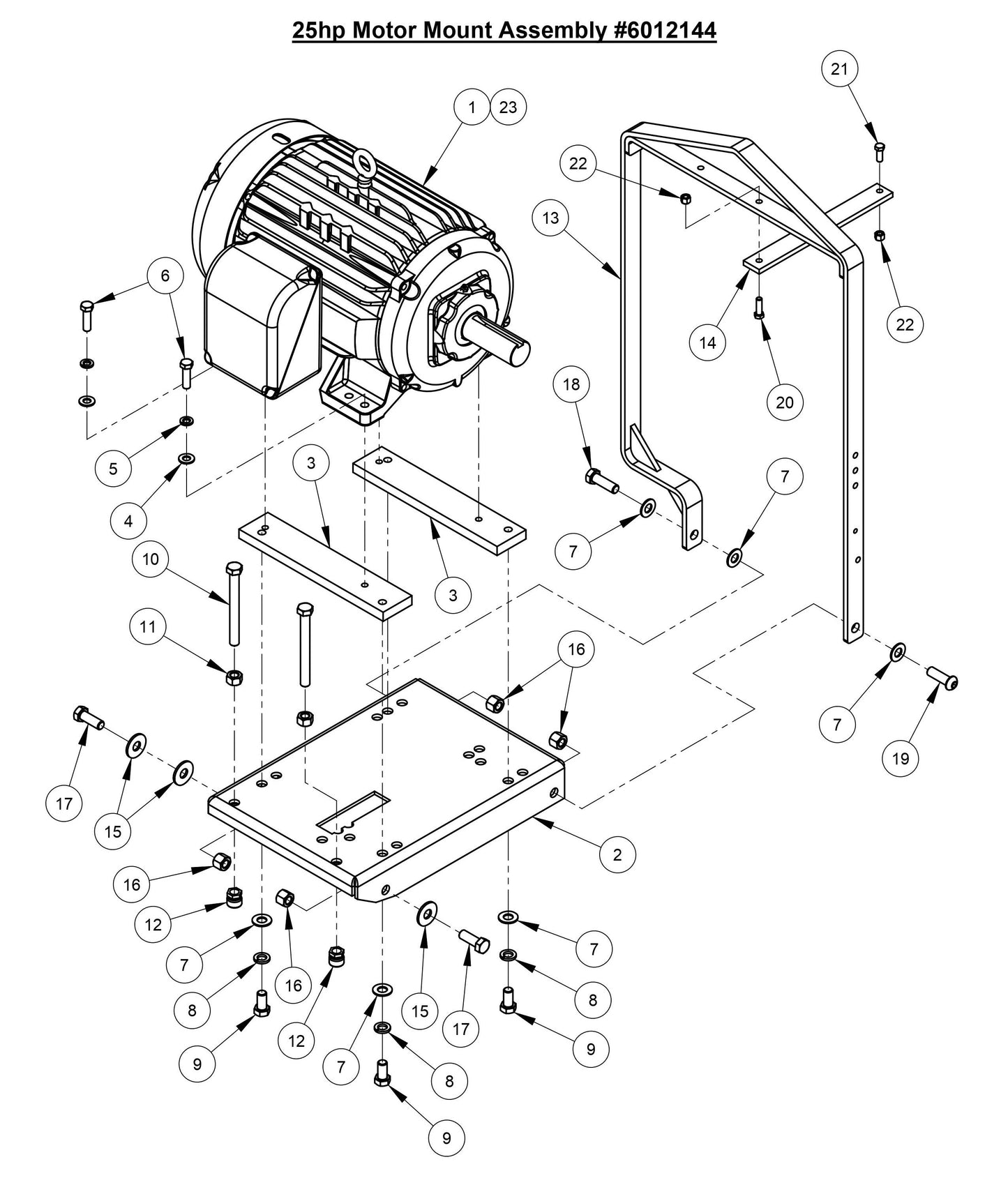

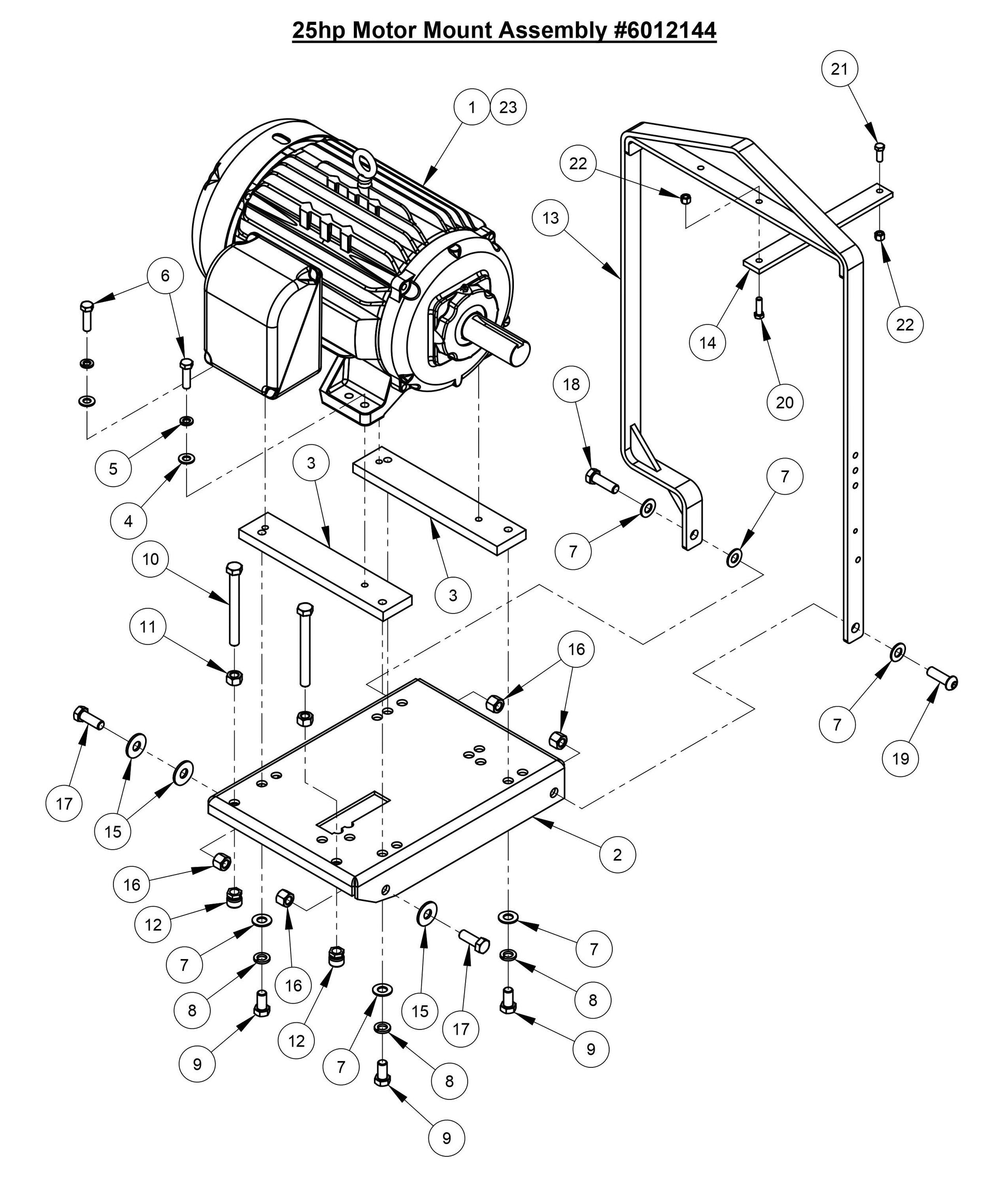

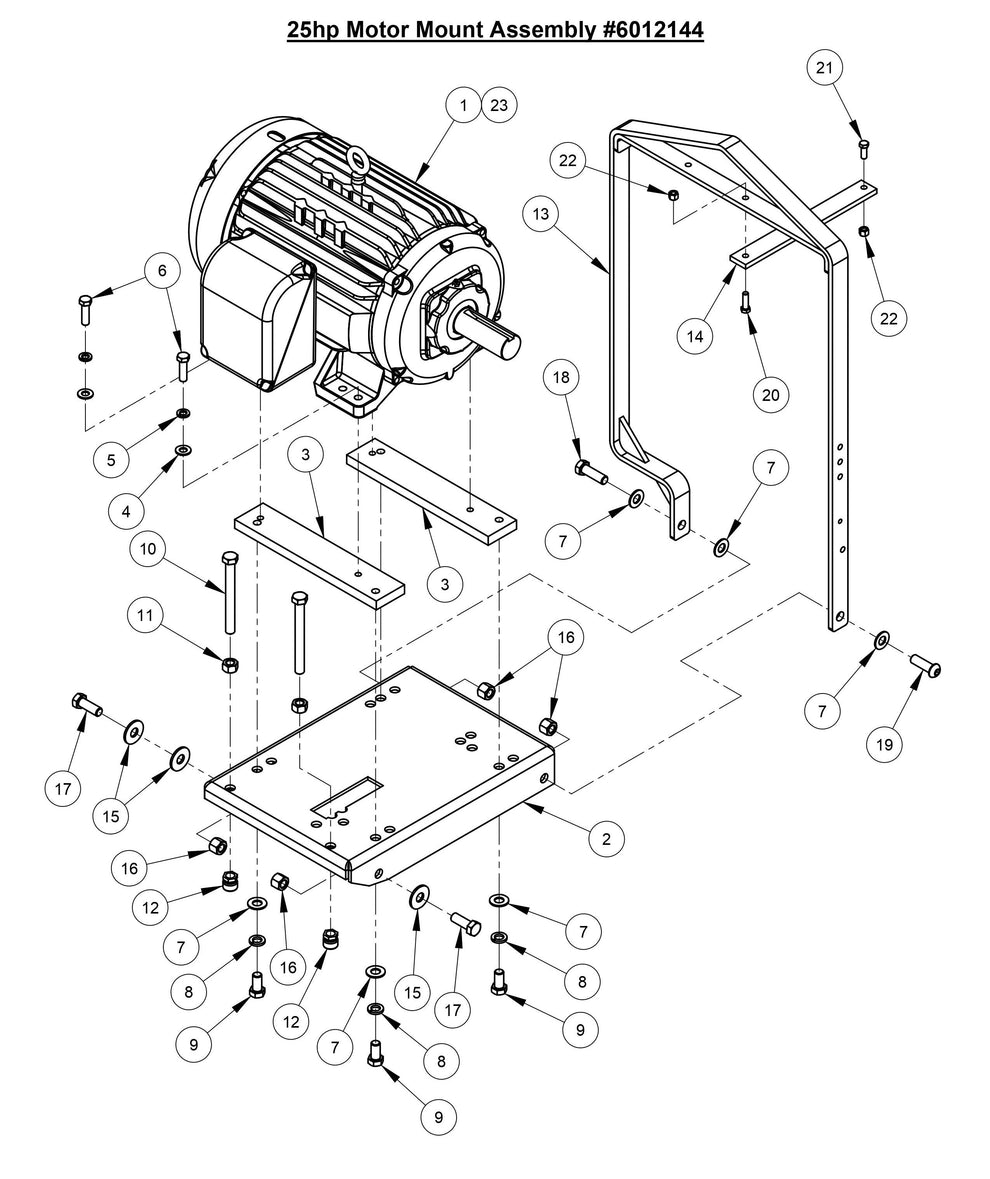

  • CC3700E 25HP Motor Mount Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
6010011 Engine Base Weldment for CC6540E CONCRETE SAW Core Cut by Diamond Products
$231.66
4
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
5
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900139 Cap Screw, Hex Hd., 1/2-13 x 1- 3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
7
2900002 Flat Washer 5/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900113 Lock Washer 5/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900512 Cap Screw, Hex Hd., 5/8-11 x 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
10
2900104 Tap Bolt, Hex Hd., 5/8-11 x 6" for CC3500J Concrete Saw Core Cut by Diamond Products
$14.02
11
2900112 Hex Nut, 5/8-11 for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
12
2900446 Swivel Pad Nut, 5/8-11 for CC3500J Concrete Saw Core Cut by Diamond Products
$30.86
13
6010012 Frame Lift for CC6540E CONCRETE SAW Core Cut by Diamond Products
$949.41
14
6010013 Frame Lift Brace for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$32.25
15
2900721 Flat Washer, 5/8" USS Hardened for CC6540E CONCRETE SAW Core Cut by Diamond Products
$4.99
16
2900135 Lock Nut, 5/8-11 Nylon for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
17
2900147 Cap Screw, Hex Hd., 5/8-11 x 1-3/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6.99
18
2900136 Cap Screw, Hex Hd., 5/8-11 x 2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6.70
19
2900286 Cap Screw, Button Hd., 5/8-11 x 2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$11.79
20
2900013 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
21
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
22
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
23
2600133 Motor, 25hp Leeson fits CC3700E by Core Cut Diamond Products
$5,438.07
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
