CC3700E, CC3725E, CC3730E, CC3740E Free Wheeling Clutch Assembly Parts

CC3700E, CC3725E, CC3730E, CC3740E Free Wheeling Clutch Assembly Parts

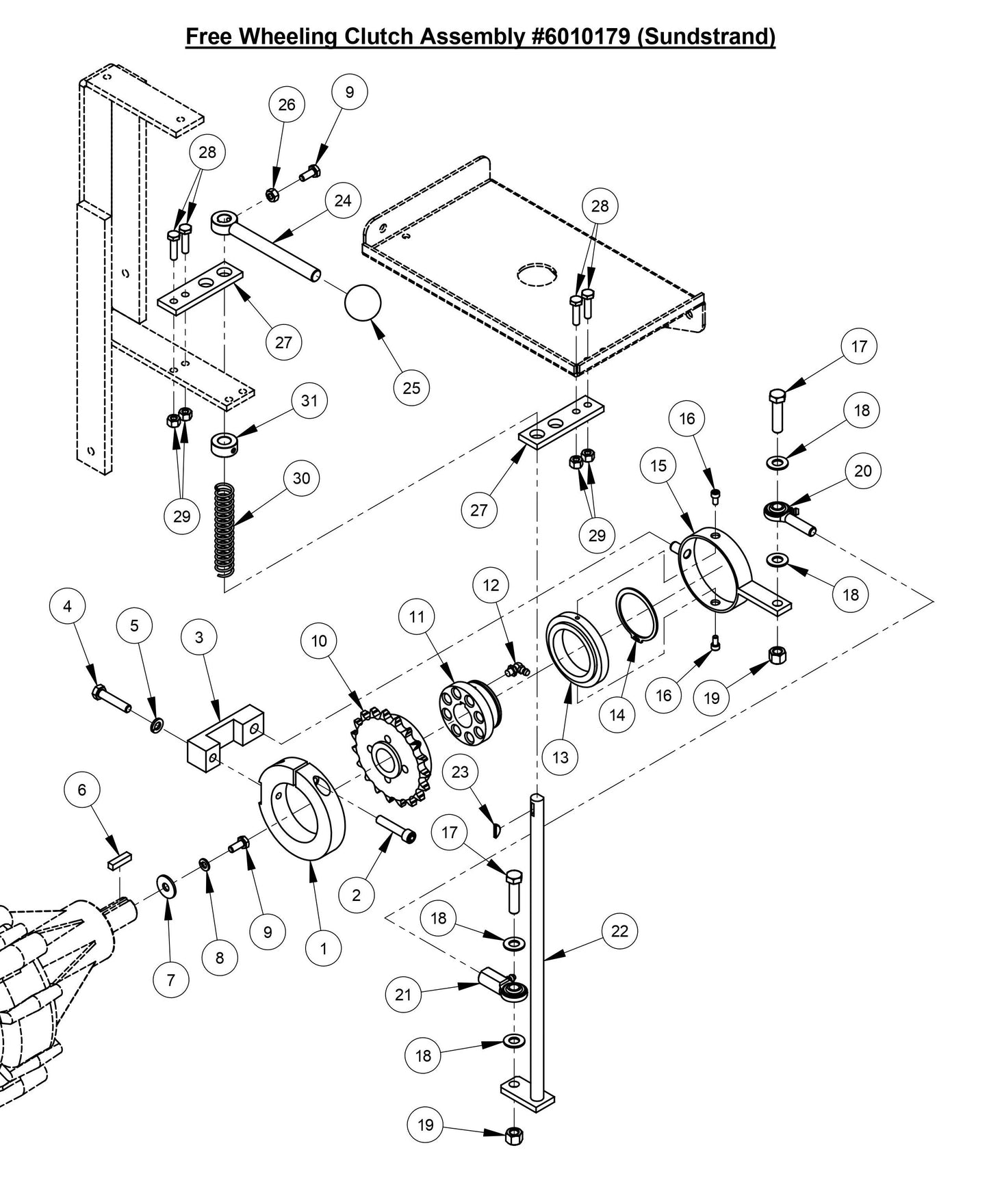

  • CC3700E Free Wheeling Clutch Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6011043 Clutch Clamp for CC6540E CONCRETE SAW Core Cut by Diamond Products
$134.64
2
2900233 Cap Screw, Soc. Hd., 5/16-18 x 1-1/2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
3
6011044 Clutch Brace for CC6540E CONCRETE SAW Core Cut by Diamond Products
$45.00
4
2900508 Cap Screw, Hex Hd., 5/16-18 x 1-1/2" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
5
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
6011089 Key, 1/4" Sq. x 1" Long for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
7
2900383 Fender Washer M8 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
8
2900024 Lock Washer 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900023 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
6012055 Clutch Sprocket Assembly, 19 Tooth for CC6540E CONCRETE SAW Core Cut by Diamond Products
$160.80
11
6011088 Clutch Hub for CC6540E CONCRETE SAW Core Cut by Diamond Products
$117.43
12
2900061 Grease Fitting, 1/4-28 x 90 Degree for CC6540E CONCRETE SAW Core Cut by Diamond Products
$4.99
13
6011041 Clutch Ring with Bearing for CC6540E CONCRETE SAW Core Cut by Diamond Products
$284.13
14
2500374 Retaining Ring, 2" External for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6.99
15
6011042 Clutch Yoke for CC6540E CONCRETE SAW Core Cut by Diamond Products
$62.56
16
2900117 Cap Screw, Soc. Hd., #10-24 x 3/8" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
17
2900029 Cap Screw, Hex Hd., 3/8-16 x 1-1/2" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
18
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
19
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
20
2500886 Rod End, 3/8-24 Male for CC6540E CONCRETE SAW Core Cut by Diamond Products
$32.28
21
2500152 Rod End, 3/8-24 Female for CC6540E CONCRETE SAW Core Cut by Diamond Products
$30.55
22
6011050 Engagement Lever for CC6540E CONCRETE SAW Core Cut by Diamond Products
$75.06
23
2900063 Woodruff Key #405, 1/8" x 5/8" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
24
6011051 Engagement Handle for CC6540E CONCRETE SAW Core Cut by Diamond Products
$29.34
25
2400007 Knob, 1/2-20 x 1-3/8" Dia. for CC6540E CONCRETE SAW Core Cut by Diamond Products
$20.16
26
2900125 1/4-20 Hex Nut for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
27
6011099 Lever Guide for CC6540E CONCRETE SAW Core Cut by Diamond Products
$40.54
28
2900008 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
29
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
30
2500375 Compression Spring for CC6540E CONCRETE SAW Core Cut by Diamond Products
$55.96
31
2500007 Set Collar, 1/2" with Set Screw for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6.99
