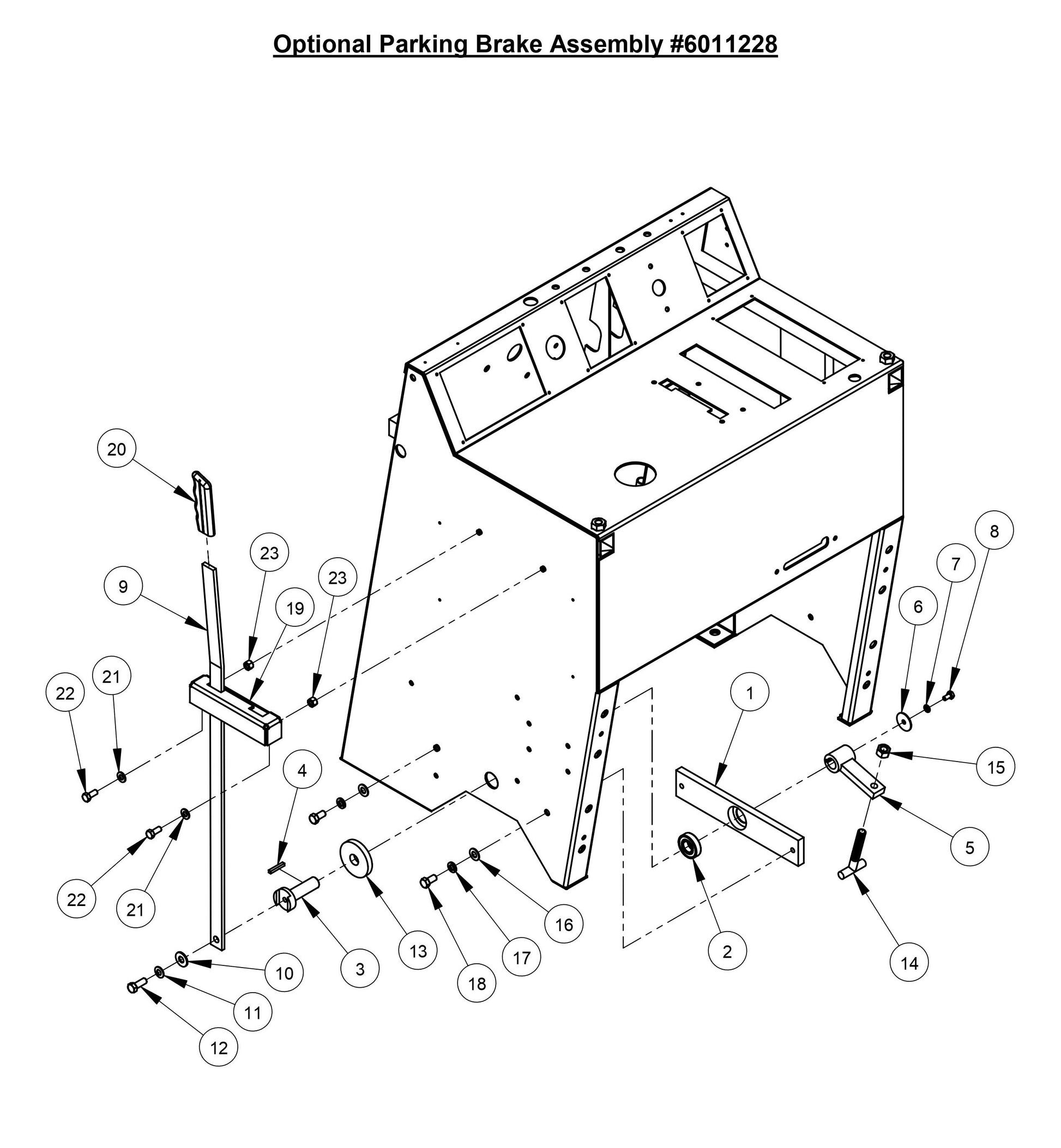

CC3700E, CC3725E, CC3730E, CC3740E Optional Parking Brake Assembly Parts

CC3700E, CC3725E, CC3730E, CC3740E Optional Parking Brake Assembly Parts

  • CC3700E Optional Parking Brake Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6011229 Bearing Housing Bar for CC3500J Concrete Saw Core Cut by Diamond Products
$69.58
2
2501664 Ball Bearing, 3/4" x 1-5/8" x 7/16" for CC3500J Concrete Saw Core Cut by Diamond Products
$13.24
3
6011230 Pivot Pin for CC3500J Concrete Saw Core Cut by Diamond Products
$44.25
4
6048229 Key, 3/16" Sq. x 1-1/4" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$2.99
5
6011231 Pivot Arm for CC3500J Concrete Saw Core Cut by Diamond Products
$77.61
6
2900083 Fender Washer 1/4" x 1-1/4" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900024 Lock Washer 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
6011232 Brake Lever for CC3500J Concrete Saw Core Cut by Diamond Products
$38.40
10
2900473 Flat Washer, 3/8" USS for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
11
2900474 Belleville Washer, 3/8" for CC6561 Concrete Saw Core Cut by Diamond Products
$7.46
12
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
6011234 Friction Disc, 3/4" x 2-1/2" x 3/8" for CC6561 Concrete Saw Core Cut by Diamond Products
$16.67
14
2900632 T-Bolt, 1/2-13 for CC6540E CONCRETE SAW Core Cut by Diamond Products
$37.66
15
2900037 Hex Nut, 1/2-13 for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
16
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
17
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
19
6011233 Lever Gate for CC6540E CONCRETE SAW Core Cut by Diamond Products
$71.23
20
2500002 Lever Grip for CC3500J Concrete Saw Core Cut by Diamond Products
$21.52
21
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
22
2900019 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
23
2900039 Lock Nut 5/16-18 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900082 Cap Screw, Hex Hd., 1/4-20 x 1/2" fits CC4144DXL by Core Cut Diamond Products
$6.00
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
