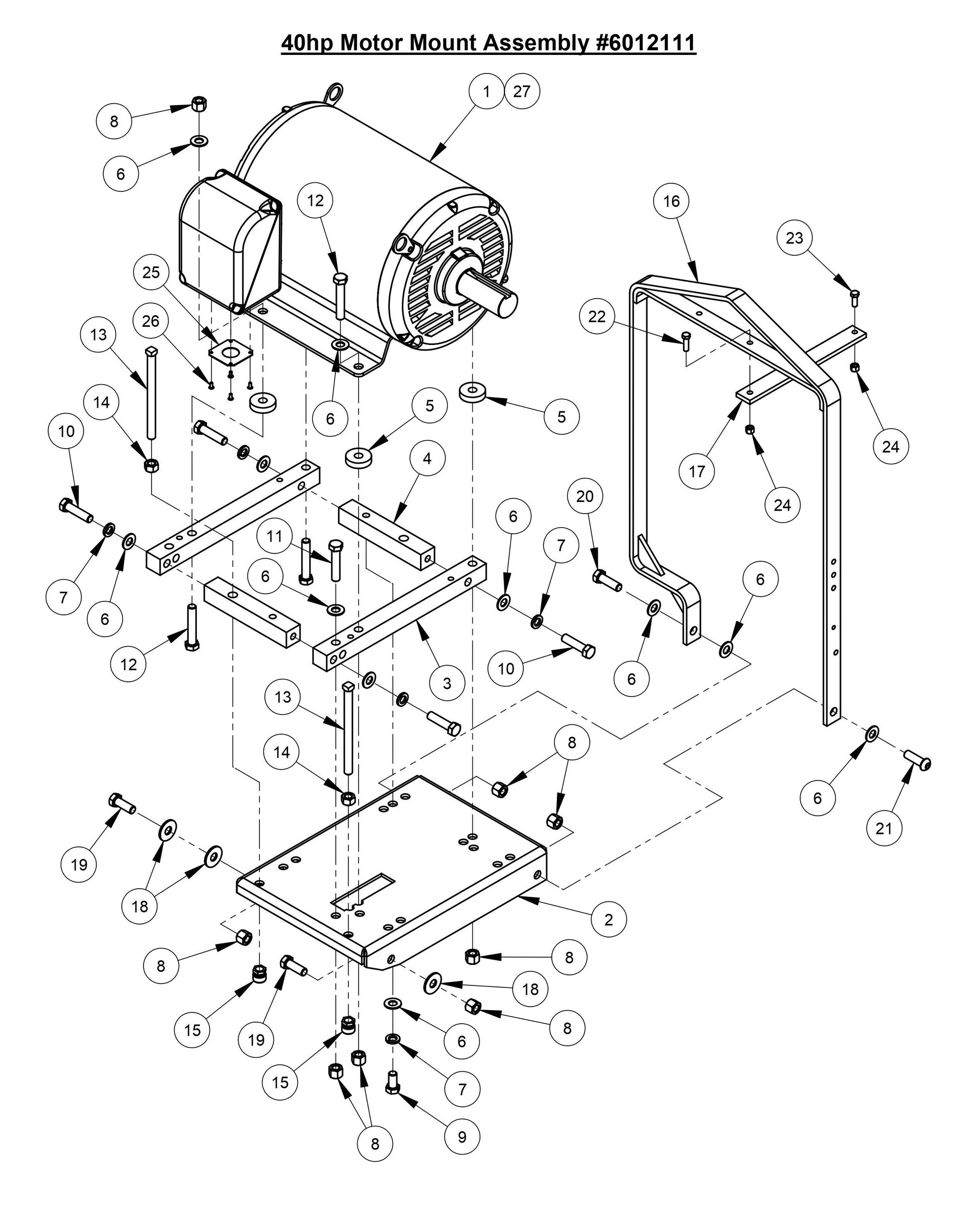

CC3700TE, CC3730TE, CC3740TE 40hp Motor Mount Assembly Parts

CC3700TE, CC3730TE, CC3740TE 40hp Motor Mount Assembly Parts

  • CC3700TE 40HP Motor Mount Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600185 Motor, 40hp Lincoln for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6,667.20
2
6010011 Engine Base Weldment for CC6540E CONCRETE SAW Core Cut by Diamond Products
$231.66
3
6012034 Motor Spacer for CC6540E CONCRETE SAW Core Cut by Diamond Products
$117.00
4
6012035 Motor Connect Spacer for CC6540E CONCRETE SAW Core Cut by Diamond Products
$81.40
6
2900002 Flat Washer 5/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900113 Lock Washer 5/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900135 Lock Nut, 5/8-11 Nylon for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
9
2900512 Cap Screw, Hex Hd., 5/8-11 x 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
10
2900527 Cap Screw, Hex Hd., 5/8-11 x 2-1/2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$7.73
12
2900099 Cap Screw, Hex Hd., 5/8-11 x 3-1/2" for CC7874XL Concrete Saw Core Cut by Diamond Products
$6.96
13
2900385 Set Screw, Sq. Hd., 5/8-11 x 8" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$22.60
14
2900112 Hex Nut, 5/8-11 for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
16
6010012 Frame Lift for CC6540E CONCRETE SAW Core Cut by Diamond Products
$949.41
17
6010013 Frame Lift Brace for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$32.25
18
2900721 Flat Washer, 5/8" USS Hardened for CC6540E CONCRETE SAW Core Cut by Diamond Products
$4.99
19
2900147 Cap Screw, Hex Hd., 5/8-11 x 1-3/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6.99
20
2900136 Cap Screw, Hex Hd., 5/8-11 x 2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6.70
21
2900286 Cap Screw, Button Hd., 5/8-11 x 2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$11.79
23
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
24
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
25
2500676 Motor Cord Adapter Plate for CC6540E CONCRETE SAW Core Cut by Diamond Products
$12.91
26
2900201 Rivet 3/16" Dia. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
27
2600250 Motor, 40hp Lincoln (575 Volt) for CC6540E CONCRETE SAW Core Cut by Diamond Products
Call for Price call for price call for price
5
Diamond Products SPACER 1/2" 6012108
$21.69
11
2900195 Cap Screw, Hex Hd., 5/8-11 x 3" fits CC3700E by Core Cut Diamond Products
$6.92
15
2900446 Swivel Pad Nut, 5/8-11 for CC3500J Concrete Saw Core Cut by Diamond Products
$30.86
22
2900013 Cap Screw, Hex Hd., 3/8-16 x 1-1/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
