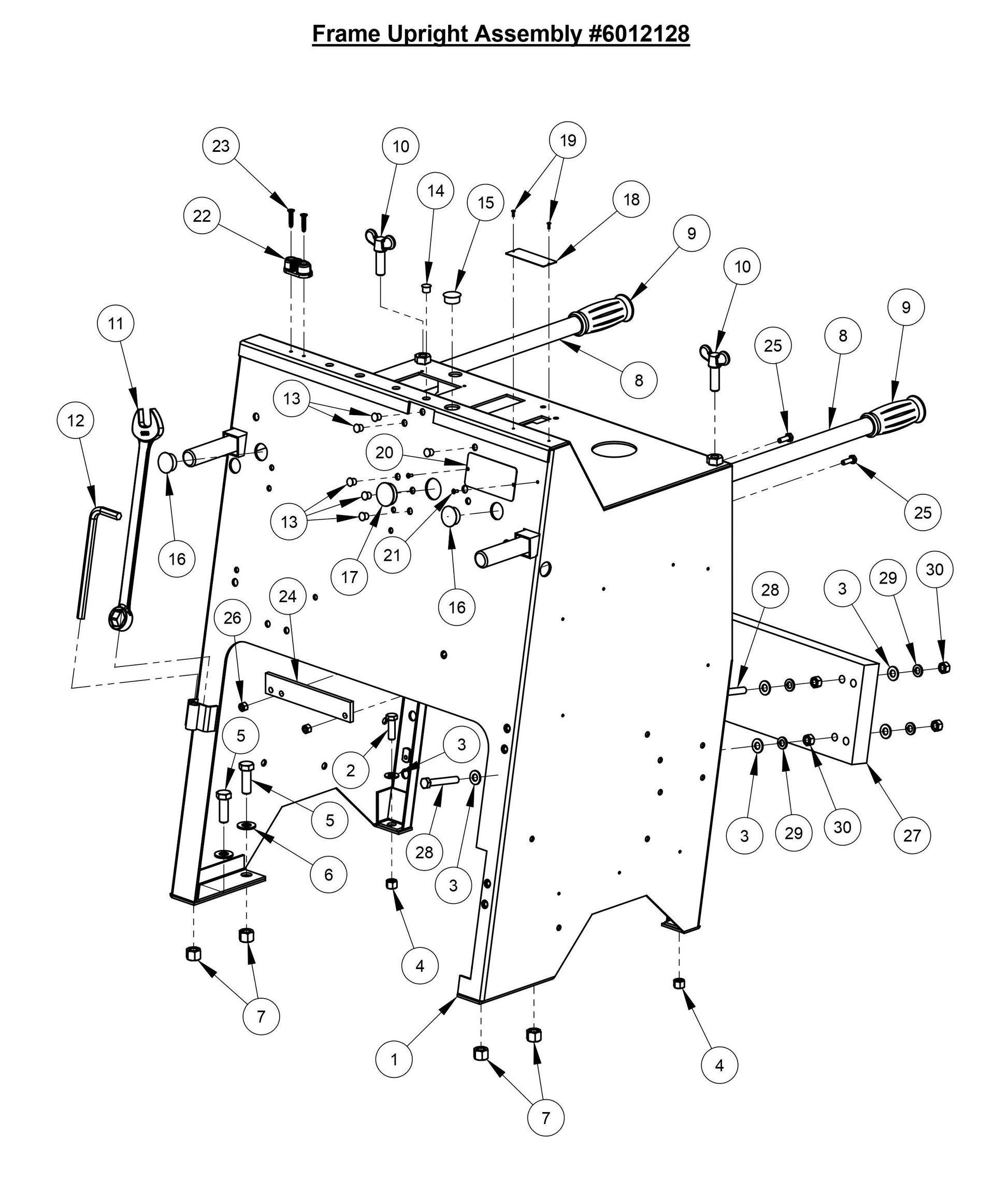

CC3700TE, CC3730TE, CC3740TE Frame Upright Assembly Parts

CC3700TE, CC3730TE, CC3740TE Frame Upright Assembly Parts

  • CC3700TE Frame Upright Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
7
2900026 Lock Nut 1/2-13 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
6010014 Handle Bar, 36" Long for CC3500J Concrete Saw Core Cut by Diamond Products
$60.60
9
2500636 Handle Grip for CC5555-3 Concrete Saw Core Cut by Diamond Products
$32.64
10
2900430 Hand Lock Knob, 1/2-13 x 1-1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$23.67
11
2503704 Wrench, 15/16" Combination for CC3500J Concrete Saw Core Cut by Diamond Products
$62.41
13
2500462 Plug, 3/8" Hole for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
14
2501287 Plug, 7/16" Hole for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
15
2500549 Plug, 7/8" Hole for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
17
2501146 Plug, 1-1/4" Hole for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
18
1800169 Serial Number Plate US US for CC5555-3 Concrete Saw Core Cut by Diamond Products
$21.24
19
2900096 Rivet, 3/32" Dia. for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
20
1800377 Serial Number Plate, CE for CC6540E CONCRETE SAW Core Cut by Diamond Products
$24.75
21
2900287 Rivet, 1/8" Dia. for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
22
2501427 Cable Cleat for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$100.02
23
2900483 Tap Screw, Flat Hd., #10-24 x 1" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
24
6010166 Gate Cover Bar for CC6540E CONCRETE SAW Core Cut by Diamond Products
$25.13
25
2900144 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
26
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
27
6013042 Saw Weight, 55 Pound for CC6540E CONCRETE SAW Core Cut by Diamond Products
$278.19
28
2900521 Tap Bolt, Hex Hd., 3/8-16 x 2-1/2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
29
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
30
2900033 Hex Nut 3/8-16 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
Diamond Products KEY, 3/8" HEX ALLEN "L" 2501923
$10.85
1
6012138 Frame Upright Weldment fits CC3700E by Core Cut Diamond Products
$1,552.32
2
2900013 Cap Screw, Hex Hd., 3/8-16 x 1-1/4" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
5
2900499 Cap Screw, Hex Hd., 1/2-13 x 1-1/2" for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$3.99
16
2500489 Plug, 1" Hole fits CC3700E by Core Cut Diamond Products
$2.99
