CC3700TE, CC3730TE, CC3740TE Front Axle Assembly Parts

CC3700TE, CC3730TE, CC3740TE Front Axle Assembly Parts

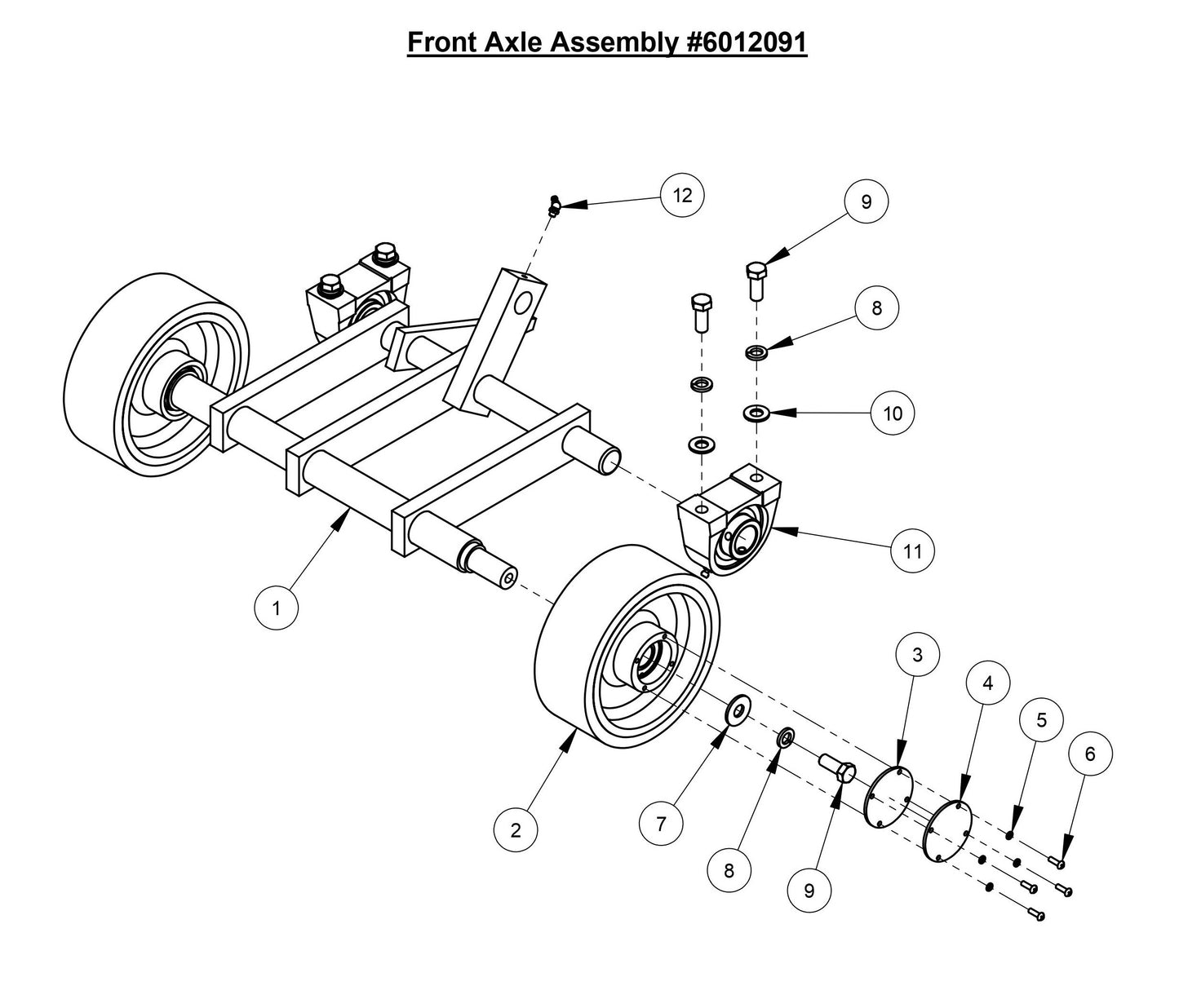

  • CC3700TE Front Axle Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
6010581 Wheel Assembly, 8" Front for CC6540E CONCRETE SAW Core Cut by Diamond Products
$325.71
3
2501393 Wheel Cover Gasket for CC6540E CONCRETE SAW Core Cut by Diamond Products
$8.93
4
6010536 Wheel Cover for CC6540E CONCRETE SAW Core Cut by Diamond Products
$13.47
5
2900038 Lock Washer #10 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
11
2500158 Pillow Block Bearing 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$47.00
12
2900184 Grease Fitting, 1/4" NPT x 45 degree for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
1
Diamond Products FRONT AXLE WELDMENT FOR CC3700 SAW (NEW WHEELS) 6012092
$395.01
6
2900159 Machine Screw, Rd. Hd., #10-24 x 5/8" for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
7
2900127 Flat Washer, 1/2" USS for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
9
2900025 Cap Screw, Hex Hd., 1/2-13 x 1-1/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
