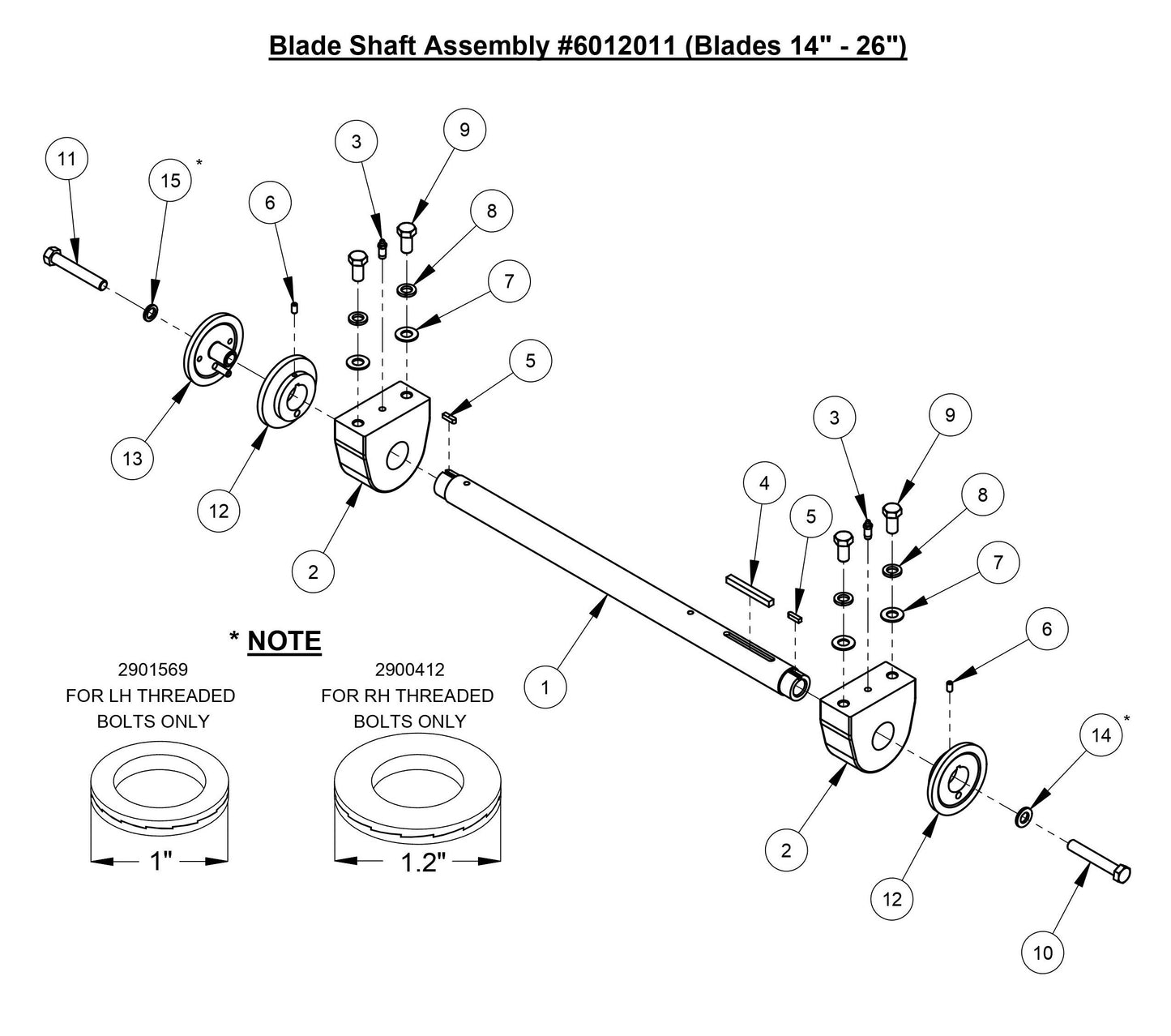

CC3728 Blade Shaft Assembly (Blades 14''-26'') Parts

CC3728 Blade Shaft Assembly (Blades 14''-26'') Parts

  • CC3728 Blade Shaft Assembly (Blades 14''-26'')
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6012003 Blade Shaft fits CC3700E by Core Cut Diamond Products
$728.64
2
2500151 Blade Shaft Bearing, 1-3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$525.69
3
2900198 Grease Fitting, 1/8" NPT x 1-1/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6.99
4
6012065 Key, 3/8" Sq. x 3-1/2 fits CC3700E by Core Cut Diamond Products
$6.99
5
6010040 Key, 1/4" Sq. x 15/16" for CC3500J Concrete Saw Core Cut by Diamond Products
$10.00
6
2900418 Set Screw, Soc. Hd., 5/16-18 x 5/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
7
2900002 Flat Washer 5/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900113 Lock Washer 5/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900512 Cap Screw, Hex Hd., 5/8-11 x 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
10
2900146 Cap Screw, Hex Hd., 5/8-11 x 4" for CC3500J Concrete Saw Core Cut by Diamond Products
$15.86
11
2900130 Cap Screw, Hex Hd., 5/8-11 x 4" LH for CC3500J Concrete Saw Core Cut by Diamond Products
$30.88
12
6010036 Inner Flange 4-1/2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$87.50
13
6010037 Outer Flange 4-1/2" with Pin for CC6540E CONCRETE SAW Core Cut by Diamond Products
$126.72
13
2900197 Dowel Pin, 3/8" Dia. x 2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6.99
15
2901569 Lock Washer, Wedge 5/8" LH for CC6540E CONCRETE SAW Core Cut by Diamond Products
$15.10
14
2900412 Lock Washer, Wedge 5/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$12.31
