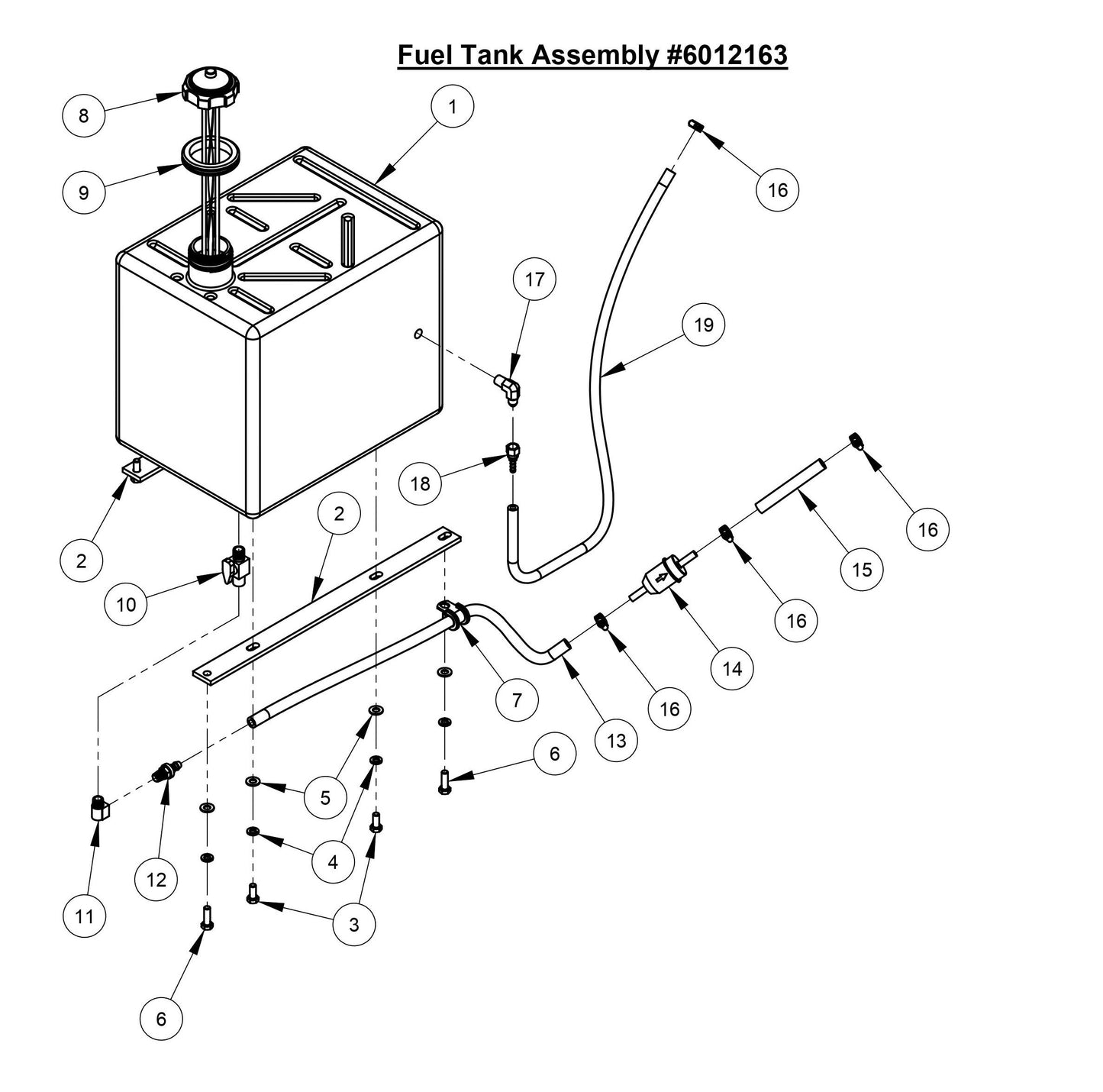

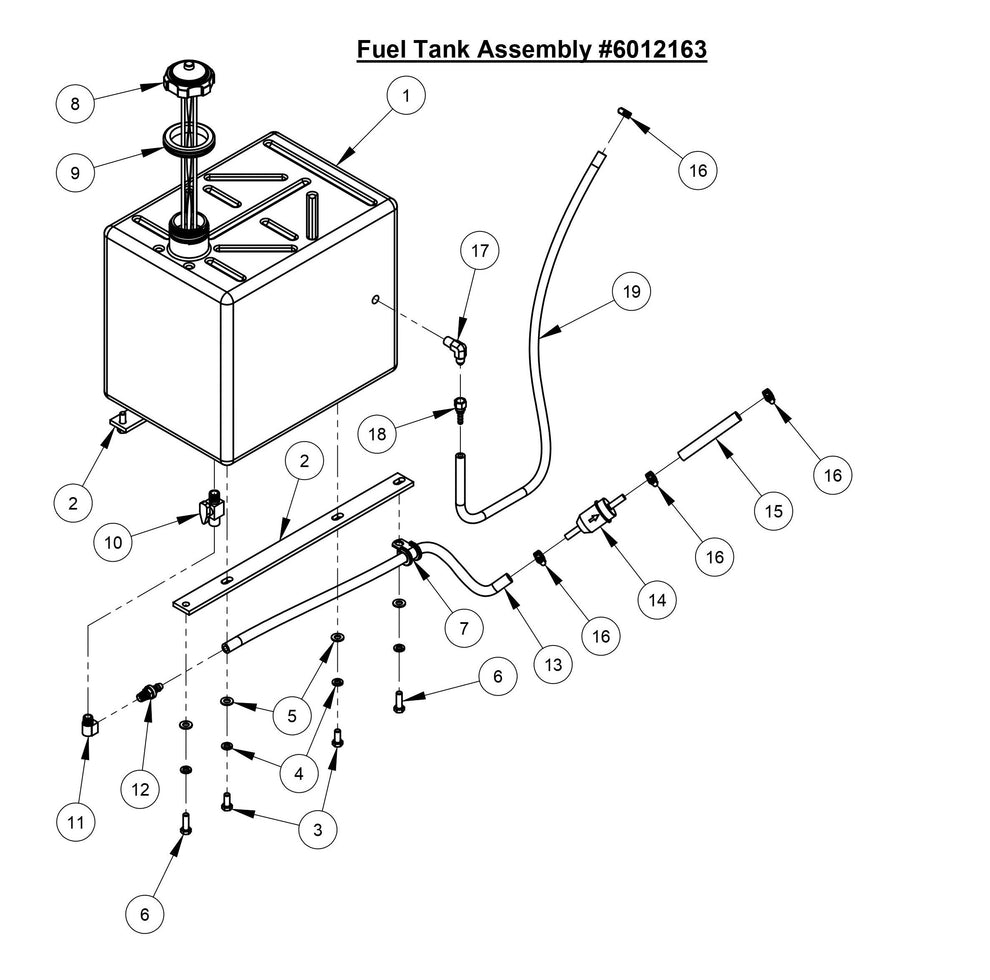

CC3728 Fuel Tank Assembly Parts

CC3728 Fuel Tank Assembly Parts

  • CC3728 Fuel Tank Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2500648 Fuel Tank for Core Cut CC3535 Walk Behind Saw by Diamond Products
$200.00
2
6011083 Fuel Tank Mount Bar for CC3500J Concrete Saw Core Cut by Diamond Products
$23.74
3
2900019 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900138 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2501434 Hose Clamp 5/8" x 3/4" Wide for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.99
8
2500649 Fuel Cap for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$37.66
9
2500205 Fuel Tank Grommet for CC3500J Concrete Saw Core Cut by Diamond Products
$6.91
10
3200108 Ball Valve 1/4" NPT for CC5555-3 Concrete Saw Core Cut by Diamond Products
$38.47
11
3200012 Street Elbow, 1/4" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$13.00
12
3200202 Fitting, 1/4"M. Pipe to 5/16" Pushlock fits CC6160D by Core Cut Diamond Products
$8.05
13
6010457 Fuel Line Hose, 5/6" ID x 18-1/2" fits CC4144DXL by Core Cut Diamond Products
Call for Price call for price call for price
14
2501785 Filter, Diesel Fuel for CC7874XL Concrete Saw Core Cut by Diamond Products
$34.44
15
6013095 Fuel Supply Hose, 5/16" I.D. x 54" for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$9.80
16
3200062 Hose Clamp #4 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$7.33
17
3200057 Elbow, 1/4" M. Pipe to 1/4" M. JIC for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$9.37
18
3200091 Fitting, 1/4" F. JIC to 1/4" Push Lock for CC3500J Concrete Saw Core Cut by Diamond Products
$6.26
19
6010103 Fuel Return Hose, 5/16" I.D x 48" for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$26.13
