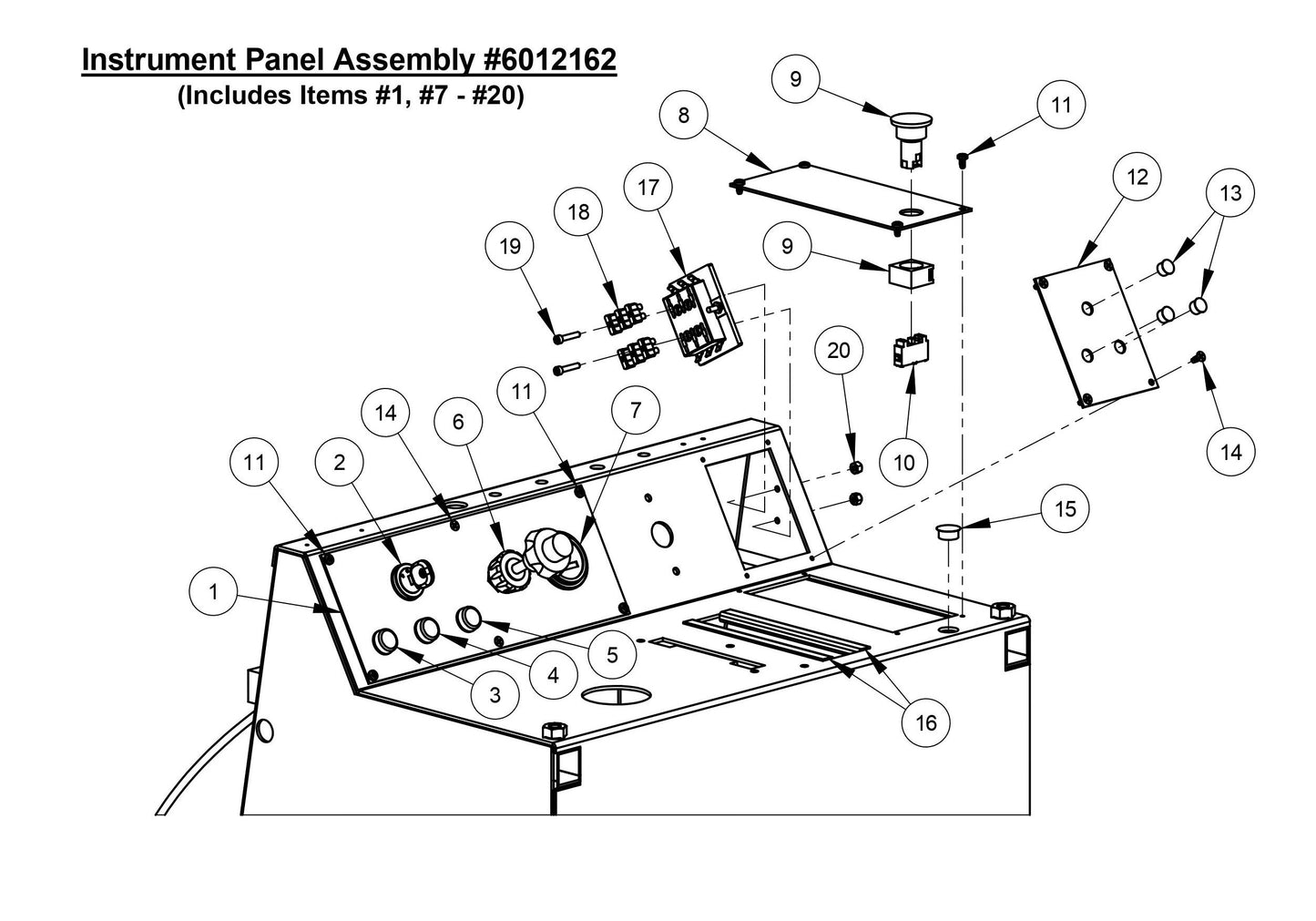

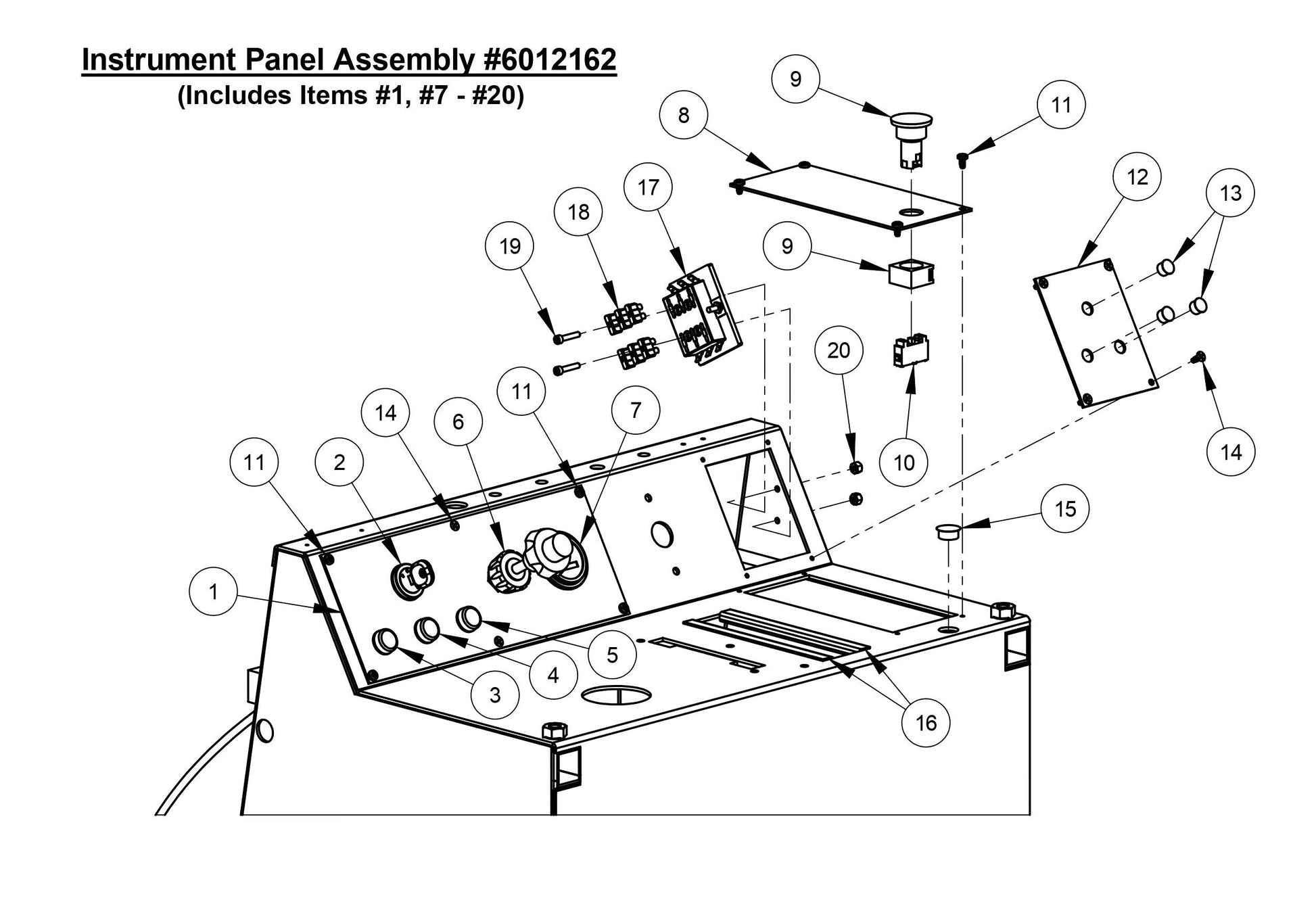

CC3728 Instrument Panel Assembly Parts

CC3728 Instrument Panel Assembly Parts

  • CC3728 Instrument Panel Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
2703194 Ignition Switch & Key for CC7874XL Concrete Saw Core Cut by Diamond Products
$417.78
2
2703195 (Ignition Key Only) for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$47.30
3
2700785 Alternator Light -Orange fits CC6160D by Core Cut Diamond Products
$99.00
4
2700787 Oil Temperature Light - Red fits CC6160D by Core Cut Diamond Products
$67.79
5
2700786 Oil Pressure Light -Green fits CC6160D by Core Cut Diamond Products
$50.25
6
2500376 Vernier Throttle Cable for CC3500J Concrete Saw Core Cut by Diamond Products
$202.00
7
2800064 Hour Meter for CC3500J Concrete Saw Core Cut by Diamond Products
$104.97
8
6011024 Hydraulic Pump Cover Plate for CC3500J Concrete Saw Core Cut by Diamond Products
$24.23
9
2800461 Emergency Stop Button for CC3535 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
10
2800462 Contact Block, N.C. for CC3535 Concrete Saw Core Cut by Diamond Products
$40.19
11
2900021 Tap Screw Pan Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
6010098 Switch Plate for CC3500J Concrete Saw Core Cut by Diamond Products
$14.00
13
2500204 Plug 1/2" Hole for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900445 Tap Screw, Flat Hd., #10-24 x 1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
15
2500463 Plug, 3/4" Hole for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
16
6011031 Edge Trim for CC3535 Concrete Saw Core Cut by Diamond Products
$6.88
17
2800388 Fuse Panel, 6 Circuit for CC3500J Concrete Saw Core Cut by Diamond Products
$51.43
18
2800389 Fuse, 10 Amp Red ATO/ATC for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
19
2900913 Cap Screw, Soc. Hd., #10-24 x 1" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
20
2900017 Lock Nut #10-24 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
1
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
