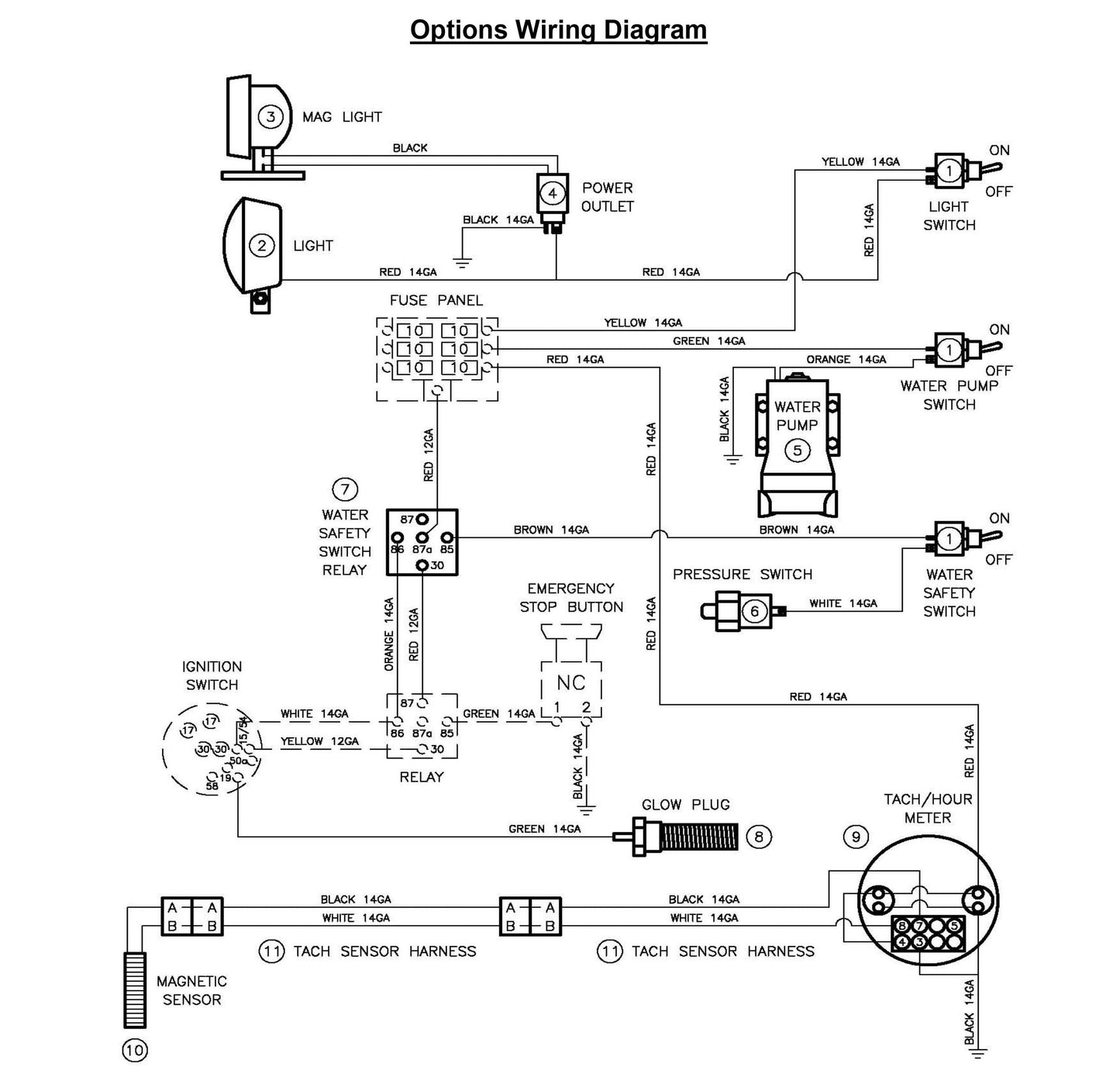

CC3728 Options Wiring Diagram

CC3728 Options Wiring Diagram

  • CC3728 Options Wiring Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2800062 Toggle Switch for CC6540E CONCRETE SAW Core Cut by Diamond Products
$51.65
1
2800063 Switch Boot for CC3500J Concrete Saw Core Cut by Diamond Products
$10.27
2
2500194 Spot Light, 12 Volt for CC3500J Concrete Saw Core Cut by Diamond Products
$57.00
3
2501087 Light, 12V Magnetic Base for CC3535 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
4
2800374 Outlet, 12 Volt Power for CC3535 Concrete Saw Core Cut by Diamond Products
$16.71
4
2800375 Cap, 12 Volt Power Outlet for CC3535 Concrete Saw Core Cut by Diamond Products
$6.99
5
2600200 Water Pump, 12V Diaphragm for CC3500J Concrete Saw Core Cut by Diamond Products
$500.94
6
2800060 Water Pressure Safety Switch for CC3500J Concrete Saw Core Cut by Diamond Products
$120.78
7
2800144 Relay, 50 Amp, 12 V, SPDT for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$27.64
7
2800263 Relay Connector for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$6.99
7
2800264 Wire Terminal, 1/4" Push-on for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$3.99
9
6010416 Tach/Hour Meter (VDO) Calibrated for CC3500J Concrete Saw Core Cut by Diamond Products
$593.01
9
2800612 (Light Bulb, Wedge Base) for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$6.89
10
2800169 Magnetic Sensor for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$258.39
11
2800397 Tach Sensor Harness for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$72.10
