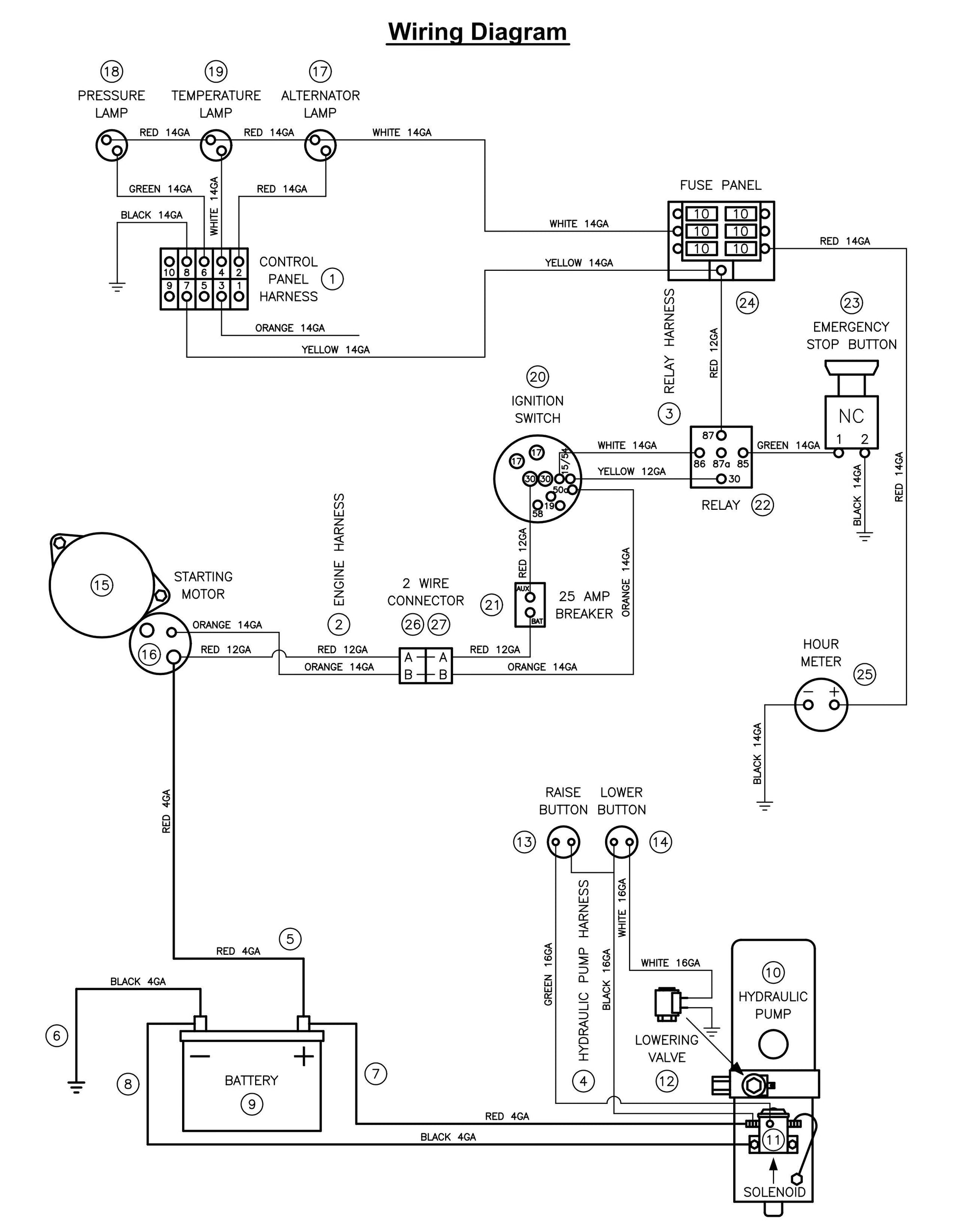

CC3728 Wiring Diagram

CC3728 Wiring Diagram

  • CC3728 Wiring Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
2800429 Engine Harness for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$72.10
3
2800392 Relay Harness for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$46.27
4
2800393 Harness, Hydraulic Pump for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$41.97
5
2800073 Battery Cable, Positive (Red) for CC3535 Concrete Saw Core Cut by Diamond Products
$119.79
6
2800072 Battery Cable, 30" Negative (Black) for CC3500J Concrete Saw Core Cut by Diamond Products
$85.00
7
2800095 Battery Cable, 14" Positive (Red) for CC3535 Concrete Saw Core Cut by Diamond Products
$46.84
8
2800182 Ground Cable, 14" Negative (Black) for CC3500J Concrete Saw Core Cut by Diamond Products
$49.23
9
2700208 Battery, 12 Volt Group Size 34 for CC3500J Concrete Saw Core Cut by Diamond Products
$297.00
10
2600070 Hydraulic Pump Unit for CC3500J Concrete Saw Core Cut by Diamond Products
$956.00
11
2700169 Solenoid, Motor for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$159.60
12
2700243 Valve Coil for CC6561 Concrete Saw Core Cut by Diamond Products
$48.12
12
2700244 Valve Stem for CC6561 Concrete Saw Core Cut by Diamond Products
$126.72
13
2800372 Pushbutton Switch (B&G) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$81.78
14
2800373 Pushbutton Switch (B&W) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$86.09
15
2702274 Deutz Starter for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$877.14
16
2701823 Solenoid Switch for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$790.02
17
2700785 Alternator Light for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$99.00
18
2700786 Oil Pressure Light for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$58.22
19
2700787 Oil Temperature Light for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$67.79
20
2703194 Ignition Switch & Key for CC7874XL Concrete Saw Core Cut by Diamond Products
$417.78
20
2703195 (Ignition Key Only) for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$47.30
21
2800387 Circuit Breaker, 25 Amp for CC7874XL Concrete Saw Core Cut by Diamond Products
$16.71
21
2800364 Circuit Breaker Boot for CC5555-3 Concrete Saw Core Cut by Diamond Products
$6.99
22
2800144 Relay, 50 Amp, 12 V, SPDT for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$27.64
22
2800263 Relay Connector for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$6.99
22
2800264 Wire Terminal, 1/4" Push-on for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$3.99
23
2800461 Emergency Stop Button for CC3535 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
23
2800462 Contact Block, N.C. for CC3535 Concrete Saw Core Cut by Diamond Products
$40.19
24
2800388 Fuse Panel, 6 Circuit for CC3500J Concrete Saw Core Cut by Diamond Products
$51.43
24
2800389 Fuse, 10 Amp Red ATO/ATC for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
25
2800064 Hour Meter for CC3500J Concrete Saw Core Cut by Diamond Products
$104.97
