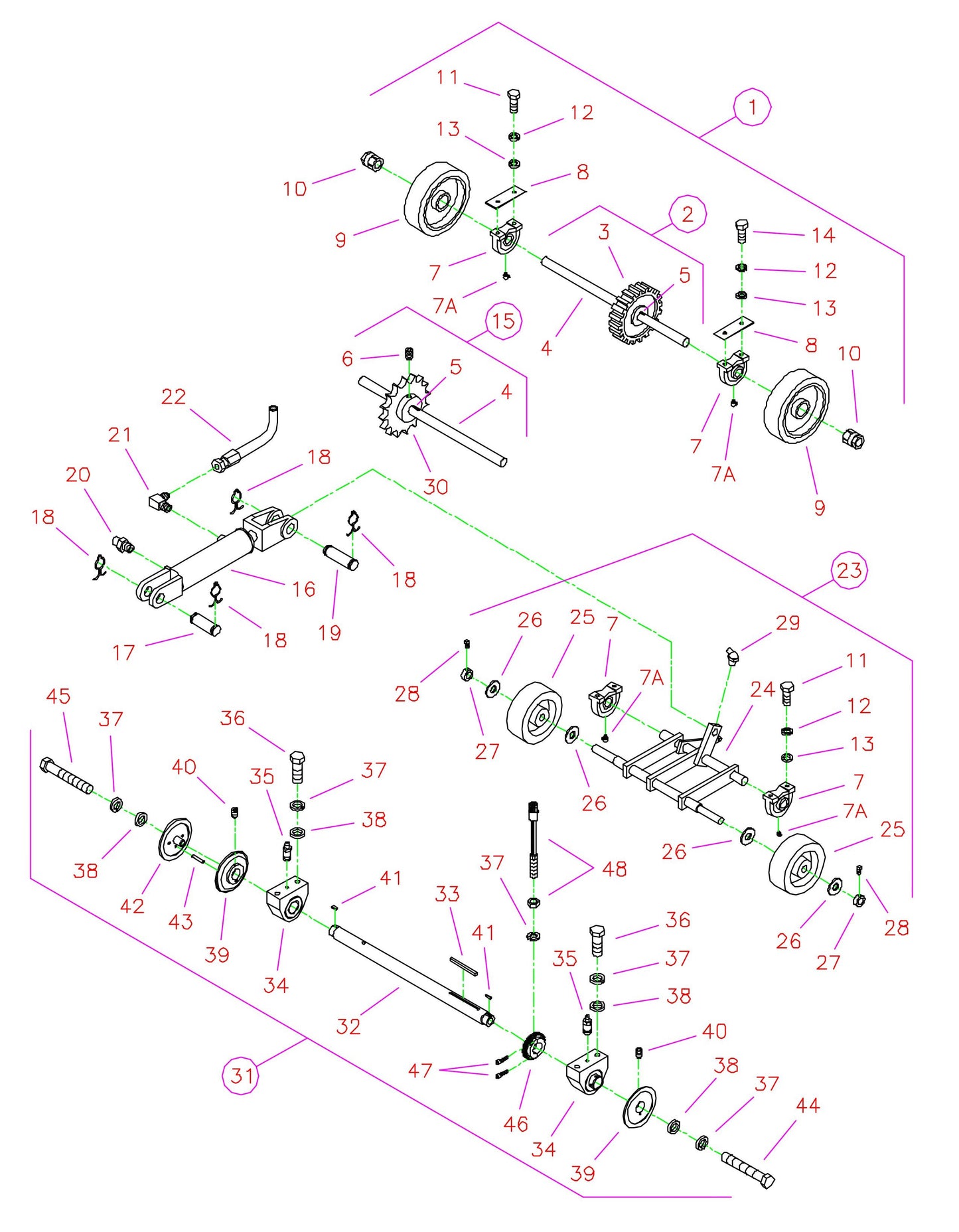

CC3765 Drawing 2 Blade Shaft and Axles Group Assembly Parts

CC3765 Drawing 2 Blade Shaft and Axles Group Assembly Parts

  • CC3765 Drawing 2 Blade Shaft and Axles Group
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
5
6010169 Key, 1/4" Sq. x 1-1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900142 Set Screw, Soc. Hd., 5/16-18 x 3/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
7
2500158 Pillow Block Bearing 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$47.00
7A
2900061 Grease Fitting, 1/4-28 x 90 Degree for CC6540E CONCRETE SAW Core Cut by Diamond Products
$4.99
8
6010024 Rear Axle Bearing Spacer, 1/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$10.52
9
2500873 Wheel, 10" Rear with 2" Bore for CC6540E CONCRETE SAW Core Cut by Diamond Products
$230.67
10
2500874 Trantorque Bushing, 1-1/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$155.43
12
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
14
2900139 Cap Screw, Hex Hd., 1/2-13 x 1- 3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
16
2500177 Hydraulic Cylinder for CC3535 Concrete Saw Core Cut by Diamond Products
$374.22
17
6010031 Cylinder Pin, 1" Dia. x 3" Long for CC6561 Concrete Saw Core Cut by Diamond Products
$21.64
18
2900064 Hair Pin Cotter, 3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
19
6010119 Cylinder Pin, 1" Dia. x 3-1/2" Long for CC6561 Concrete Saw Core Cut by Diamond Products
$22.90
20
3200067 Cylinder Breather, 1/4" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$11.33
21
3200057 Elbow, 1/4" M. Pipe to 1/4" M. JIC for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$9.37
28
2900431 Set Screw, Sq. Hd., 5/16-18 x 1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
34
2500151 Blade Shaft Bearing, 1-3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$525.69
35
2900198 Grease Fitting, 1/8" NPT x 1-1/4" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$6.99
36
2900512 Cap Screw, Hex Hd., 5/8-11 x 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
37
2900113 Lock Washer 5/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
38
2900002 Flat Washer 5/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
40
2900418 Set Screw, Soc. Hd., 5/16-18 x 5/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
45
2900130 Cap Screw, Hex Hd., 5/8-11 x 4" LH for CC3500J Concrete Saw Core Cut by Diamond Products
$30.88
46
6010230 Shaft Tach Gear, Split for CC3500J Concrete Saw Core Cut by Diamond Products
$194.04
1
Diamond Products REAR AXLE ASSY. (CC3700) WITH 68 TOOTH SPUR GEAR, TRANTORQUE WHEELS & AXLE 6012063
$1,368.75
1
Diamond Products REAR AXLE ASSY. (CC3700) WITH 35 TOOTH SPROCKET, TRANTORQUE WHEELS & AXLE 6012050
$937.53
2
Diamond Products REAR AXLE WELDMENT CC3700 WITH 68 TOOTH SPUR GEAR 6012064
$760.00
4
Diamond Products REAR AXLE (CC3700-NEW) WITH PLAIN ENDS 6012049
$74.62
11
2900025 Cap Screw, Hex Hd., 1/2-13 x 1-1/4" for CC3535 Concrete Saw Core Cut by Diamond Products
$3.99
15
6012051 Rear Axle Weldment w/35 Tooth Sprocket fits CC3700E by Core Cut Diamond Products
$203.94
22
3200054 Hose Assembly, 32" Long for CC3500J Concrete Saw Core Cut by Diamond Products
$78.52
27
2500009 Set Collar 1" ID for CC5555-3 Concrete Saw Core Cut by Diamond Products
$15.00
29
2900184 Grease Fitting, 1/4" NPT x 45 degree for CC6540E CONCRETE SAW Core Cut by Diamond Products
$4.99
31
Diamond Products BLADE SHAFT ASSY.(CC3700) WITH 4-1/2" DIA FLANGES 6012011
$1,990.89
31
Diamond Products BLADE SHAFT ASSY.(CC3700) WITH 6" DIAMETER FLANGES 6012012
$1,928.52
32
6012003 Blade Shaft fits CC3700E by Core Cut Diamond Products
$728.64
33
6012065 Key, 3/8" Sq. x 3-1/2 fits CC3700E by Core Cut Diamond Products
$6.99
39
6010036 Inner Flange 4-1/2" for CC6561 Concrete Saw Core Cut by Diamond Products
$87.50
39
6010038 Inner Flange 6" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$140.40
42
6010037 Outer Flange 4-1/2" with Pin for CC6540E CONCRETE SAW Core Cut by Diamond Products
$126.72
42
6010039 Outer Flange 6" with Pin for CC5555-3 Concrete Saw Core Cut by Diamond Products
$185.13
43
2900197 Dowel Pin, 3/8" Dia. x 2" for CC3535 Concrete Saw Core Cut by Diamond Products
$6.99
44
2900146 Cap Screw, Hex Hd., 5/8-11 x 4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$15.86
47
2900089 Cap Screw, Soc. Hd., 1/4-28 x 1" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
48
2800169 Magnetic Sensor w/Jam Nut for CC3500J Concrete Saw Core Cut by Diamond Products
$258.39
41
6010040 Key, 1/4" Sq. x 15/16" for CC3500J Concrete Saw Core Cut by Diamond Products
$10.00
3
Call for Price call for price call for price
16
Call for Price call for price call for price
23
Call for Price call for price call for price
25
Call for Price call for price call for price
25
Call for Price call for price call for price
26
Call for Price call for price call for price
30
Call for Price call for price call for price
24
Call for Price call for price call for price
