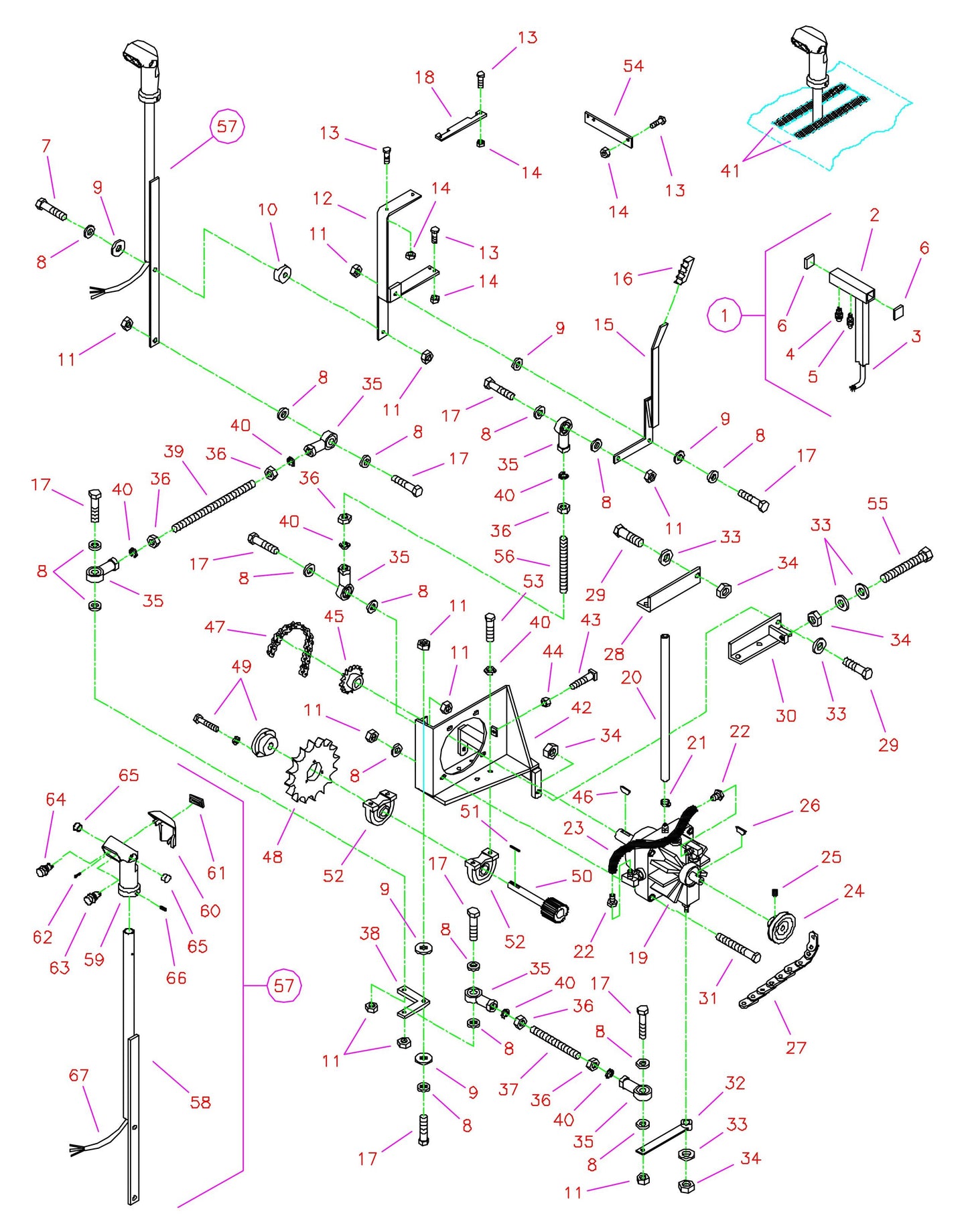

CC3765 Drawing 5 Eaton Transmission Group Assembly Parts

CC3765 Drawing 5 Eaton Transmission Group Assembly Parts

  • CC3765 Drawing 5 Eaton Transmission Group
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
8
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900153 Friction Washer, 3/8" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
10
6010055 Friction Spacer for CC3500J Concrete Saw Core Cut by Diamond Products
$16.20
11
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900144 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
6010057 Engagement Lever Weldment for CC3500J Concrete Saw Core Cut by Diamond Products
$63.04
17
2900029 Cap Screw, Hex Hd., 3/8-16 x 1-1/2" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
18
6010058 Gate Plate for CC3500J Concrete Saw Core Cut by Diamond Products
$28.65
21
3200062 Hose Clamp #4 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$7.33
22
3200046 Fitting, 3/8" F. JIC to 3/8" Push Lock for CC3500J Concrete Saw Core Cut by Diamond Products
$8.82
23
6010060 Oil Recirculation Hose, 3/8" I.D. x 9" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$10.89
25
2900142 Set Screw, Soc. Hd., 5/16-18 x 3/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
28
6010027 Mount Foot, Right Hand for CC3500J Concrete Saw Core Cut by Diamond Products
$41.88
29
2900139 Cap Screw, Hex Hd., 1/2-13 x 1- 3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
31
2900035 Cap Screw, Hex Hd., 3/8-16 x 3" for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
32
6010064 Shift Lever for CC3500J Concrete Saw Core Cut by Diamond Products
$50.31
33
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
34
2900026 Lock Nut 1/2-13 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
36
2900148 Hex Nut, 3/8-24 for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
40
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
41
6011031 Edge Trim for CC3535 Concrete Saw Core Cut by Diamond Products
$6.88
42
6010068 Transmission Platform Weldment for CC3500J Concrete Saw Core Cut by Diamond Products
$354.42
43
2900140 Set Screw, Sq. Hd., 5/16-18 x 1-1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$6.18
44
2900141 Hex Nut, 5/16-18 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
47
6010069 Chain, #40 x 56 Pitch for CC3500J Concrete Saw Core Cut by Diamond Products
$21.52
51
6048229 Key, 3/16" Sq. x 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
52
2500159 Pillow Block Bearing, 3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$25.00
53
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
54
6010166 Gate Cover Bar for CC6540E CONCRETE SAW Core Cut by Diamond Products
$25.13
55
2900542 Tap Bolt, Hex Hd., 1/2-13 x 3-1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$6.99
58
6010314 Speed Control Lever for CC6540E CONCRETE SAW Core Cut by Diamond Products
$67.55
59
2501280 Control Grip Body for CC3500J Concrete Saw Core Cut by Diamond Products
$24.75
60
2501281 Control Grip Cover for CC3500J Concrete Saw Core Cut by Diamond Products
$18.39
65
2500694 Plug, 5/8" Hole for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
66
2900453 Set Screw, Soc. Hd., M5 x 12mm for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
61
2500644 Plug, Rectangular for CC3500J Concrete Saw Core Cut by Diamond Products
$6.99
7
2900047 Capscrew, Hex Hd., 3/8"-16 x 1-3/4" for Honda Engines for CC1100 Concrete Saw Core Cut by Diamond Products
$3.99
12
6012057 Lever Support Weldment fits CC3700E by Core Cut Diamond Products
$119.79
14
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
16
2500002 Lever Grip for CC6561 Concrete Saw Core Cut by Diamond Products
$21.52
19
2600068 Eaton Hydrostatic Transmission for CC6571 Concrete Saw Core Cut by Diamond Products
$1,560.80
20
6010059 Clear Hose, 3/8" I.D. x 19" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$12.05
26
2900143 Woodruff Key #61, 3/16" x 5/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
27
Diamond Products LINK BELT 64" (CC3700) FOR EATON TRANSMISSION 6012068
$203.94
30
6010028 Mount Foot, Adjustable for CC6561-3 Concrete Saw Core Cut by Diamond Products
$92.82
35
2500152 Rod End, 3/8-24 Female for CC6540E CONCRETE SAW Core Cut by Diamond Products
$30.55
38
6012058 Bell Crank fits CC3700E by Core Cut Diamond Products
$18.20
45
2500150 Sprocket, #40 x 11 Tooth w/Setscrews for CC3500J Concrete Saw Core Cut by Diamond Products
$22.46
46
2900063 Woodruff Key #405, 1/8" x 5/8" for CC3535 Concrete Saw Core Cut by Diamond Products
$3.99
48
2500148 Sprocket, #40 x 45 Tooth for CC3535 Concrete Saw Core Cut by Diamond Products
$79.04
49
2500149 QD Bushing, SDS x 3/4" w/Fasteners for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$48.79
50
Diamond Products TRANSMISSION JACKSHAFT (11 TOOTH GEAR) 6013101
$221.76
56
Diamond Products ROD, 3/8-24 X 4-1/4" PLATED 6012066
$16.62
62
2900452 Machine Screw, Oval Hd., #4 x 5/8" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$2.99
63
2800372 Pusbutton Switch, Raise fits CC4144DXL by Core Cut Diamond Products
$81.78
64
2800373 Pushbutton Switch, Lower for CC3500J Concrete Saw Core Cut by Diamond Products
$86.09
67
2800393 Harness, Hydraulic Pump for CC3500J Concrete Saw Core Cut by Diamond Products
$41.97
1
Call for Price call for price call for price
2
Call for Price call for price call for price
3
Call for Price call for price call for price
4
Call for Price call for price call for price
5
Call for Price call for price call for price
6
Call for Price call for price call for price
24
Call for Price call for price call for price
27
Call for Price call for price call for price
37
Call for Price call for price call for price
39
Call for Price call for price call for price
57
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
