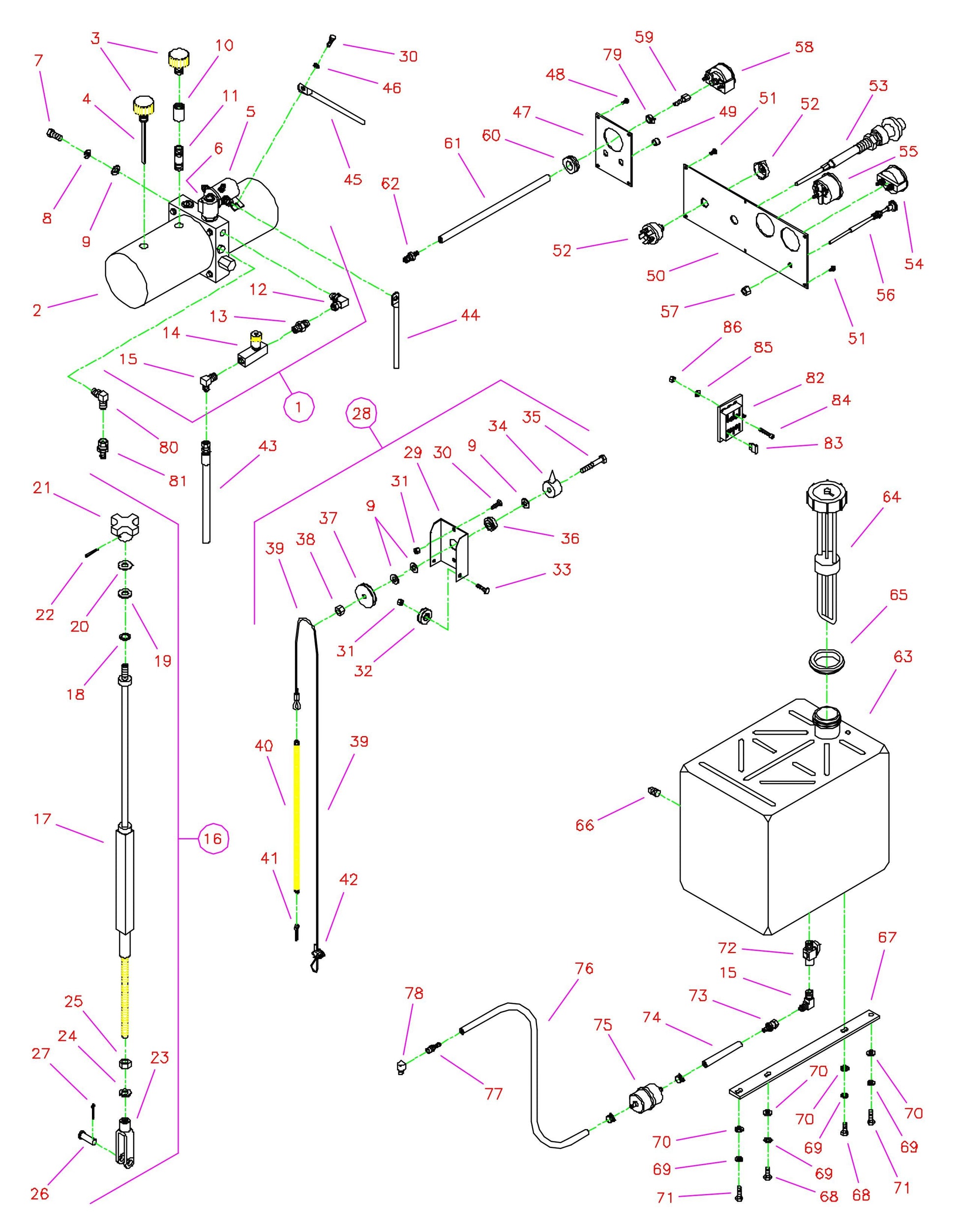

CC3765 Drawing 6 Controls Group Assembly Parts

CC3765 Drawing 6 Controls Group Assembly Parts

  • CC3765 Drawing 6 Controls Group
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
2600070 Hydraulic Pump Unit for CC3500J Concrete Saw Core Cut by Diamond Products
$956.00
5
2700169 Solenoid, Motor for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$159.60
6
2700243 Valve Coil for CC6561 Concrete Saw Core Cut by Diamond Products
$48.12
6
2700244 Valve Stem for CC6561 Concrete Saw Core Cut by Diamond Products
$126.72
7
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
3200120 Pipe Coupling, 3/8" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$31.81
11
3200123 Pipe Nipple, 3/8" NPT x 2" for CC3500J Concrete Saw Core Cut by Diamond Products
$18.97
12
3200115 Elbow, 3/8" O-Ring to 1/4" F. Pipe for CC3500J Concrete Saw Core Cut by Diamond Products
$13.99
13
3200060 Hex Nipple, 1/4" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$6.99
14
3200056 Flow Control Valve, 1/4" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$119.00
15
3200057 Elbow, 1/4" M. Pipe to 1/4" M. JIC for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$9.37
17
6010097 Depth Stop Weldment for CC3500J Concrete Saw Core Cut by Diamond Products
$154.44
19
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
20
2900239 Friction Washer, 1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
21
6010095 Depth Stop Knob for CC3500J Concrete Saw Core Cut by Diamond Products
$36.00
22
2900132 Roll Pin, 3/16" x 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
23
2900158 Yoke, 1/2-13 for CC3500J Concrete Saw Core Cut by Diamond Products
$23.67
24
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
25
2900037 Hex Nut, 1/2-13 for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
26
2900007 Clevis Pin, 1/2" Dia. x 1-3/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
27
2900004 Cotter Pin, 1/8" x 1" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
29
6010092 Depth Indicator Mount Bracket for CC3500J Concrete Saw Core Cut by Diamond Products
$18.00
30
2900144 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
31
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
32
2500155 Cable Pulley, 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$24.00
33
2900008 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
34
6010091 Depth Indicator Pointer for CC3500J Concrete Saw Core Cut by Diamond Products
$53.95
35
2900079 Cap Screw, Hex Hd., 3/8-16 x 2-1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
36
2500145 Flange Bearing, 3/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$49.36
37
6010093 Cable Pulley, 2" for CC3500J Concrete Saw Core Cut by Diamond Products
$37.61
38
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
39
6010094 Depth Indicator Cable with Crimp, 48" for CC3500J Concrete Saw Core Cut by Diamond Products
$44.00
40
2500196 Spring, 3/8" x 15" for CC3500J Concrete Saw Core Cut by Diamond Products
$16.14
41
2900055 Cotter Pin, 3/16" x 1" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
42
2500214 Cable Clamp for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
46
2900024 Lock Washer 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
47
6010098 Switch Plate for CC3500J Concrete Saw Core Cut by Diamond Products
$14.00
48
2900445 Tap Screw, Flat Hd., #10-24 x 1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
49
2500204 Plug 1/2" Hole for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
51
2900021 Machine Screw, Pan Hd., #10-24 x 3/8" for Core Cut CC1800XL Concrete Walk Behind Saw Parts by Diamond Products
$2.99
52
2500220 Ignition Switch for CC3535 Concrete Saw Core Cut by Diamond Products
$175.23
53
2500376 Vernier Throttle Cable for CC3500J Concrete Saw Core Cut by Diamond Products
$202.00
54
2800271 Volt Meter for CC3535 Concrete Saw Core Cut by Diamond Products
$80.71
55
2800064 Hour Meter for CC3500J Concrete Saw Core Cut by Diamond Products
$104.97
56
2500186 Choke Cable for CC3500J Concrete Saw Core Cut by Diamond Products
$29.00
57
2900148 Hex Nut, 3/8-24 for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
65
2500205 Fuel Tank Grommet for CC3500J Concrete Saw Core Cut by Diamond Products
$6.91
66
3200206 Pipe Plug, 1/4" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$6.99
67
6011083 Fuel Tank Mount Bar for CC3500J Concrete Saw Core Cut by Diamond Products
$23.74
68
2900019 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
69
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
70
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
73
3200091 Fitting, 1/4" F. JIC to 1/4" Push Lock for CC3500J Concrete Saw Core Cut by Diamond Products
$6.26
79
3200062 Hose Clamp #4 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$7.33
80
3200116 Elbow, 1/4" O-Ring to 3/8" M. JIC for CC3500J Concrete Saw Core Cut by Diamond Products
$10.36
81
3200046 Fitting, 3/8" F. JIC to 3/8" Push Lock for CC3500J Concrete Saw Core Cut by Diamond Products
$8.82
82
2800388 Fuse Panel, 6 Circuit for CC3500J Concrete Saw Core Cut by Diamond Products
$51.43
83
2800389 Fuse, 10 Amp Red ATO/ATC for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
85
2900016 Flat Washer #10 USS for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
86
2900017 Lock Nut #10-24 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
1
Diamond Products HYDRAULIC PUMP ASSEMBLY FOR CC3500 & CC3700 SAWS 6011077
$1,302.84
3
2700321 Breather Cap for CC6561 Concrete Saw Core Cut by Diamond Products
$20.51
43
3200054 Hose Assembly, 32" Long for CC3500J Concrete Saw Core Cut by Diamond Products
$78.52
44
2800095 Solenoid Cable, 14" Positive (Red) for CC6561-3 Concrete Saw Core Cut by Diamond Products
$46.84
44
2800071 Battery Cable, Positive (Red) for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$70.54
45
2800182 Battery Cable, 14" Negative (Black) for CC3535 Concrete Saw Core Cut by Diamond Products
$49.23
47
Diamond Products SWITCH PLATE (CC3765 SAW) 6010222
$29.77
50
Diamond Products PANEL, GAUGE(CC3700-HOUR) 5-1/4" X 14" 6012028
$42.33
59
Diamond Products 1/8"F.PIPE- 1/4"HOSE BARB 3200188
$6.99
60
2500203 Grommet, 3/4" I.D. for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
63
2500648 Fuel Tank for Core Cut CC3535 Walk Behind Saw by Diamond Products
$200.00
64
2500649 Fuel Tank Cap fits CC6160D by Core Cut Diamond Products
$37.66
71
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
72
3200108 Fuel Shut-Off Valve, 1/4" fits CC6160D by Core Cut Diamond Products
$18.38
74
Fuel Line Hose, 1/4" I.D. x 4" 6010218 for CC2500 Saw by Core Cut Diamond Products
$7.14
75
2500201 Filter, Gasoline Fuel for CC3500J Concrete Saw Core Cut by Diamond Products
$16.14
76
Diamond Products HOSE, 1/4"ID X 20"LONG 6011062
$17.61
77
3200065 1/8" Male Pipe to 1/4" Pushlok for CC3535 Walk Behind Saw by Diamond Products
$6.99
78
3200156 Street Elbow, 1/8" NPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$8.18
84
Diamond Products #10-24X1-1/4"SOC HD SCREW 2900451
$2.99
4
Call for Price call for price call for price
16
Call for Price call for price call for price
18
Call for Price call for price call for price
28
Call for Price call for price call for price
58
Call for Price call for price call for price
61
Call for Price call for price call for price
62
Call for Price call for price call for price
54
Call for Price call for price call for price
