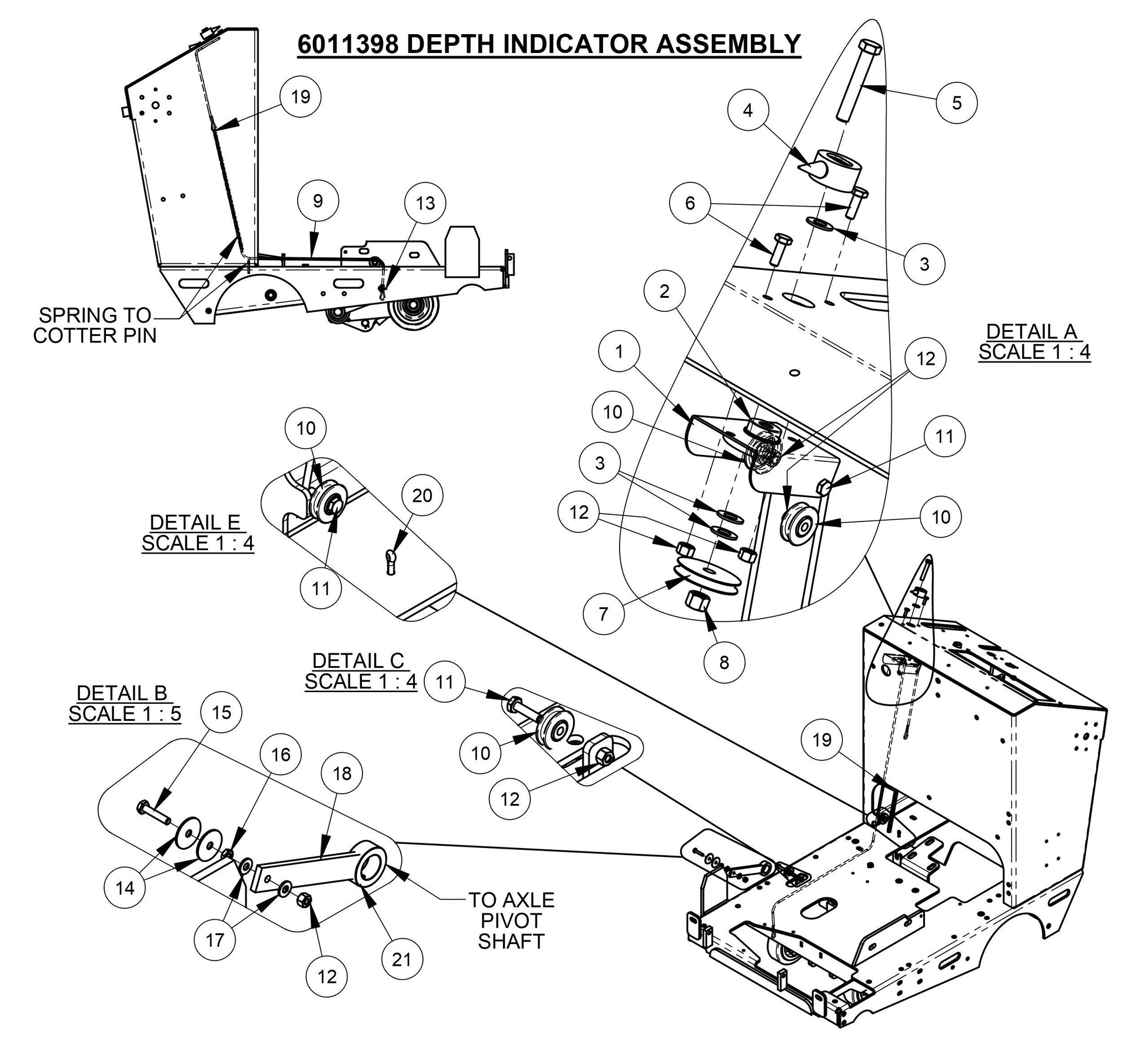

CC4120 /30EXL-3 Depth Indicator Assembly Parts

CC4120 /30EXL-3 Depth Indicator Assembly Parts

  • CC4120 /30EXL-3 Depth Indicator Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010092 Depth Indicator Mount Bracket for CC3500J Concrete Saw Core Cut by Diamond Products
$18.00
2
2500145 Flange Bearing, 3/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$49.36
3
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
6010091 Depth Indicator Pointer for CC3500J Concrete Saw Core Cut by Diamond Products
$53.95
5
2900079 Cap Screw, Hex Hd., 3/8-16 x 2-1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
6
2900144 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
6010093 Cable Pulley, 2" for CC3500J Concrete Saw Core Cut by Diamond Products
$37.61
8
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
6010993 Depth Indicator Cable with Crimp, 59" fits CC4120/3EXL-3 by Core Cut Diamond Products
$36.50
10
2500155 Cable Pulley, 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$24.00
11
2900008 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2500214 Cable Clamp for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
14
2900083 Fender Washer 1/4" x 1-1/4" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
2900052 1/4-20 x 1.25" Hex Head Cap Screw for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
16
2900358 Jam Nut, 1/4-20 for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
17
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
18
6045166 Depth Indicator Weldment fits CC4120/3EXL-3 by Core Cut Diamond Products
$52.53
19
2500196 Spring, 3/8" x 15" for CC3500J Concrete Saw Core Cut by Diamond Products
$16.14
20
2900055 Cotter Pin, 3/16" x 1" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
21
2900036 Set Screw, Soc. Hd., 5/16-18 x 1/4" for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
