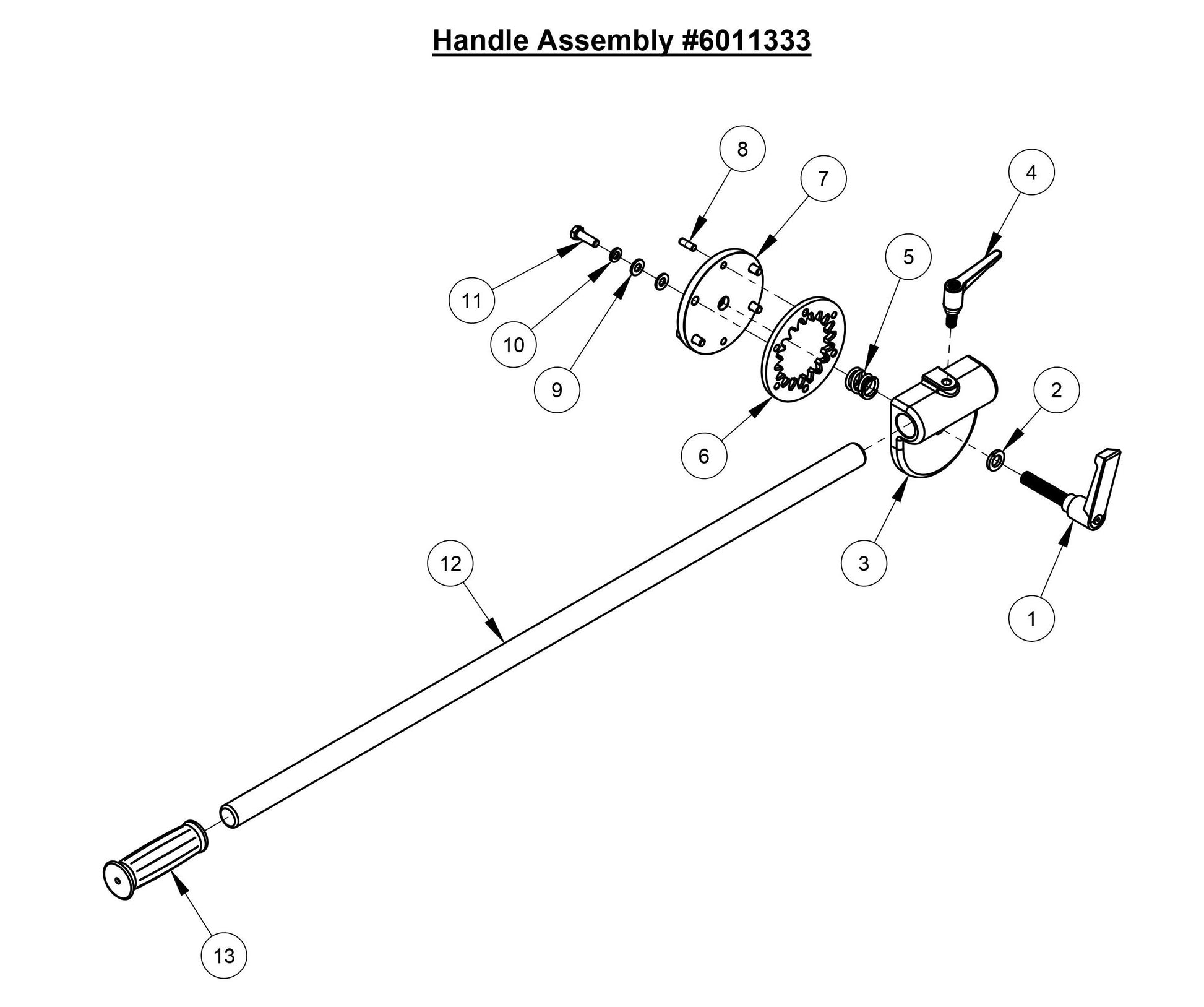

CC4120 /30EXL-3 Handle Assembly Parts

CC4120 /30EXL-3 Handle Assembly Parts

  • CC4120 /30EXL-3 Handle Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2503903 Lever, Adjustable /w Stud fits CC4120/3EXL-3 by Core Cut Diamond Products
$50.86
2
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
3
6011375 Handle Bracket Assembly fits CC4120/3EXL-3 by Core Cut Diamond Products
$880.00
4
2503971 Lever, Adjustable w/ 3/8"-16 Stud fits CC4120/3EXL-3 by Core Cut Diamond Products
$57.03
5
2503943 Compression Spring, .960 x 1.00 fits CC4120/3EXL-3 by Core Cut Diamond Products
$29.61
6
6011372 Int Spur Gear, 6DP, 18T, 20PA fits CC4120/3EXL-3 by Core Cut Diamond Products
$628.65
7
6011334 Handle Bracket Backing Plate Asm fits CC4120/3EXL-3 by Core Cut Diamond Products
$99.15
8
2900207 Dowel Pin, 1/4" Dia. x 3/4" for CC1600 WALL SAW Core Cut by Diamond Products
$4.99
9
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900138 5/16-18x1.00 HEX CAP SCREW for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
12
6010014 Handle Bar, 36" Long for CC3500J Concrete Saw Core Cut by Diamond Products
$60.60
13
2500636 Handle Grip for CC5555-3 Concrete Saw Core Cut by Diamond Products
$32.64
