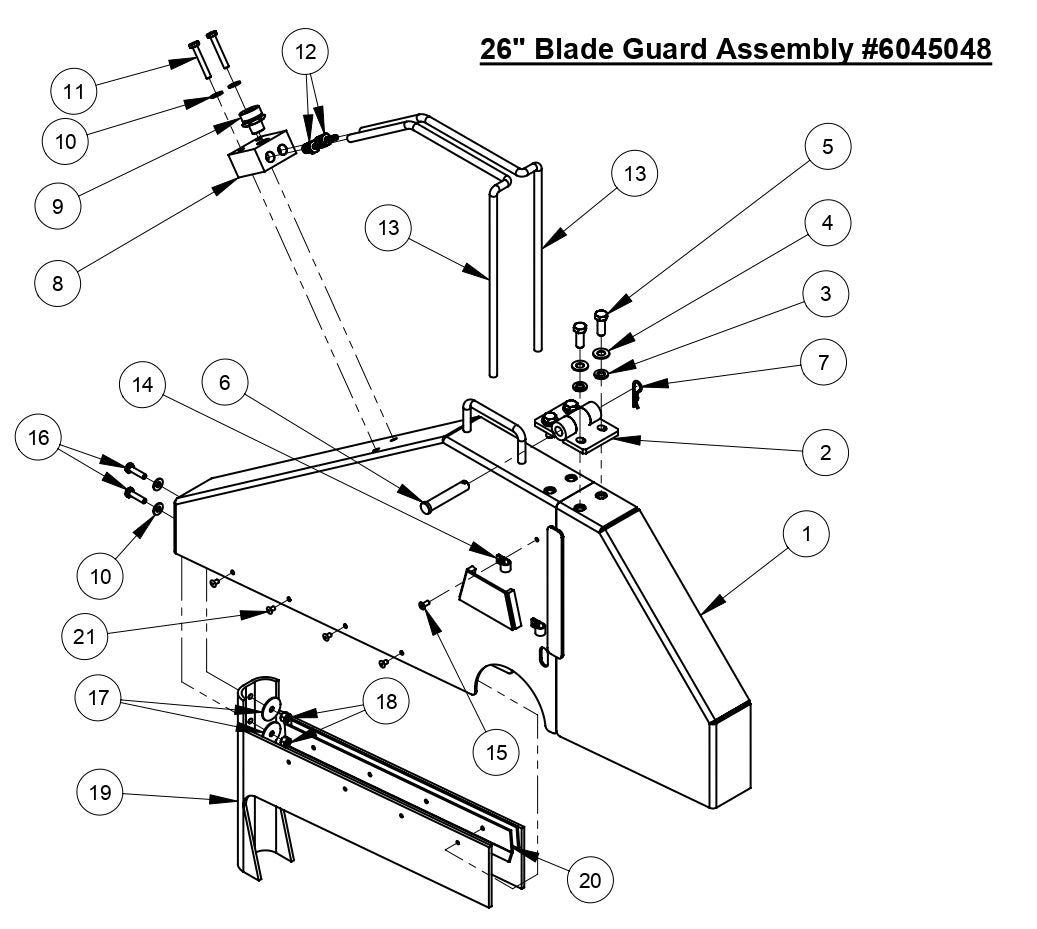

CC4144D 26" Blade Guard Assembly Parts

CC4144D 26" Blade Guard Assembly Parts

  • CC4144D 26" Blade Guard Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
6041135 Hinge for CC5555-3 Concrete Saw Core Cut by Diamond Products
$122.76
3
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900607 Clevis Pin 1/2" x 2-3/4" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$6.99
7
2900262 Hairpin Cotter for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
8
6045162 Water Manifold for CC5555-3 Concrete Saw Core Cut by Diamond Products
$159.39
9
3200002 Fitting 3/8" M. Pipe to 3/4" M. Garden for CC5555-3 Concrete Saw Core Cut by Diamond Products
$22.32
10
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900392 Cap Screw, Hex Hd., 1/4-20 x 1-3/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
12
3200019 Fitting 1/4" M. Pipe to 1/4" Hose Barb for CC5555-3 Concrete Saw Core Cut by Diamond Products
$8.08
13
6045106 Hose 1/4" x 3/8" x 25" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$36.98
14
3200039 Clamp 3/8" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
2900201 Rivet 3/16" Dia. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
16
2900008 Cap Screw, Hex Hd., 1/4-20 x 1" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
17
2900083 Fender Washer 1/4" x 1-1/4" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
18
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
19
Diamond Products SPLASH FLAP (CC4144D) 3/16"X10.5"X38" 6045174
$235.62
20
6045172 Splash Flap Retaining Strip (Long) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$37.34
21
2900071 Rivet 3/16" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
1
6045201 26" Blade Guard Only fits CC4144D by Core Cut Diamond Products
Call for Price call for price call for price
