CC4144D Front Axle Assembly Parts

CC4144D Front Axle Assembly Parts

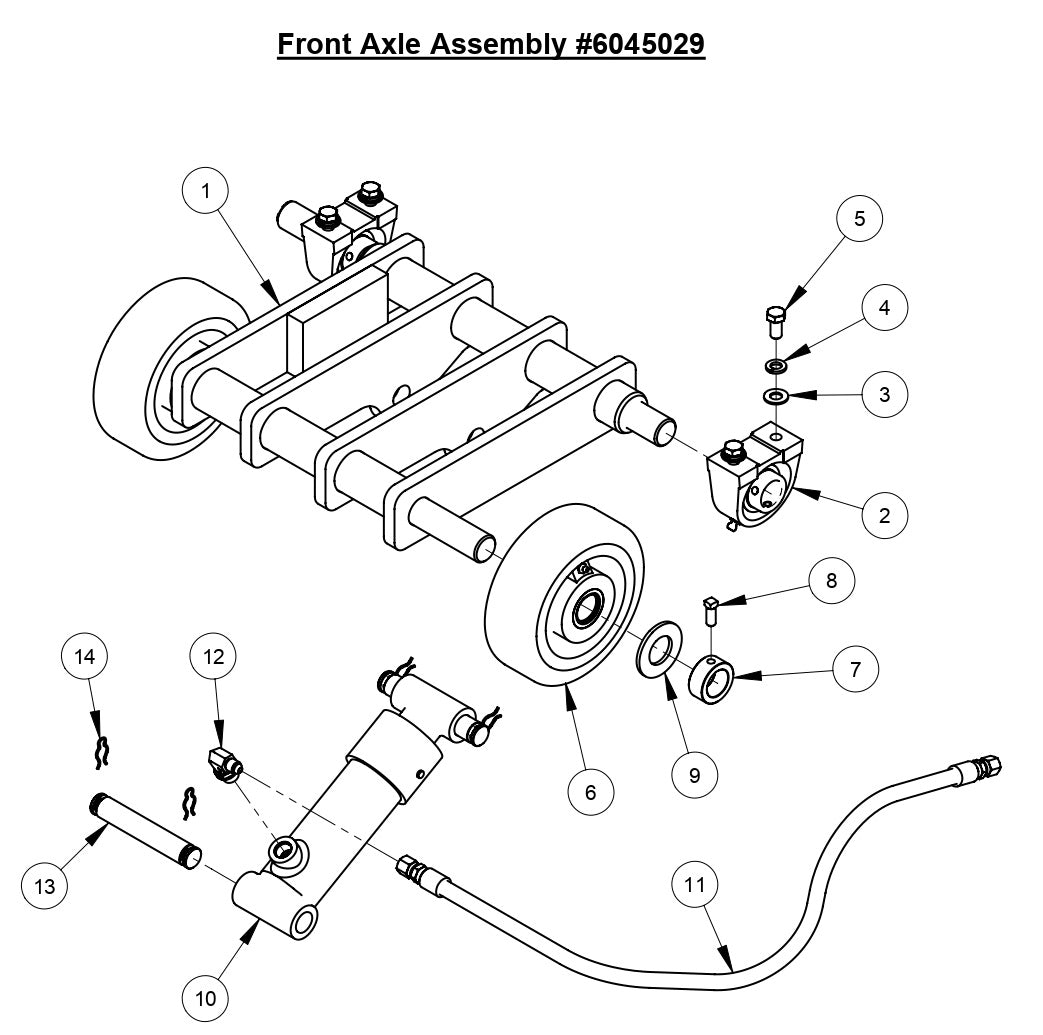

  • CC4144D Front Axle Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products FRONT AXLE WELDMENT 4144D 6045165
$2,095.83
2
2500732 Pillow Block Bearing 1" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$40.44
3
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900196 Cap Screw, Hex Hd., 3/8-16 x 3/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
6
2500299 Wheel 6" Front for CC5555-3 Concrete Saw Core Cut by Diamond Products
$126.72
7
2500009 Set Collar 1" ID for CC5555-3 Concrete Saw Core Cut by Diamond Products
$15.00
8
Diamond Products 5/16-18X3/4"SQ.HD SETSCRW 2900783
$2.99
9
2900295 Flat Washer 1" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.00
10
2501541 Hydraulic Cylinder 1-3/4" x 5" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$690.03
11
Diamond Products HOSE ASSY,1/4"X53" HYD 3201684
$83.40
12
3200551 Elbow 3/8" O-Ring to 1/4" M. JIC for CC5555-3 Concrete Saw Core Cut by Diamond Products
$11.96
13
Diamond Products CYLINDER PIN,3/4"X4-1/2" 6045056
$11.74
14
2900784 Hair Pin Clip 1/2" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
