CC4144D Instrument & Control Assembly Parts

CC4144D Instrument & Control Assembly Parts

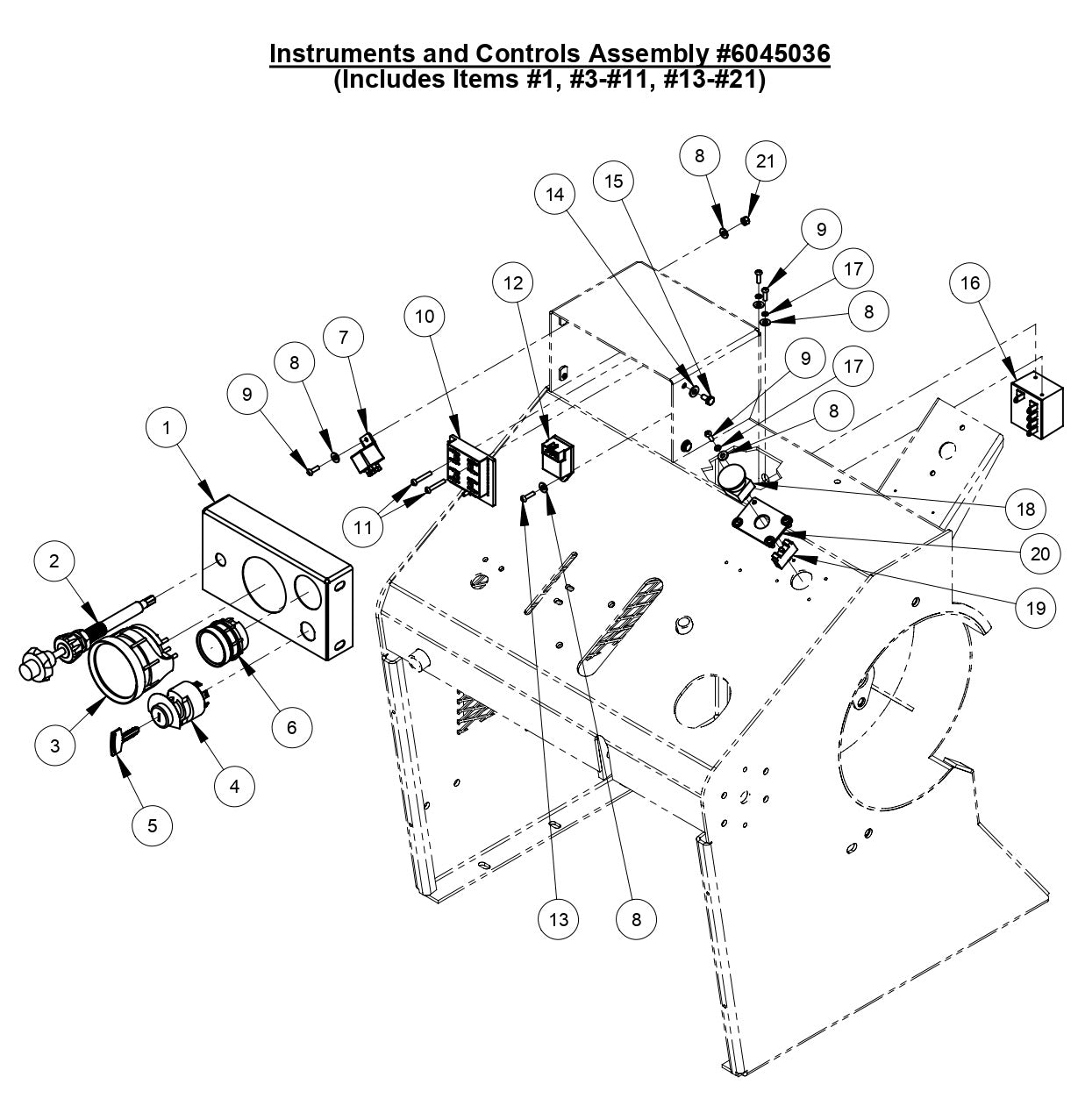

  • CC4144D Instrument & Control Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
Diamond Products THROTTLE CABLE 36"VERNIER 2503183
$225.00
4
2705001 Ignition Switch & Keys for CC6571 Concrete Saw Core Cut by Diamond Products
$187.60
5
2705000 Ignition Keys Only (Pair) for CC6571 Concrete Saw Core Cut by Diamond Products
$32.00
6
Diamond Products GAUGE, 4 WARNING LIGHT 2705003
$330.66
7
2800144 Relay, 50 Amp, 12V, SPDT for CC6561 Concrete Saw Core Cut by Diamond Products
$27.64
8
2900016 Flat Washer, #10 USS for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
10
Diamond Products FUSE PANEL 8 CIRCUIT 2800696
$66.20
11
2900172 Rd Hd 10-24 x 1.25" Machine Screw for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$2.99
12
Diamond Products TIMER, 12V DC (KUBOTA) 2705006
$190.00
13
2900093 Machine Screw, Rd. Hd., #10-24 x 3/4" for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$2.99
14
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
2900082 Cap Screw, Hex Hd., 1/4-20 x 1/2" for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
16
Diamond Products MURPHY 30 SECOND DELAY RELAY 2801050
$354.42
17
2900038 Lock Washer #10 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
18
2800461 Emergency Stop Button for CC3535 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
19
Diamond Products CONTACT BLOCK N.C. (REPLACED BY #2801636) 2800462
$41.86
20
Diamond Products EMER STOP COVER PLATE 6045101
$20.38
21
2900017 Lock Nut #10-24 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
1
6045108 Instrument Panel Cover fits CC4144D by Core Cut Diamond Products
Call for Price call for price call for price
3
2705004 Tachometer/Hour Meter fits CC4144D by Core Cut Diamond Products
Call for Price call for price call for price
9
2900159 Machine Screw, Rd. Hd., #10-24 x 5/8" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
