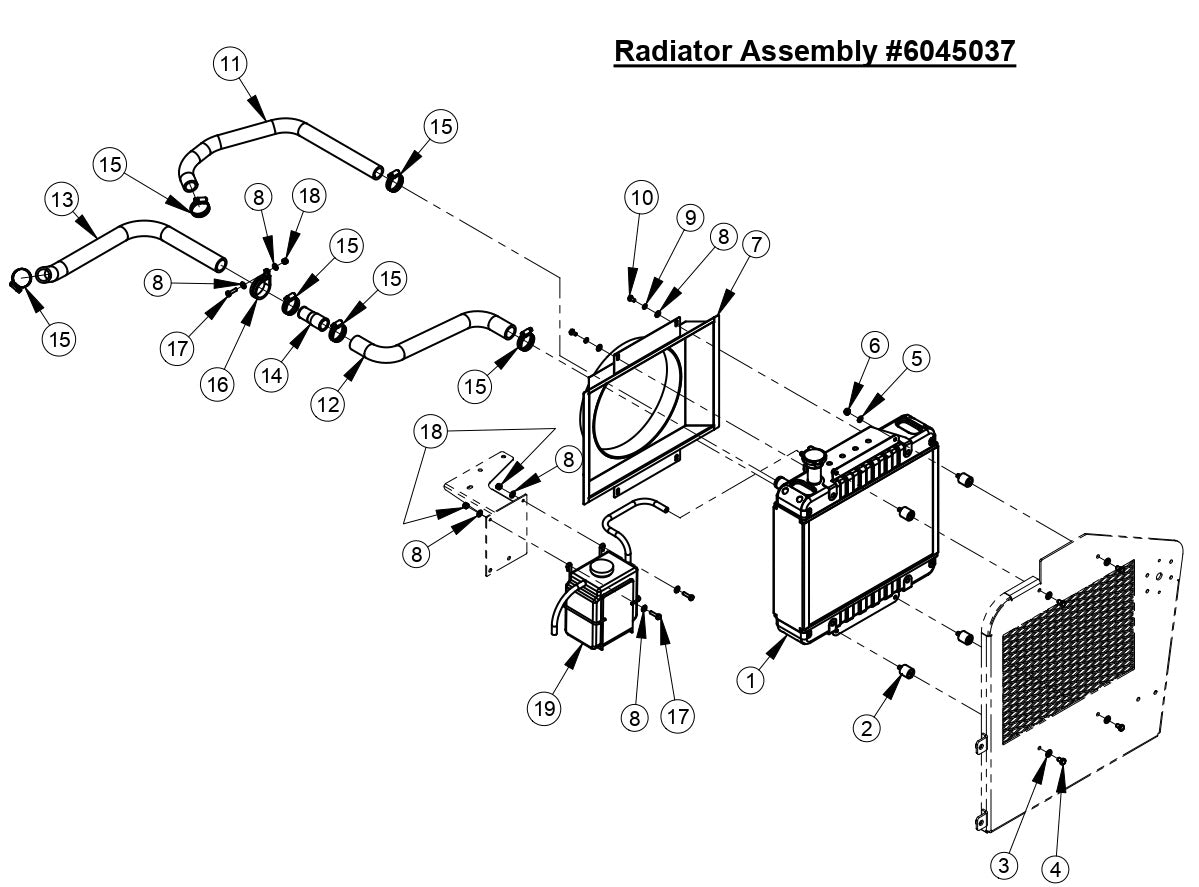

CC4144D. CC4144D-XL, CC4144DXL-3 Radiator Assembly Parts

CC4144D. CC4144D-XL, CC4144DXL-3 Radiator Assembly Parts

  • CC4144D Radiator Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products RADIATOR C4140D KUBOTA 44HP TURBO DIESEL 2505038
$942.48
2
Diamond Products VIBRATION ISOLATOR 1-3/8"OD X 1"L W/ 5/16-18 X 5/8"THREAD, RUBBER 2503917
$17.84
3
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900958 Cap Screw, Hex Hd., 5/16-18 x 1/2" for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
5
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900141 Hex Nut, 5/16-18 for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
8
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900024 Lock Washer 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
Diamond Products RADIATOR HOSE, 1" UPPER CC4144D 6045102
$125.00
12
Diamond Products RADIATOR HOSE, LOWER CC4144D 3202129
$78.57
14
Diamond Products HOSE CONNECTION SLEEVE 6045098
$79.22
15
3400615 Hose Clamp #20 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$6.99
16
Diamond Products CLAMP, 1-3/4" CUSHION (1/2"WIDE FOR 1/4"SCREW) 2503916
$8.65
17
2900008 Cap Screw, Hex Hd., 1/4-20 x 1" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
18
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
19
Diamond Products COOLANT RECOVERY KIT, INCLUDES RESERVOIR TANK, RADIATOR CAP, RECOVERY TUBE 2502624
$112.00
10
2900082 Cap Screw, Hex Hd., 1/4-20 x 1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
7
Call for Price call for price call for price
13
Call for Price call for price call for price
