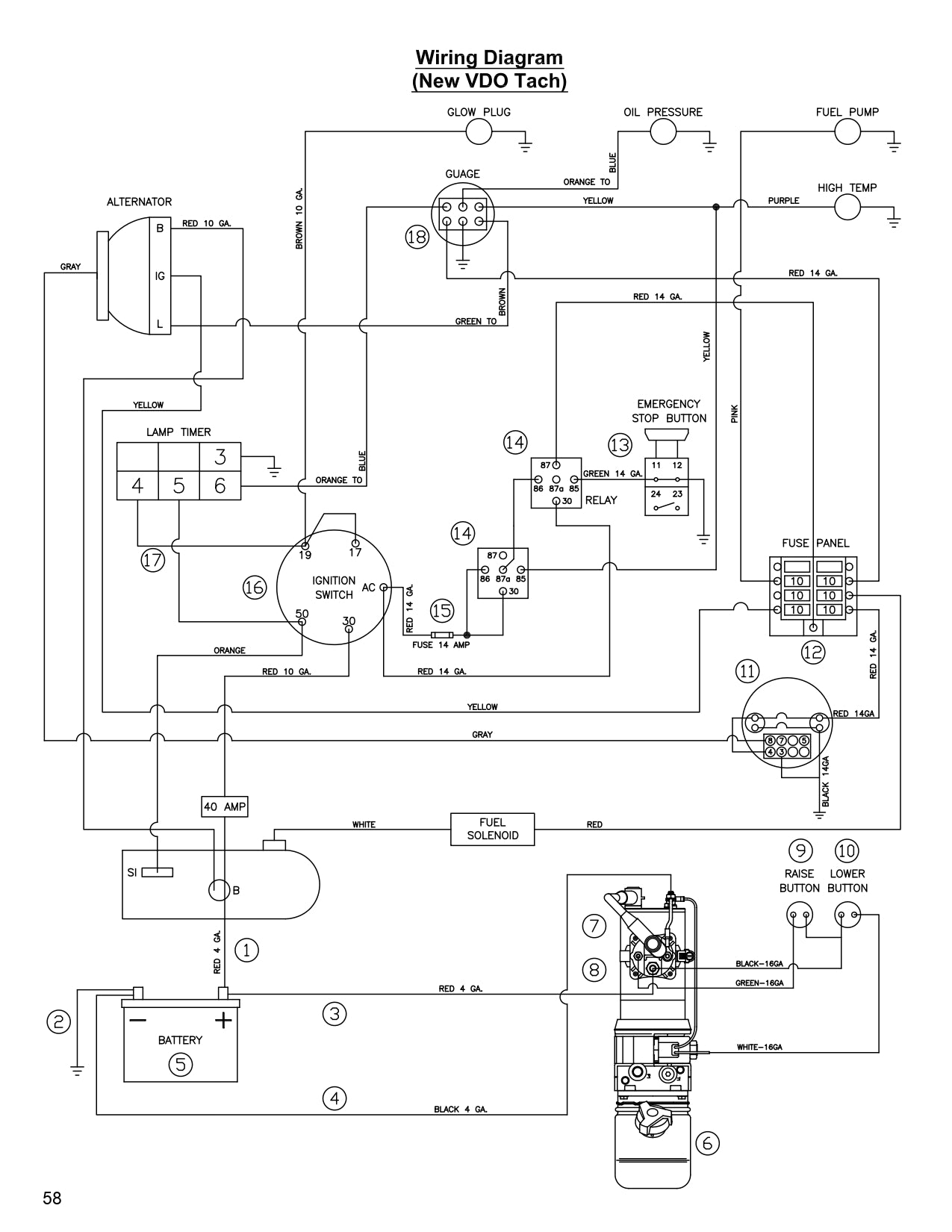

CC4144D wiring Diagram

CC4144D wiring Diagram

  • CC4144D wiring Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2800073 Battery Cable, Positive (Red) for CC3535 Concrete Saw Core Cut by Diamond Products
$119.79
2
2800072 Battery Cable, Negative (Black) for CC3535 Concrete Saw Core Cut by Diamond Products
$85.00
4
Diamond Products BATTERY CABLE 31" BLACK 6 GA., 5/16 EYELETS 6048092
$75.50
5
Diamond Products BATTERY, 12 VOLT GROUP 26 (525 CCA) 2800561
$250.00
6
2600540 Electro/Hydraulic Pump Unit for CG-1 MINI-GROOVER Core Cut by Diamond Products
Call for Price call for price call for price
7
Diamond Products SOLENOID SWITCH 12VDC 2703228
$227.70
8
Diamond Products MOUNTING STRAP 2703229
$47.35
9
2800372 Pushbutton Switch, Raise for CC3500J Concrete Saw Core Cut by Diamond Products
$81.78
10
2800373 Pushbutton Switch, Lower for CC3500J Concrete Saw Core Cut by Diamond Products
$86.09
12
Diamond Products FUSE PANEL 8 CIRCUIT 2800696
$66.20
13
2801367 E-Stop Switch for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$81.10
14
2800144 Relay, 50 Amp, 12V, SPDT for CC6561 Concrete Saw Core Cut by Diamond Products
$27.64
15
Diamond Products FUSE, GLASS AGC 15A 2800857
$3.99
15
Diamond Products FUSE HOLDER, IN-LINE W/ WIRE 20A, 32V 2800856
$13.42
16
2705000 Ignition Keys Only (Pair) for CC6561 Concrete Saw Core Cut by Diamond Products
$32.00
18
Diamond Products GAUGE, 4 WARNING LIGHT 2705003
$330.66
3
2800095 Solenoid Cable, 14" Positive (Red) for CC6571 Concrete Saw Core Cut by Diamond Products
$55.30
11
6010421 Tachometer/Hour Meter fits CC4144D by Core Cut Diamond Products
$593.01
17
2800855 Wire Harness, Lamp Timer fits CC4144DXL by Core Cut Diamond Products
Call for Price call for price call for price
