CC4144DXL-3 Depth Indicator Assembly Parts

CC4144DXL-3 Depth Indicator Assembly Parts

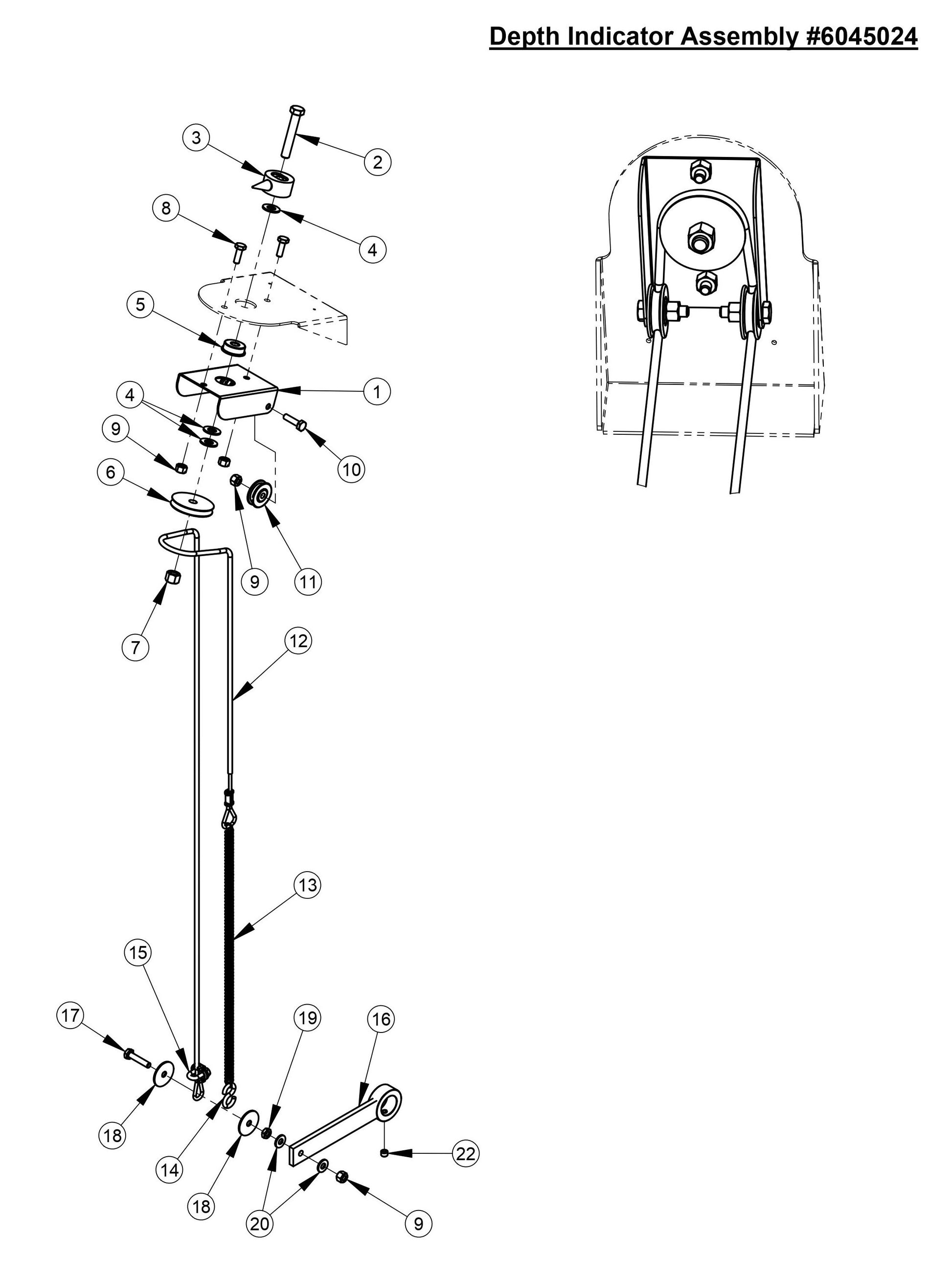

  • CC4144DXL-3 Depth Indicator Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010092 Depth Indicator Mount Bracket for CC3500J Concrete Saw Core Cut by Diamond Products
$18.00
2
2900079 Cap Screw, Hex Hd., 3/8-16 x 2-1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
3
6010091 Depth Indicator Pointer for CC3500J Concrete Saw Core Cut by Diamond Products
$53.95
4
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2500145 Flange Bearing, 3/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$49.36
6
6010093 Cable Pulley, 2" for CC3500J Concrete Saw Core Cut by Diamond Products
$37.61
7
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900144 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900008 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2500155 Cable Pulley, 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$24.00
13
2500196 Spring, 3/8" x 15" for CC3500J Concrete Saw Core Cut by Diamond Products
$16.14
14
02250129-276 Harn Eng/Comp 600H-1050 Cat C9 by Sullair
$1,132.80
15
2500214 Cable Clamp for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
18
2900083 Fender Washer 1/4" x 1-1/4" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
19
2900358 Jam Nut, 1/4-20 for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
20
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
22
2900036 Set Screw, Soc. Hd., 5/16-18 x 1/4" for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
12
6011176 Depth Indicator Cable with Crimp, 53" fits CC4144DXL-3 by Core Cut Diamond Products
$47.34
16
6045166 Depth Indicator Weldment fits CC4144DXL-3 by Core Cut Diamond Products
$52.53
17
2900052 Cap Screw, Hex Hd., 1/4-20 x 1-1/4" fits CC4144DXL-3 by Core Cut Diamond Products
$6.00
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
