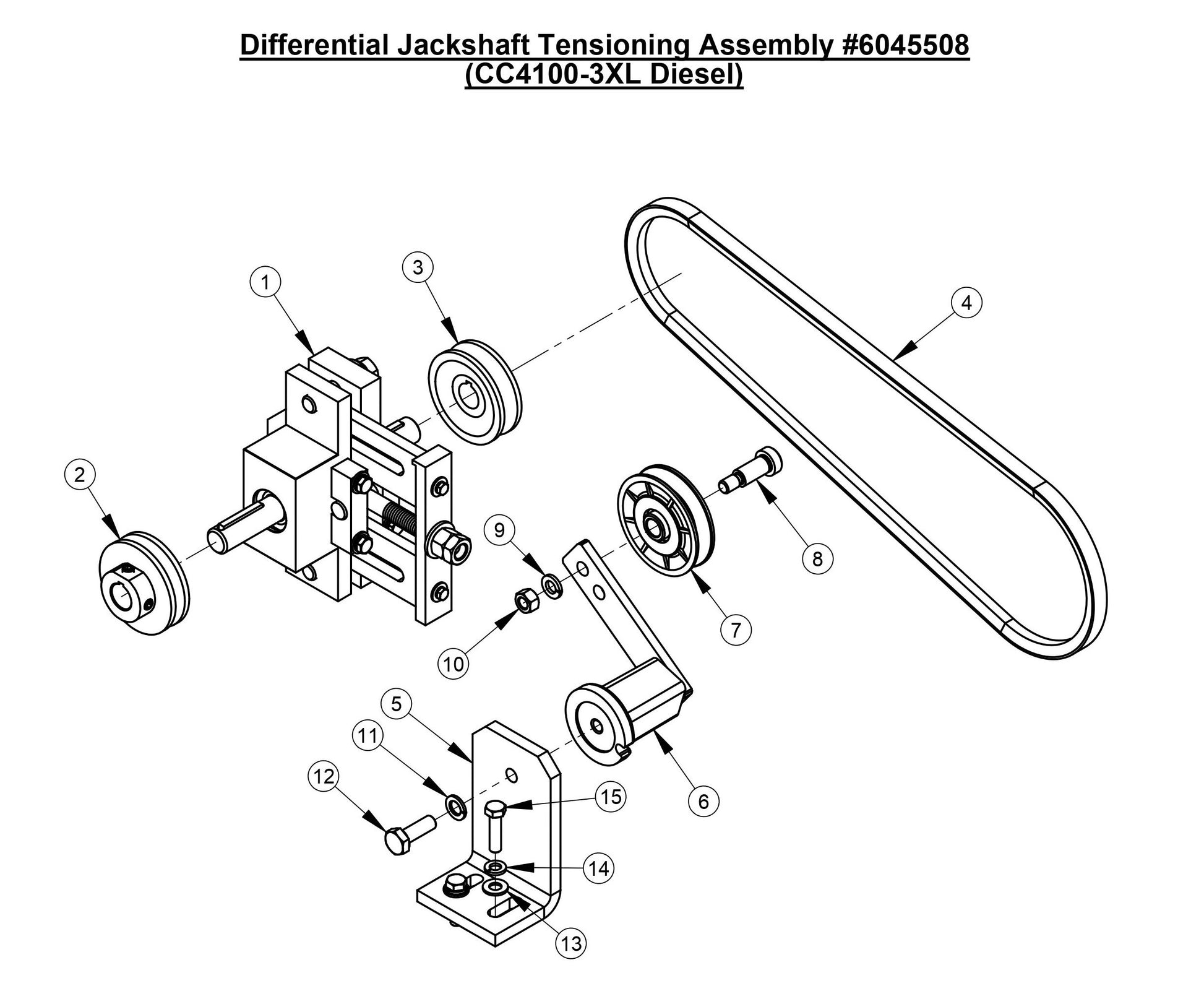

CC4144DXL-3 Differential Jackshaft Tensioning Assembly Parts (CC4100-3XL Diesel)

CC4144DXL-3 Differential Jackshaft Tensioning Assembly Parts (CC4100-3XL Diesel)

  • CC4144DXL-3 Differential Jackshaft Tensioning Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
6045199 Pulley 2.75" Single Groove w/Setscrews for CC5555-3 Concrete Saw Core Cut by Diamond Products
$253.44
3
2503202 Pulley 2.75" Single Groove for CC5555-3 Concrete Saw Core Cut by Diamond Products
$34.44
6
2502666 Idler Tensioner for CG-1 MINI-GROOVER Core Cut by Diamond Products
$304.92
7
2502669 Idler Pulley for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$62.61
9
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900033 Hex Nut 3/8-16 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900321 Lock Washer M10 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
2900223 Cap Screw, Hex Hd., M10 x 30mm for CC1507E Basement Saw Core Cut by Diamond Product
$2.99
13
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
2900217 Cap Screw Hex Hd. 5/16-18 x 1-1/4" Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
1
Diamond Products DIFF JACK TENSION BODY ASSY (CC4100 SAWS) 6045512
$897.50
4
Diamond Products V-BELT AX38 2503613
$33.36
5
6045074 Differential Belt Tensioner Mount fits CC4120/3EXL-3 by Core Cut Diamond Products
$53.43
8
1/2"X1" Shoulder Screw 2900587 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$9.96
View full details
