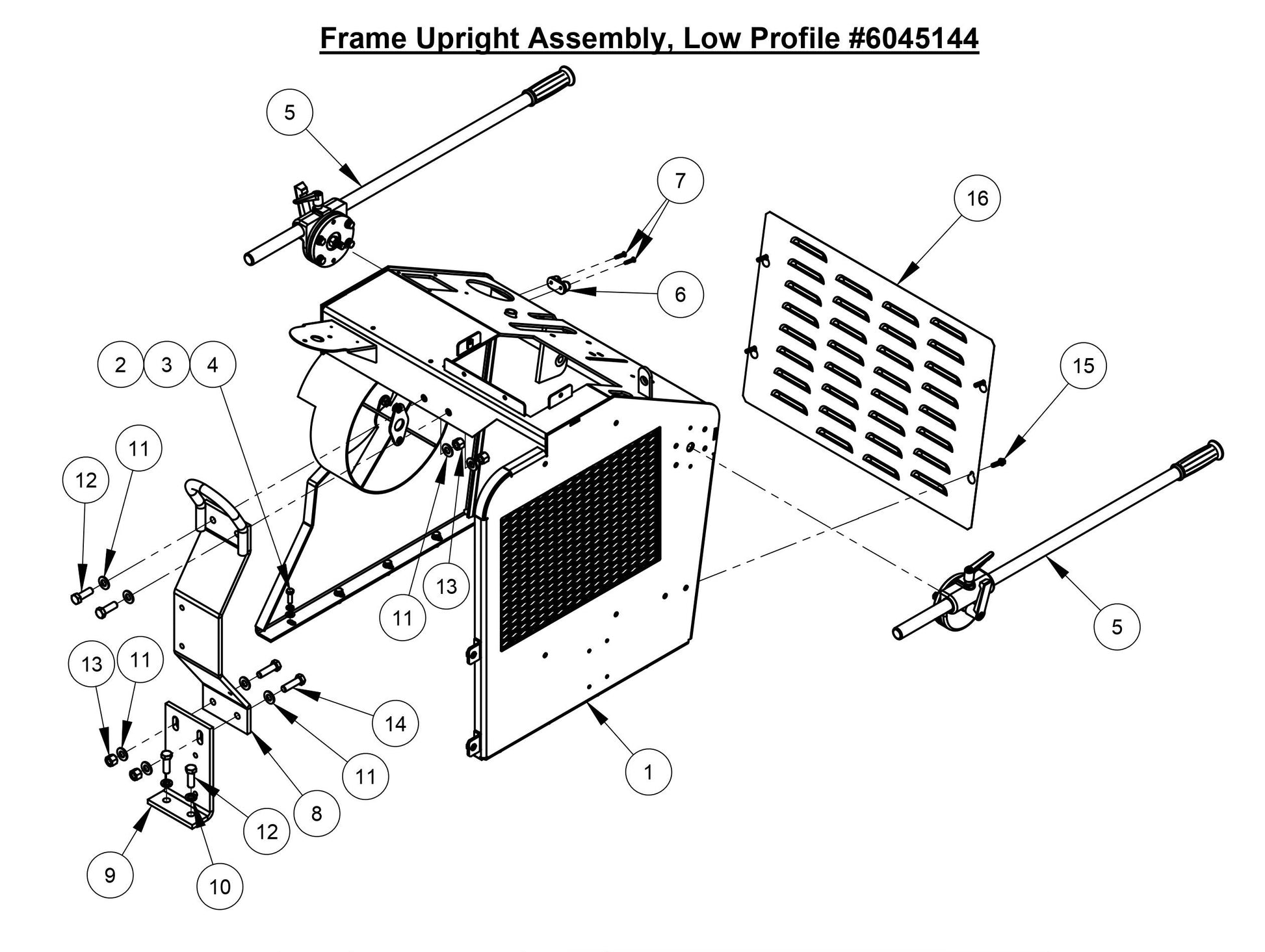

CC4144DXL-3 Frame Upright Assembly Parts

CC4144DXL-3 Frame Upright Assembly Parts

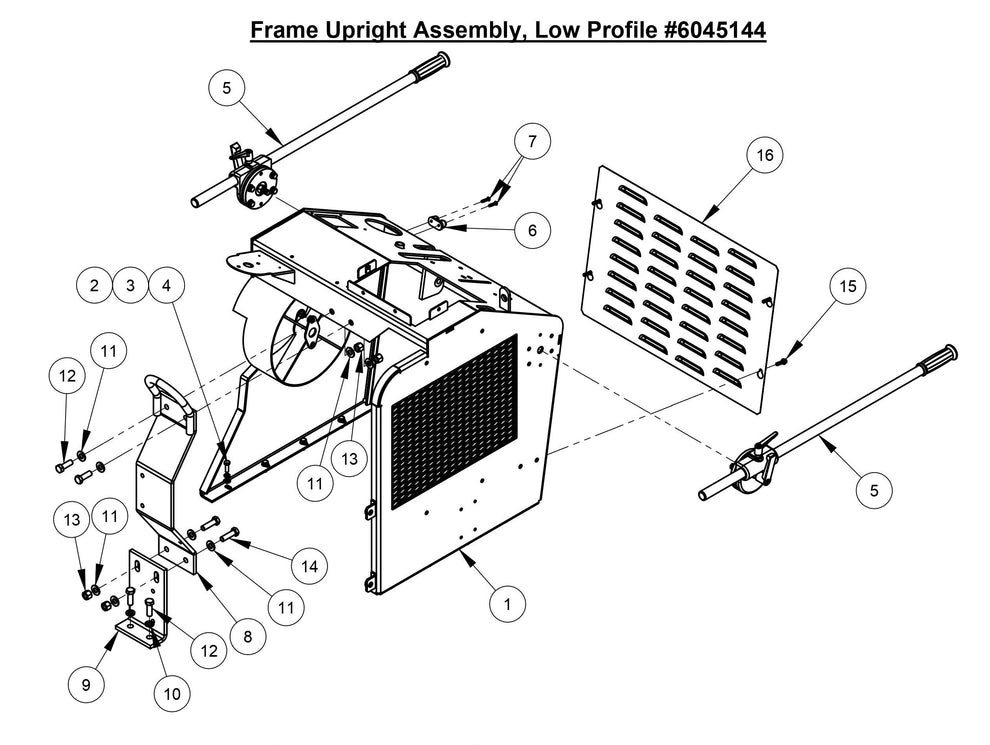

  • CC4144DXL-3 Frame Upright Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
3
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900138 5/16-18x1.00 HEX CAP SCREW for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
6
2501427 Rope Cleat for CC3500J Concrete Saw Core Cut by Diamond Products
$100.00
7
2900483 Tap Screw, Flat Hd., #10-24 x 1" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
10
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
12
2900499 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
13
2900026 Lock Nut 1/2-13 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900139 Cap Screw, Hex Hd., 1/2-13 x 1- 3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
1
6045140 CC4144D Upright Weldment (Low Profile) fits CC4144DXL-3 by Core Cut Diamond Products
$1,740.42
5
6011333 Handle Assembly fits CC4144DXL-3 by Core Cut Diamond Products
$1,302.00
8
6045141 Frame Base Stiffener Weldment fits CC4144DXL-3 by Core Cut Diamond Products
Call for Price call for price call for price
9
6045064 Frame Base Stiffener Bracket fits CC4144DXL-3 by Core Cut Diamond Products
$86.95
15
2900820 Cap Screw, Flange Hd., 1/4"-20 x 1" fits CC4144DXL-3 by Core Cut Diamond Products
$3.99
16
6045094 Rear Cover Screen fits CC4144DXL-3 by Core Cut Diamond Products
Call for Price call for price call for price
