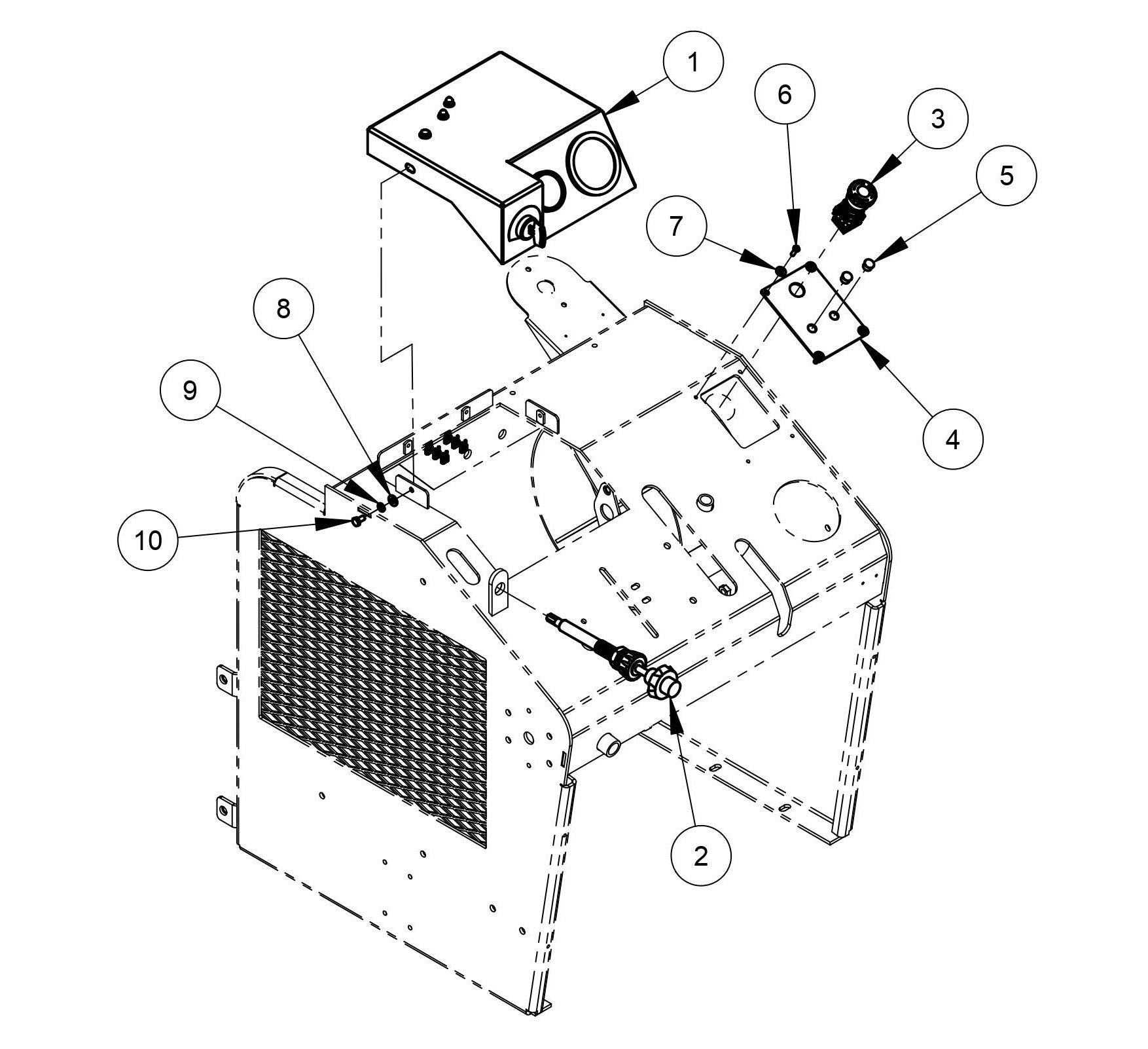

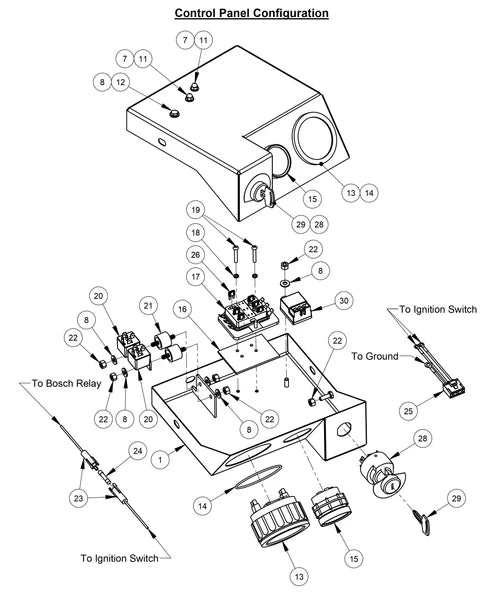

CC4144DXL-3 Control Panel Configuration Parts (Low Profile)

CC4144DXL-3 Control Panel Configuration Parts (Low Profile)

  • CC4144DXL-3 Control Panel Configuration Parts (Low Profile)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
2801367 E-Stop Switch for CC3500J Concrete Saw Core Cut by Diamond Products
$81.00
5
2500204 Plug 1/2" Hole for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900159 Machine Screw, Rd. Hd., #10-24 x 5/8" for CC1507E Basement Saw Core Cut by Diamond Product
$2.99
7
2900016 Flat Washer, #10 U.S. for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900024 Lock Washer 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900082 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
1
6045134 Gage Panel Weldment fits CC4144DXL by Core Cut Diamond Products
$217.80
2
2503183 Vernier Throttle Cable fits CC4144DXL by Core Cut Diamond Products
$203.94
4
6045171 Switch Plate fits CC4144D by Core Cut Diamond Products
Call for Price call for price call for price
11
2900840 Acorn Nut, #10-24 fits CC4144DXL by Core Cut Diamond Products
Call for Price call for price call for price
12
2900144 Cap Screw, Hex Hd., 1/4-20 x 3/4" fits CC4144DXL by Core Cut Diamond Products
$6.00
13
6010893 Tachometer / Hour meter (VDO) Calibrated fits CC4144DXL-3 by Core Cut Diamond Products
$238.59
14
2400628 O-Ring #152 fits CC4144DXL by Core Cut Diamond Products
$6.00
15
2705003 Cluster Gage, 4 Warning Light fits CC4144DXL-3 by Core Cut Diamond Products
$330.66
16
6045459 Rubber Gasket, 1/8" x 2-1/2" x 3-3/8" fits CC4144DXL by Core Cut Diamond Products
$51.03
17
2800925 Fuse Panel, 6 Circuit fits CC4144DXL-3 by Core Cut Diamond Products
$36.67
18
2900038 Lock Washer, #10 Split fits CC4144DXL by Core Cut Diamond Products
$6.00
19
2900172 Machine Screw, Rd. Hd., #10-24 x 1-1/4" fits CC4144DXL by Core Cut Diamond Products
$6.00
20
2800144 Relay, 50 Amp, 12V, SPDT fits CC4144DXL by Core Cut Diamond Products
$26.65
21
2503617 Vibration Isolator fits CC4144DXL by Core Cut Diamond Products
$37.33
22
2900010 Lock Nut, 1/4-20 Nylon fits CC4144DXL by Core Cut Diamond Products
$6.00
23
2800856 In-Line Fuse Holder fits CC4144DXL by Core Cut Diamond Products
$13.42
24
2800857 Fuse, 15 Amp fits CC4144DXL-3 by Core Cut Diamond Products
$3.99
25
2800855 Wire Harness, Lamp Timer fits CC4144DXL-3 by Core Cut Diamond Products
Call for Price call for price call for price
26
2801439 Fuse, 10 Amp Mini (Red) fits CC4144DXL by Core Cut Diamond Products
$7.50
27
6045245 Control Panel Wiring Assembly fits CC4144DXL by Core Cut Diamond Products
$68.22
28
2705001 Ignition Switch 4144D fits CC4144DXL by Core Cut Diamond Products
$157.41
29
2705000 (Ignition Key Only) fits CC4144DXL by Core Cut Diamond Products
$32.00
30
2705006 Timer, 12V DC fits CC4144DXL by Core Cut Diamond Products
$169.29
