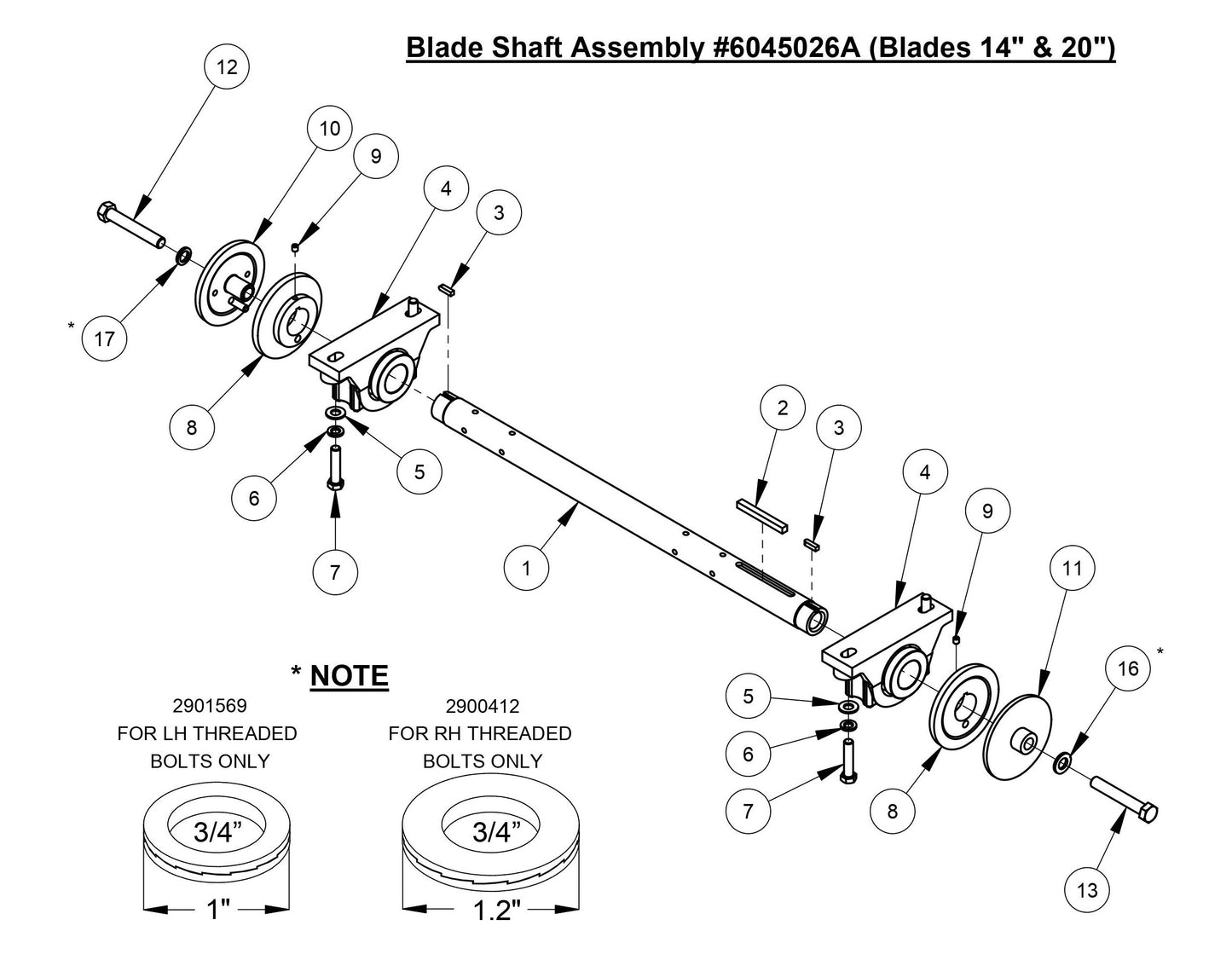

CC4144DXL Blade Shaft Assembly Parts (Blades 14'' and 20'')

CC4144DXL Blade Shaft Assembly Parts (Blades 14'' and 20'')

  • CC4144DXL Blade Shaft Assembly (Blades 14'' and 20'')
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
6010040 Key, 1/4" Sq. x 15/16" for CC3500J Concrete Saw Core Cut by Diamond Products
$10.00
5
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
6
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900192 Cap Screw, Hex Hd., 1/2-13 x 2-1/4" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$4.99
8
6010255 Inner Flange 5" for CC3500J Concrete Saw Core Cut by Diamond Products
$97.00
9
2900142 Set Screw, Soc. Hd., 5/16-18 x 3/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
10
6047907 Outer Flange 5" with Pin for CC3500J Concrete Saw Core Cut by Diamond Products
$143.55
12
2900130 Cap Screw, Hex Hd., 5/8-11 x 4" LH for CC3500J Concrete Saw Core Cut by Diamond Products
$30.88
13
2900146 Cap Screw, Hex Hd., 5/8-11 x 4" for CC3500J Concrete Saw Core Cut by Diamond Products
$15.86
17
2901569 Lock Washer, Wedge 5/8" LH for CC6540E CONCRETE SAW Core Cut by Diamond Products
$15.10
16
2900412 Lock Washer, Wedge 5/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$12.31
1
Diamond Products BLADE SHAFT (CC4144D) (29" OAL) 6045055
$1,592.91
2
6012065 Key, 3/8" Sq. x 3-1/2 fits CC3700E by Core Cut Diamond Products
$6.99
4
2502401 Bearing, 1-11/16" Pillow Block fits CC4144D by Core Cut Diamond Products
$1,077.12
11
6045213 NLA Flange Cover Weldment 5" fits CC4144D by Core Cut Diamond Products
Call for Price call for price call for price
