CC4144D-XL, CC4144DXL-3 Cooling Fan Assembly Parts

CC4144D-XL, CC4144DXL-3 Cooling Fan Assembly Parts

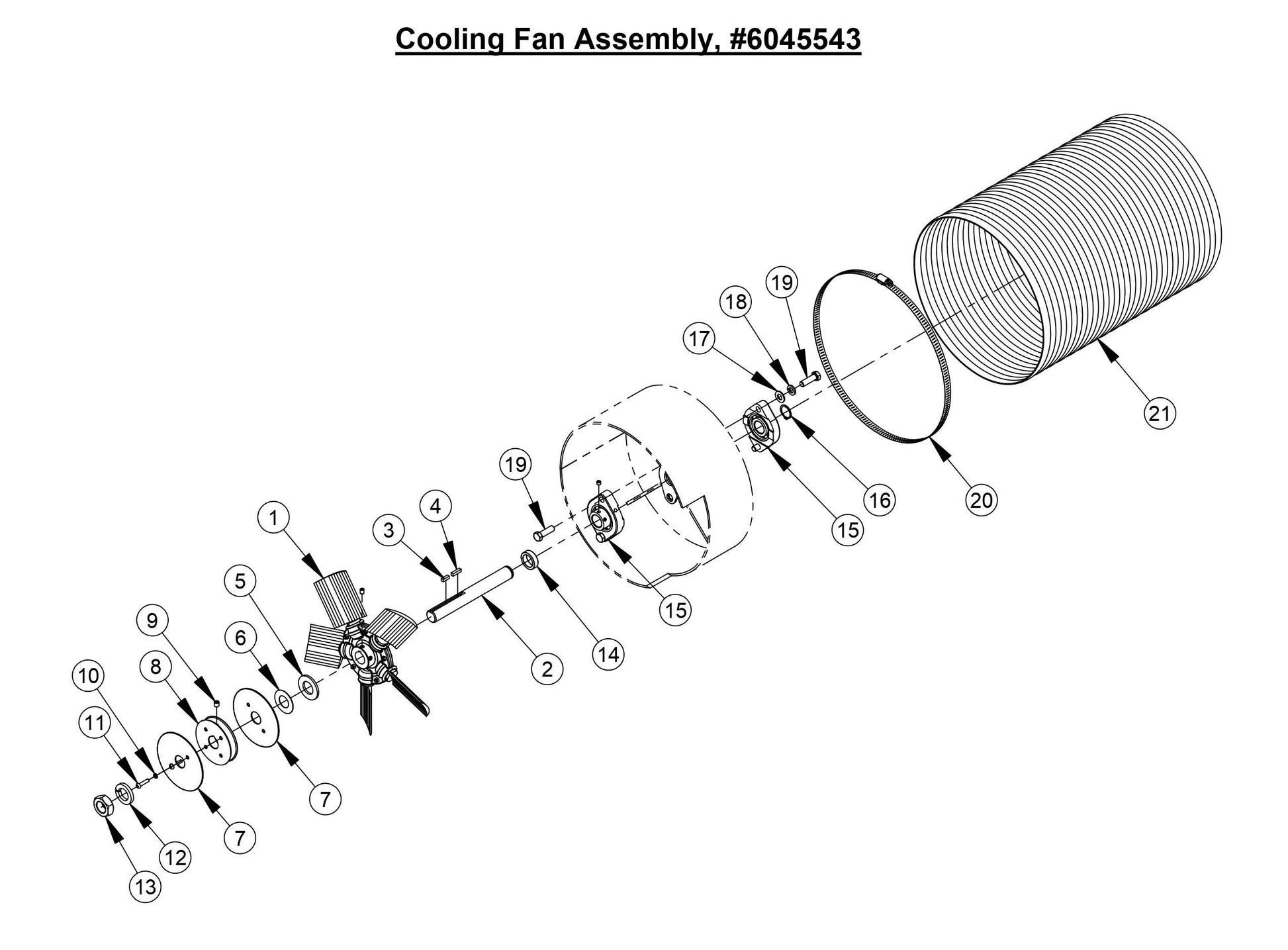

  • CC4144DXL Cooling Fan Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
5
2900425 Flat Washer, 7/8" SAE for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
9
2900142 Set Screw, Soc. Hd., 5/16-18 x 3/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
10
2900038 Lock Washer, #10 Split for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900165 Machine Screw, Rd. Hd., #10-24 x 7/8" for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
13
2900626 Jam Nut 7/8-14 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$6.99
17
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
18
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
19
2900013 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
1
6045337 Fan Assembly fits CC4144DXL-3 by Core Cut Diamond Products
$281.16
2
6045332 Fan Shaf fits CC4144DXL-3 by Core Cut Diamond Products
$243.54
3
2900919 Key, 3/16" Sq. x 9/16" fits CC4144DXL-3 by Core Cut Diamond Products
$6.99
4
6048018 Key, 3/16" Sq. x 3/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
6
2501941 Thrust Bearing Washer fits CC4144DXL-3 by Core Cut Diamond Products
$16.10
7
6045336 4.25" Pulley Guard fits CC4144DXL-3 by Core Cut Diamond Products
$46.98
8
6045334 Pulley, 4L x 3-1/4" fits CC4144DXL-3 by Core Cut Diamond Products
$533.61
12
2901110 Lock Washer, 7/8" Split fits CC4144DXL-3 by Core Cut Diamond Products
$3.99
14
6045335 Fan Shaft Spacer fits CC4144DXL-3 by Core Cut Diamond Products
$18.45
15
2503841 Bearing, 7/8" 2-Bolt Flange fits CC4144DXL-3 by Core Cut Diamond Products
$52.73
16
2502139 Retaining Ring, 7/8" External fits CC4144DXL-3 by Core Cut Diamond Products
$3.99
20
3202320 Hose Clamp, 2-1/16" - 17" fits CC4144DXL-3 by Core Cut Diamond Products
$31.29
21
6045095 Vent Duct, 12" OD x 18" fits CC4144DXL-3 by Core Cut Diamond Products
$65.48
