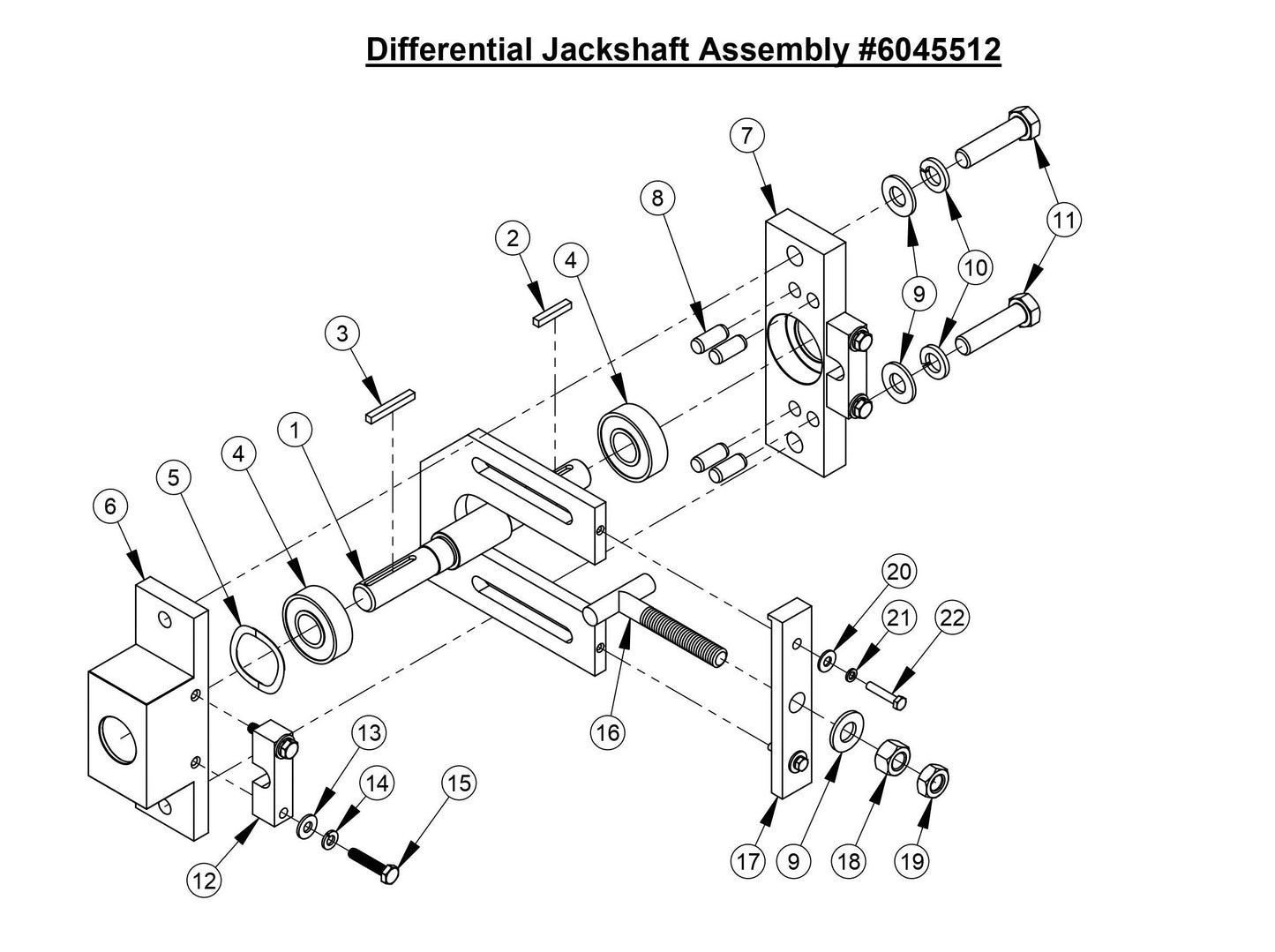

CC4144DXL Differential Jackshaft Assembly Parts

CC4144DXL Differential Jackshaft Assembly Parts

  • CC4144DXL Differential Jackshaft Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
2504732 Key 3/16" Sq. x 1-1/2" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.99
4
2501601 Bearing, Worm Shaft for CC1600 WALL SAW Core Cut by Diamond Products
$11.10
9
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
10
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900106 Cap Screw, Hex Hd., 1/2-13 x 2" for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
13
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900024 Lock Washer 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
2900052 1/4-20 x 1.25" Hex Head Cap Screw for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
16
2900632 T-Bolt, 1/2-13 for CC3500J Concrete Saw Core Cut by Diamond Products
$37.66
18
2900037 Hex Nut, 1/2-13 for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
19
2900129 Hex Nut, Jam, 1/2"-13 for CG-1 MINI-GROOVER Core Cut by Diamond Products
$1.99
20
2900016 Flat Washer #10 USS for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
21
2900038 Lock Washer, #10 Split for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
1
Diamond Products DIFFERENTIAL JACKSHAFT 6045473
$384.12
2
Diamond Products KEY,3/16" SQ X 1-1/8"LG 2501620
$3.99
6
Diamond Products OUTER TENSION BLOCK 6045471
$311.85
7
Diamond Products INNER TENSION BLOCK 6045472
$276.21
8
Diamond Products 10MM X 24MM DOWEL PIN 2901423
$8.23
12
6045454 Tension Block Clamp fits CC4120/3EXL-3 by Core Cut Diamond Products
$62.78
17
6045455 Static Tension Plate fits CC4120/3EXL-3 by Core Cut Diamond Products
$84.15
22
2900054 Machine Screw, Hex Hd., #10-24 x 1" fits CC4120/3EXL-3 by Core Cut Diamond Products
$2.99
5
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
