CC4144D-XL, CC4144D-3XL Front Pointer Assembly Parts

CC4144D-XL, CC4144D-3XL Front Pointer Assembly Parts

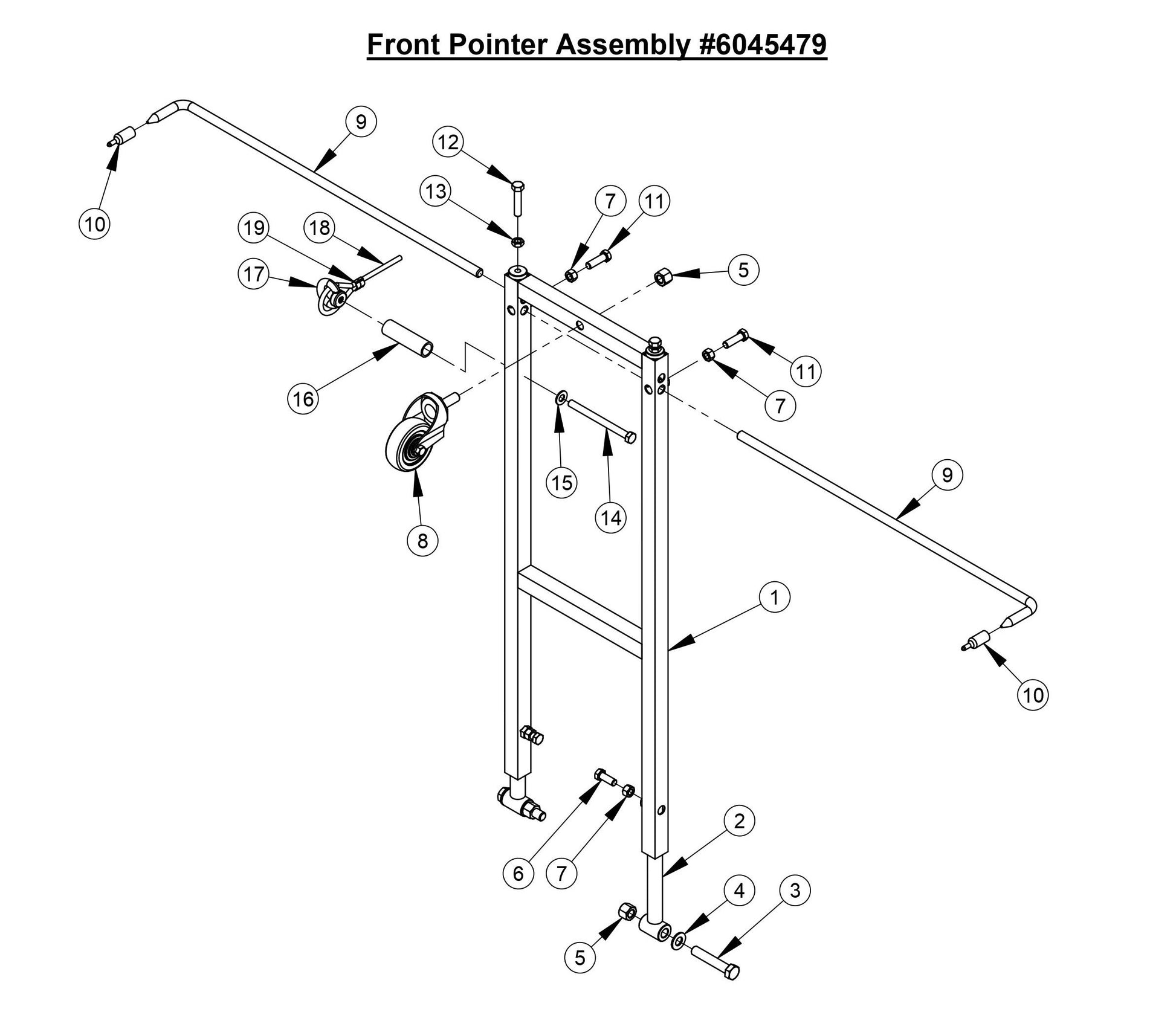

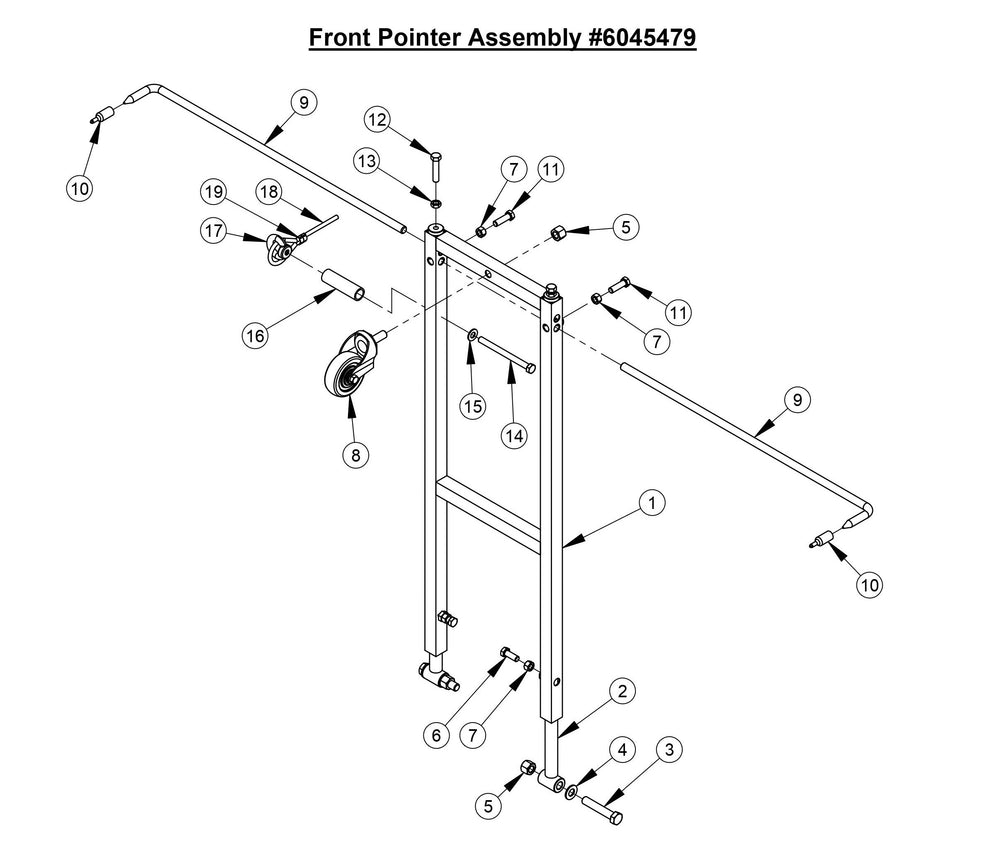

  • CC4144DXL Front Pointer Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
2900105 Cap Screw, Hex Hd., 1/2-13 x 2-3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$8.82
4
2900239 Friction Washer, 1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
5
2900026 Lock Nut 1/2-13 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900033 Hex Nut 3/8-16 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2501379 Caster 3" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$34.44
9
6010009 Front Pointer Rod for CC5555-3 Concrete Saw Core Cut by Diamond Products
$27.36
11
2900013 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900782 Jam Nut, 3/8-16 for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
14
2900375 Cap Screw, Hex Hd., 3/8-16 x 4-1/2" for CC1507E Basement Saw Core Cut by Diamond Product
$7.61
15
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
16
6010989 Spacer 3" Long for CC5555-3 Concrete Saw Core Cut by Diamond Products
$12.39
17
2900885 Eye Nut 3/8-16 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$29.42
18
6017241 Pointer Rope 11 Foot for CC3500J Concrete Saw Core Cut by Diamond Products
$15.00
19
3200221 Pinch Clamp, Two Ear for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
1
6011201 Front Pointer Frame fits CC4120/3EXL-3 by Core Cut Diamond Products
$226.71
10
2500740 Pointer Cap for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.99
12
2901592 Tap Screw, Hex Hd., 3/8-16 x 1-3/4" fits CC4120/3EXL-3 by Core Cut Diamond Products
$3.99
2
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
