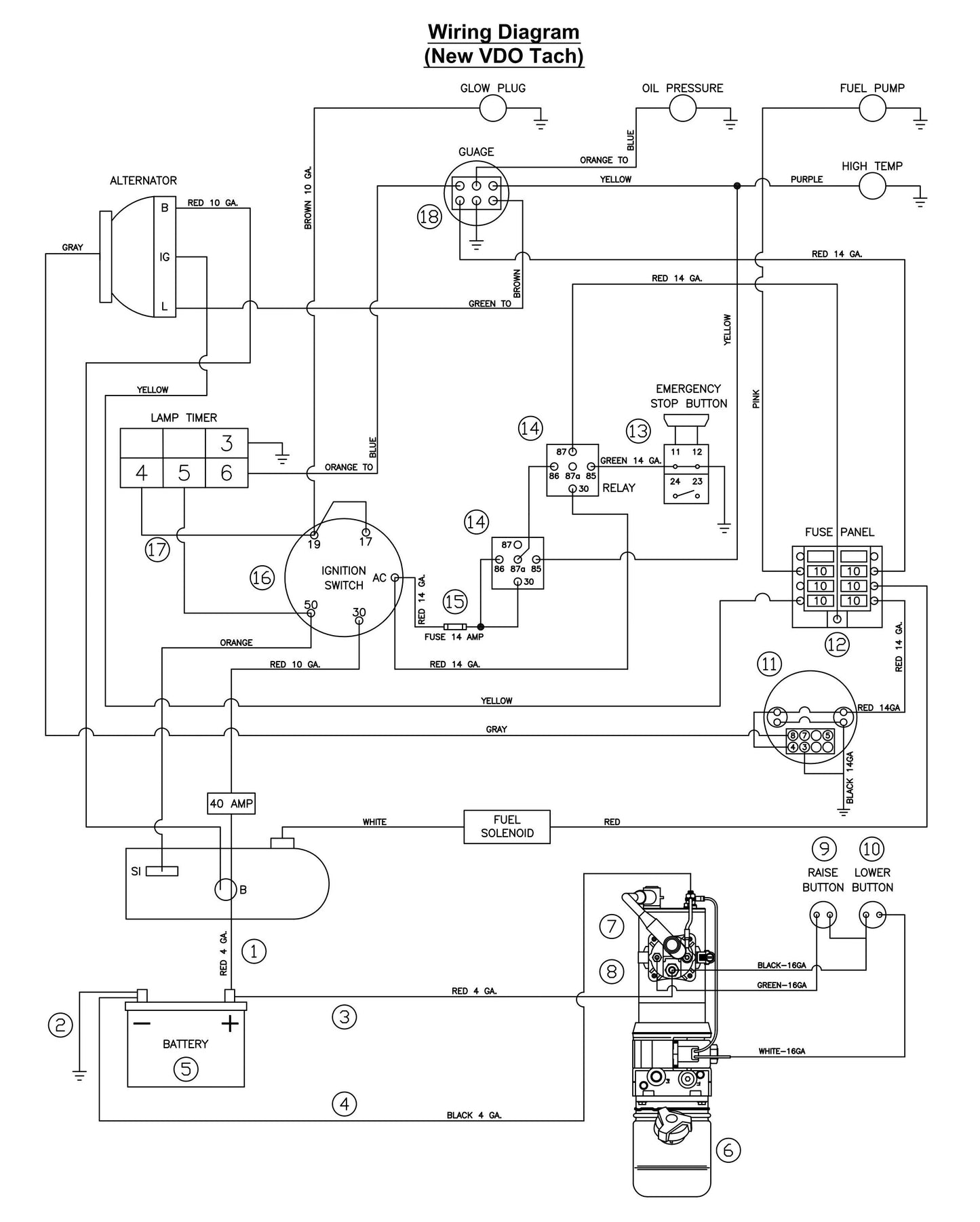

CC4144DXL Wiring Diagram

CC4144DXL Wiring Diagram

  • CC4144DXL Wiring Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2800073 Battery Cable, Positive (Red) for CC3535 Concrete Saw Core Cut by Diamond Products
$119.79
2
2800072 Battery Cable, 30" Negative (Black) for CC3500J Concrete Saw Core Cut by Diamond Products
$85.00
3
2800095 Solenoid Cable, 14" Positive (Red) for CC3500J Concrete Saw Core Cut by Diamond Products
$46.84
4
6048092 Battery Cable Assy., Black for CC190PRO Concrete Saw Core Cut by Diamond Products
$49.53
6
2600540 Electro/Hydraulic Pump Unit for CG-1 MINI-GROOVER Core Cut by Diamond Products
Call for Price call for price call for price
13
2801367 E-Stop Switch for CC3500J Concrete Saw Core Cut by Diamond Products
$81.00
5
2800561 Battery, 12 Volt, Group Size 26-60 fits CC4144DXL by Core Cut Diamond Products
$318.00
7
2703228 Solenoid Switch 12VDC fits CC4144DXL by Core Cut Diamond Products
$227.70
8
2703229 Mounting Strap fits CC4144DXL by Core Cut Diamond Products
$47.35
9
2800372 Pusbutton Switch, Raise fits CC4144DXL by Core Cut Diamond Products
$81.78
10
2800373 Pusbutton Switch, Lower fits CC4144DXL by Core Cut Diamond Products
$86.09
11
6010421 Tach/Hour Meter (VD)) Calibrated fits CC4144DXL by Core Cut Diamond Products
$593.01
12
2800925 Fuse Block, 6 Circuit, Mini ATM fits CC4144DXL by Core Cut Diamond Products
$36.67
14
2800144 Relay fits CC4144DXL by Core Cut Diamond Products
$26.65
15
2800857 Fuse, 15 Amp fits CC4144DXL by Core Cut Diamond Products
$3.99
15
2800856 In-Line Fuse Holder fits CC4144DXL by Core Cut Diamond Products
$13.42
16
2700501 Ignition Switch, CC4144D fits CC4144DXL by Core Cut Diamond Products
$104.38
16
2705000 (Ignition Key Only) fits CC4144DXL by Core Cut Diamond Products
$32.00
17
2800855 Wire Harness, Lamp Timer fits CC4144DXL by Core Cut Diamond Products
Call for Price call for price call for price
18
2705003 Cluster Gage, 4 Warning Light fits CC4144DXL by Core Cut Diamond Products
$330.66
