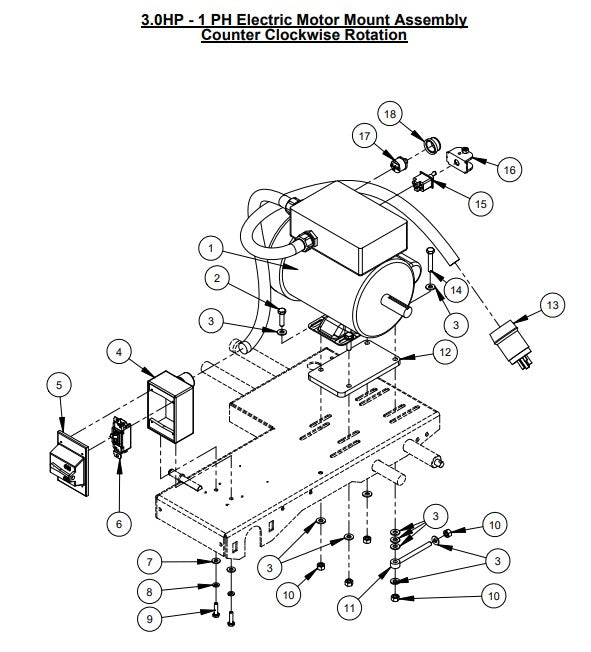

CC500 MXL2 3.0HP-1PH Electric Motor Mount Assembly Counter Clockwise Rotation

CC500 MXL2 3.0HP-1PH Electric Motor Mount Assembly Counter Clockwise Rotation

  • CC500 MXL2 3.0HP-1PH Electric Motor Mount Assembly Counter Clockwise Rotation
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600575 Baldor 3HP 1PH 220V-50 CCW Rotation for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$1,792.89
2
2900313 Cap Screw, Hex Hd., M8-1.25 x 30mm for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$4.99
3
2901583 M8 Washer (18mm OD) for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$2.99
4
2701762 Switch Box for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$546.48
5
2800309 Switch Box Lid W/Gaskets & Screws for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$421.74
6
2800232 Switch, On/ Off for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$366.30
7
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900024 Lock Washer 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900303 Lock Nut, M8-1.25 Nylon Insert for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
11
2902021 D18 x d8 - M8 x 1.25 x 87L Swing bolt for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$24.75
12
6030398 Motor Offset Mounting Plate for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$85.01
13
2800087 Plug, Nema L5-20P,125VAC-20Amp for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$28.79
14
2900336 Cap Screw, Hex Hd., M8-1.25 x 45mm for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$3.99
15
2800159 Toggle Switch, DPDT, On/On for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$141.57
16
2704740 Guard for Voltage Switch for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$39.82
18
2800354 Rubber Reset Cover for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$24.75
17
2801028 Thermal Overload Switch - 3HP Baldor for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$62.41
