CC500 MXL2 Diaphragm Pump Assembly parts Gas Model

CC500 MXL2 Diaphragm Pump Assembly parts Gas Model

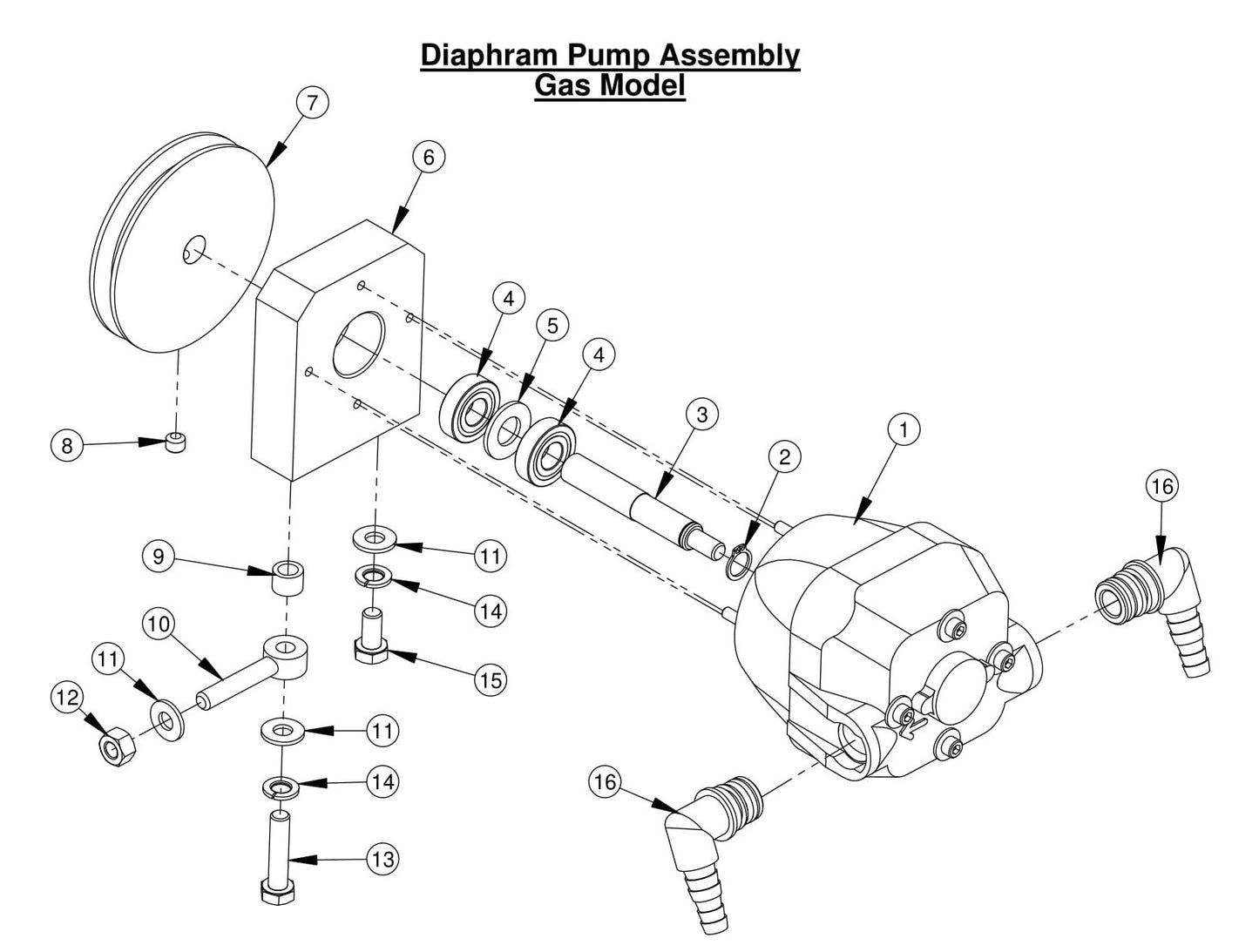

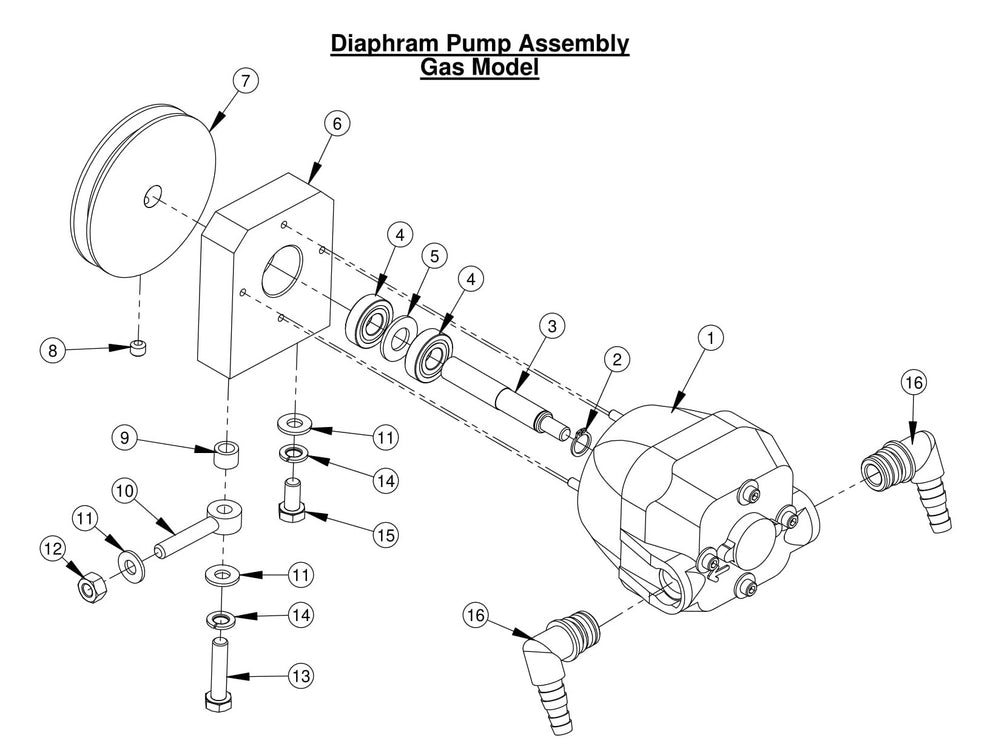

  • CC500MXL2 Diaphram Pump Assembly Gas Model
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600288 Diaphram Pump for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$302.94
2
2502247 Retaining Ring, Ext 12mm for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$8.26
3
6030428 Diaphragm Pump Shaft for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$58.11
4
2708042 6001 Bearing 12mm ID X 28mm OD X 8mm for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$90.50
5
2900239 Friction Washer 1/2" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
6
6030429 Pump Bearing Stand for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$110.00
7
6030431 1/2" (12.7mm) Bore V-belt pulley for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$110.00
8
2900036 Set Screw, Soc. Hd., 5/16-18 x 1/4" for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$2.99
9
6030411 Spacer, Outter Cart for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$6.66
10
2902023 D18 x d8 - M8 x 1.25 x 40L Eyebolt for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$26.90
11
2901583 M8 Washer (18mm OD) for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$2.99
12
2900303 Lock Nut, M8-1.25 Nylon Insert for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
13
2900760 Cap Screw, Hex Hd., M8-1.25 x 35mm for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$3.99
14
2900763 Lock Washer M8 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
2900868 Cap Screw, Hex Hd., M8-1.25 x 16mm for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$2.99
16
2702175 Port Fitting, 3/8" Barb 90 Degree for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$18.30
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
