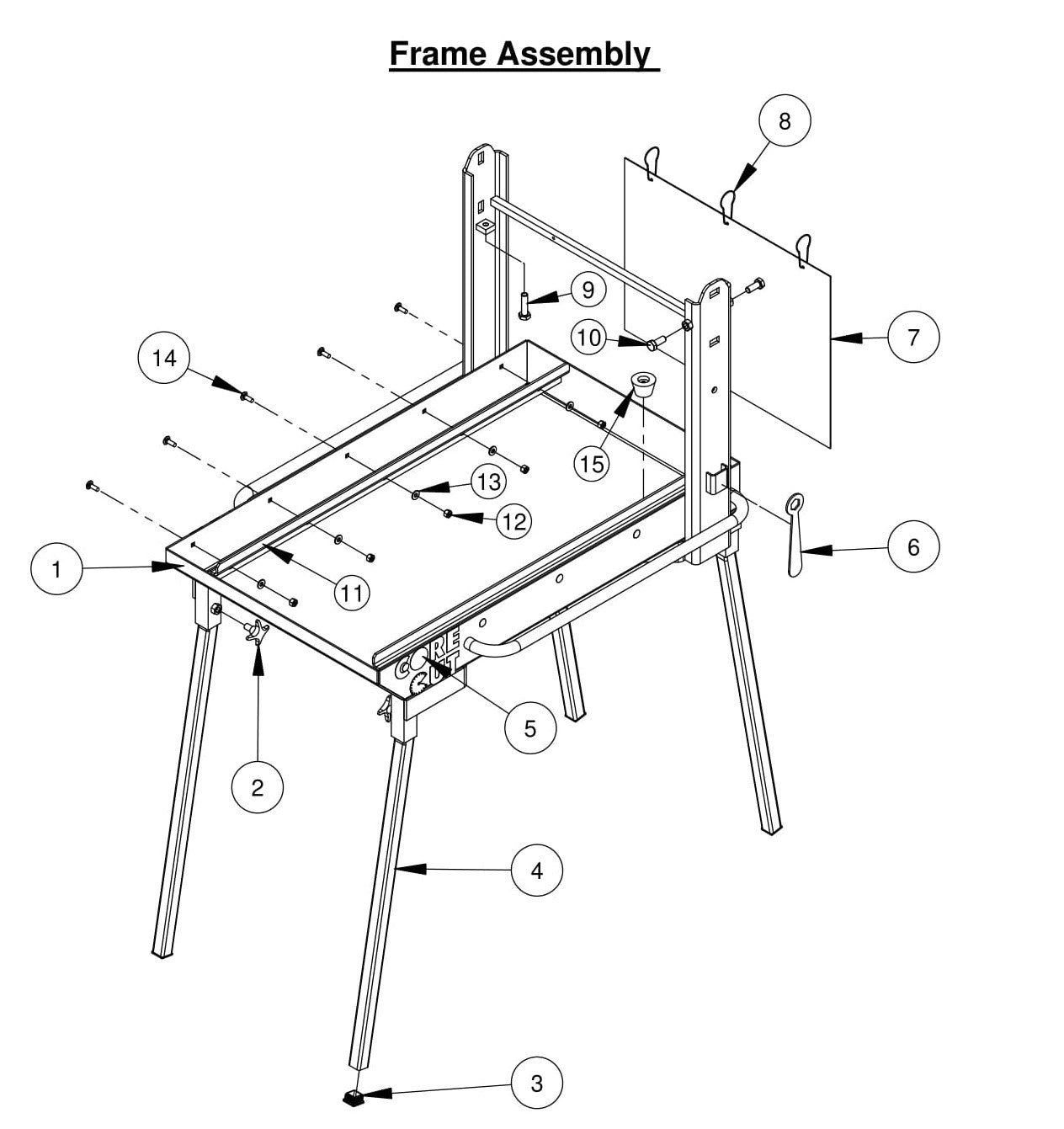

CC500 MXL2 Frame Assembly Parts

CC500 MXL2 Frame Assembly Parts

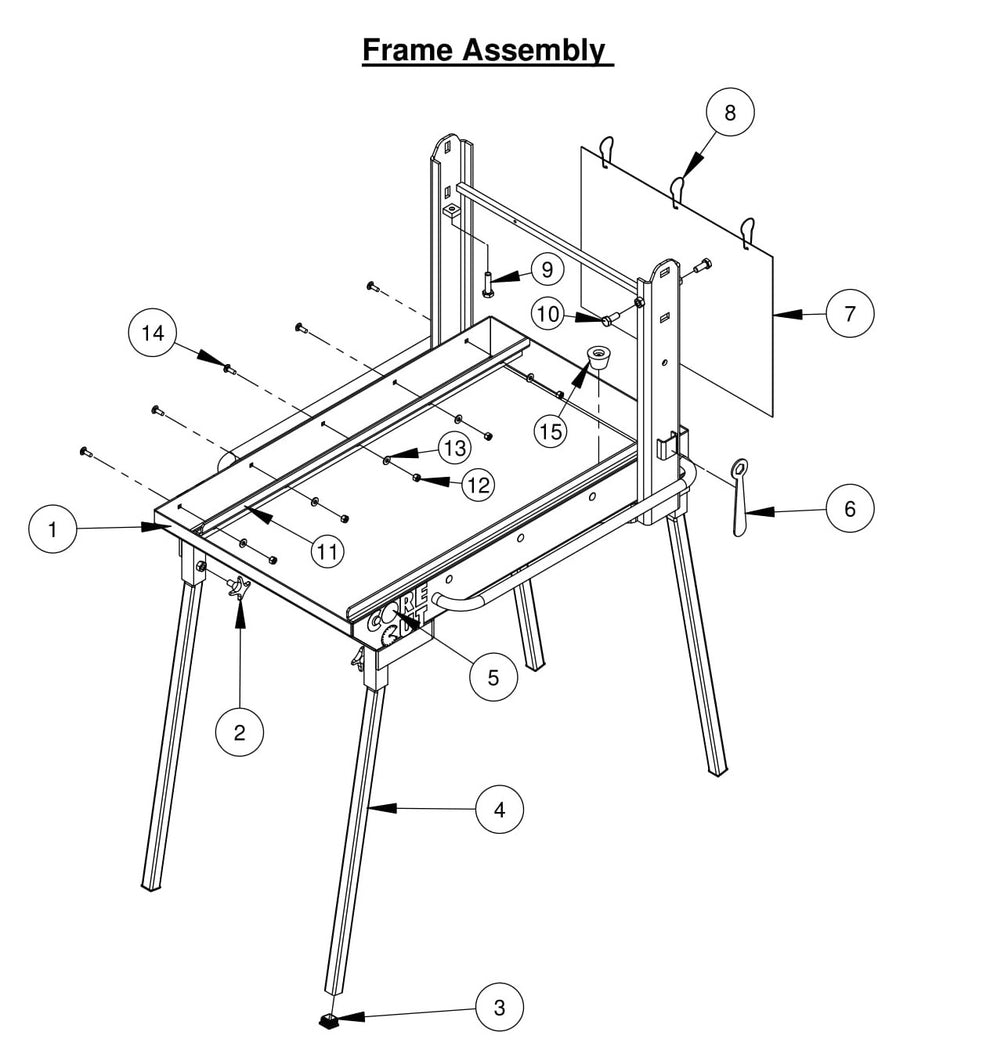

  • CC500MXL2 Frame Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6030395 Frame Weldment for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$816.75
2
2907007 M10 x 15L Knob for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$7.18
3
2506354 25mm Square tube cap for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$9.71
4
6030423 Leg for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$80.71
5
1800506 Core Cut Decal for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$11.40
6
6030021 Hex Wrench, 3/4" for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$28.24
7
6030030 Splash Curtain for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$37.92
8
2500816 Curtain Ring, 1" for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$2.99
9
2900799 Cap Screw, Hex Hd., M10-1.25 x 40mm for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$3.99
10
2900333 Cap Screw, Hex Hd., M10-1.5 x 25mm for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
11
6030404 Frame Rails CC500MXL2 for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$91.47
12
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900591 RHSNBOLT 0.25-20 X 0.75-N for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$2.99
15
6043052 Drain Plug with Chain for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$16.14
View full details
