CC5048DCV, CC5048DCV-3, CC5049 Hydraulic Lift Pump Assembly Parts

CC5048DCV, CC5048DCV-3, CC5049 Hydraulic Lift Pump Assembly Parts

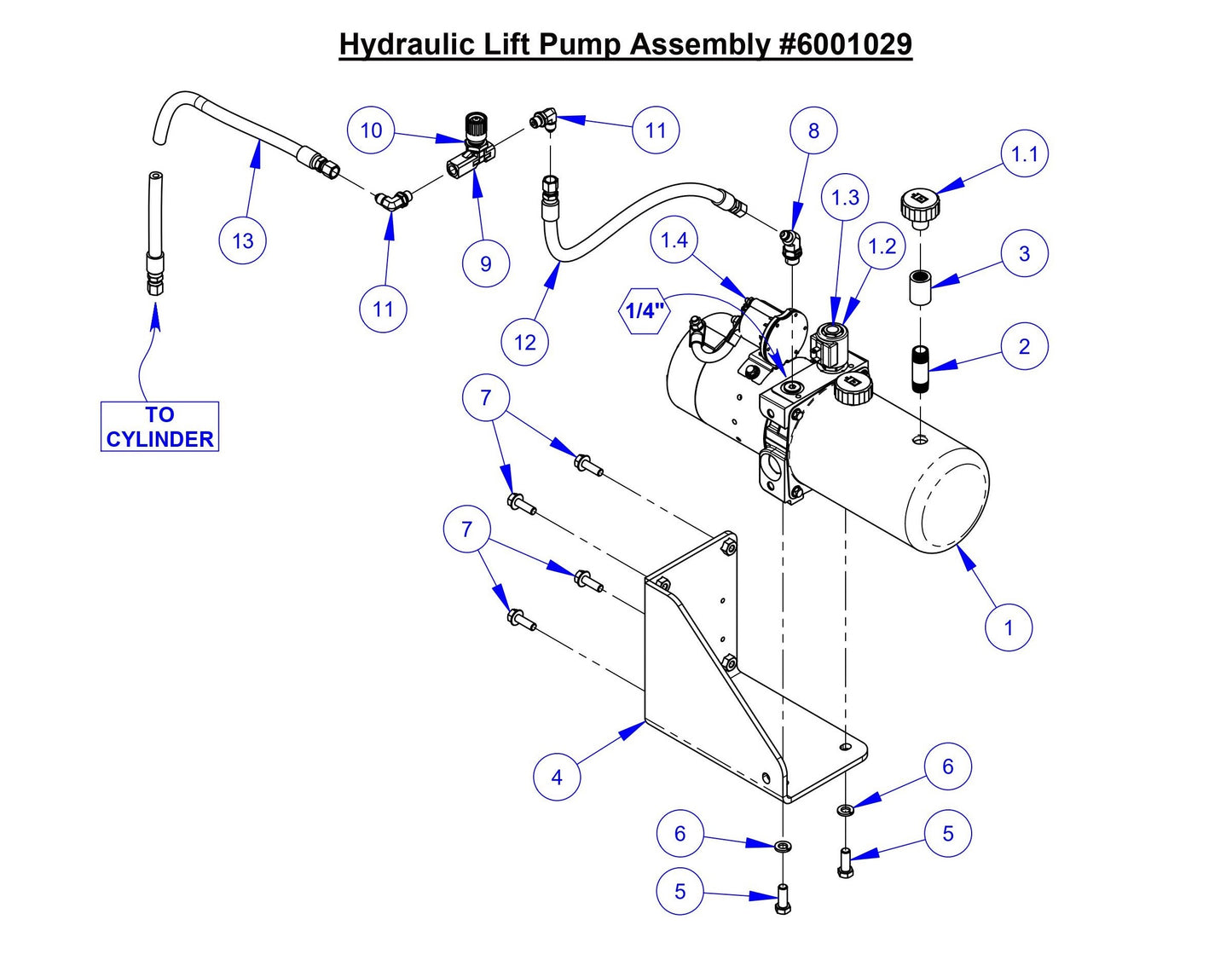

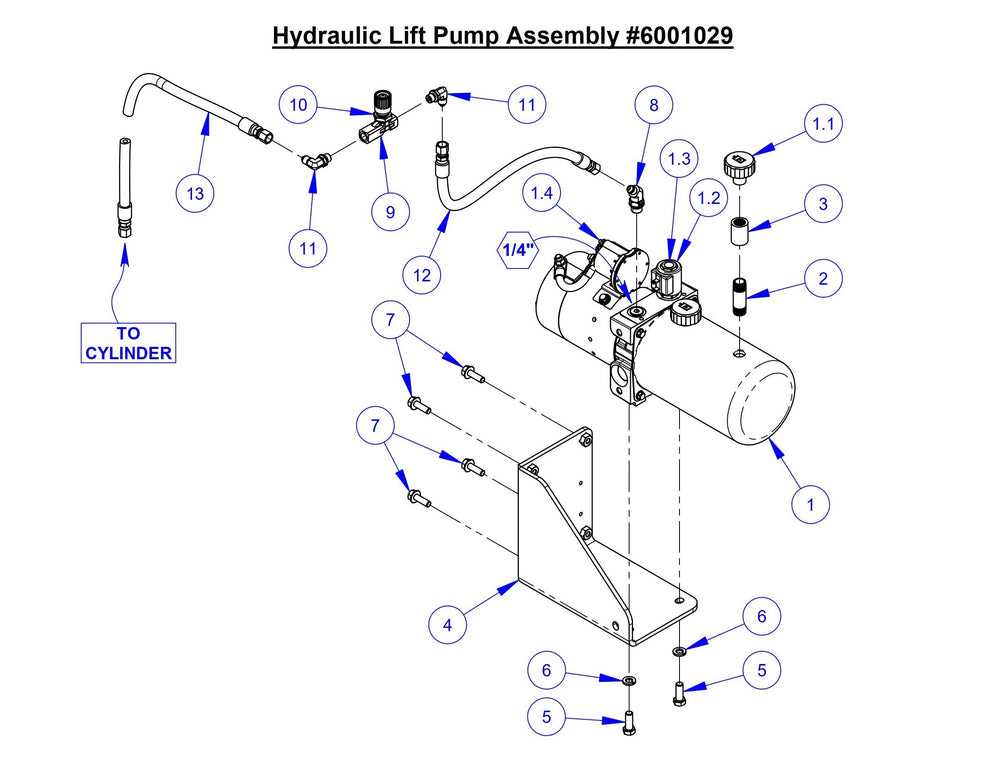

  • CC5049 Hydraulic Lift Pump Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1.1
2700321 Breather Cap for CC3500J Concrete Saw Core Cut by Diamond Products
$23.67
1.2
2700243 Valve Coil for CC6561 Concrete Saw Core Cut by Diamond Products
$48.12
1.3
2700244 Valve Stem for CC6561 Concrete Saw Core Cut by Diamond Products
$126.72
2
3200123 Pipe Nipple, 3/8" NPT x 2" for CC3500J Concrete Saw Core Cut by Diamond Products
$18.97
3
3200120 Pipe Coupling, 3/8" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$31.81
5
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
3200214 Elbow, 1/4" M. O-Ring to 1/4" M. JIC for CC7874XL Concrete Saw Core Cut by Diamond Products
$8.05
1.4
2709904 Solenoid Start Switch fits CC6571 by Core Cut Diamond Products
$107.00
8
2901560 Cap Screw Hex Flange for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
