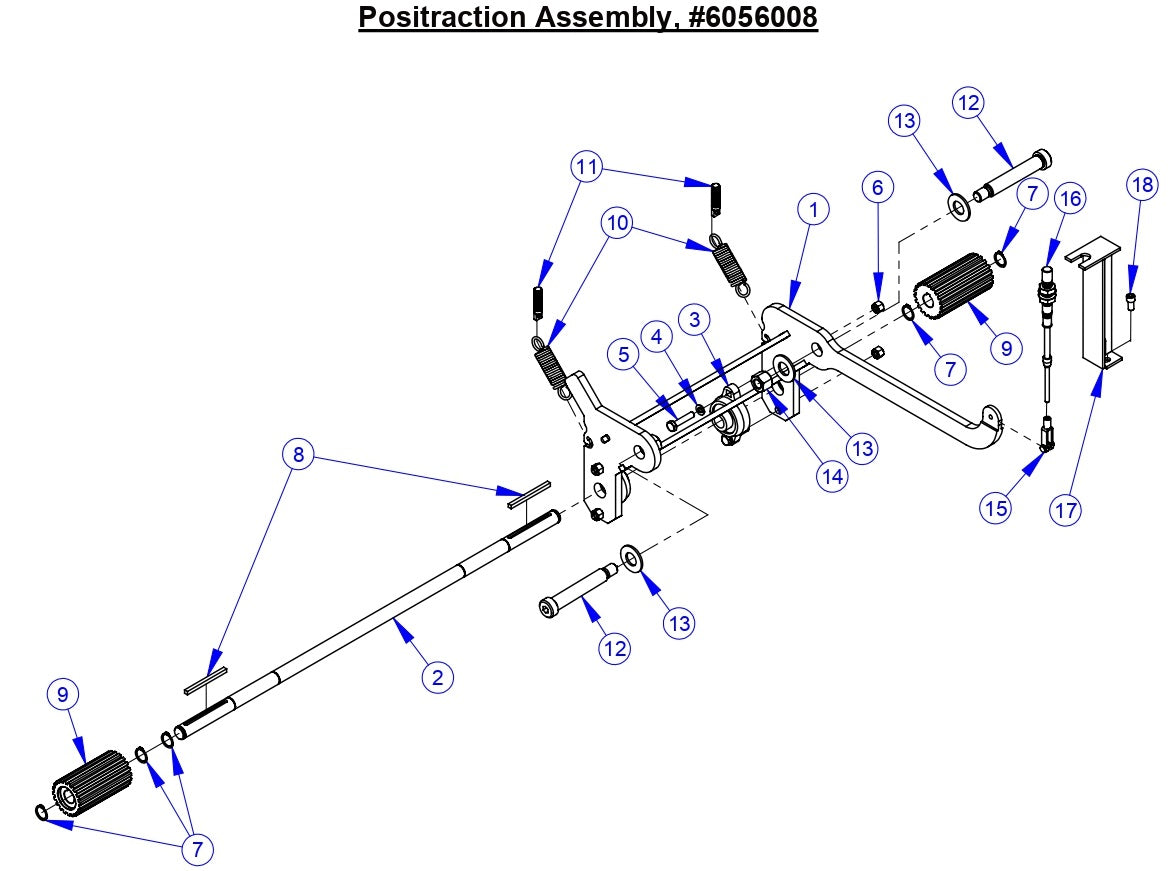

CC5555GK Positraction Assembly

CC5555GK Positraction Assembly

  • CC5555GK Positraction Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6056523 Positraction Weldment for CC5555-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
2
6056524 Positraction Axle 5/8" x 24" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$456.39
3
2500807 Bearing 5/8" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$48.42
4
2900024 Lock Washer 1/4" Split 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900052 1/4-20 x 1.25" Hex Head Cap Screw for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2500364 Retaining Ring 5/8" External for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.99
8
2504744 Key Undersized for CC5555-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
9
6056525 Sprocket 20T for CC5555-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
10
2503940 Extension Spring 3/4 x .105 x 3.00" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$11.33
11
2901385 Spring Anchor 3/8 x 1-5/8" for CC5555-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
12
2900824 Shoulder Screw 5/8" x 3-1/4" (1/2-13) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$18.58
13
2900002 Flat Washer 5/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900026 Lock Nut 1/2-13 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
2504867 Clevis Rod End #10-32 x 1-9/16" for CC5555-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
16
2504870 Turn-Lock Cable for CC5555-3 Concrete Saw Core Cut by Diamond Products
$172.26
17
6056645 Positraction Bracket for CC5555-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
18
2900122 Cap Screw Soc. Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
