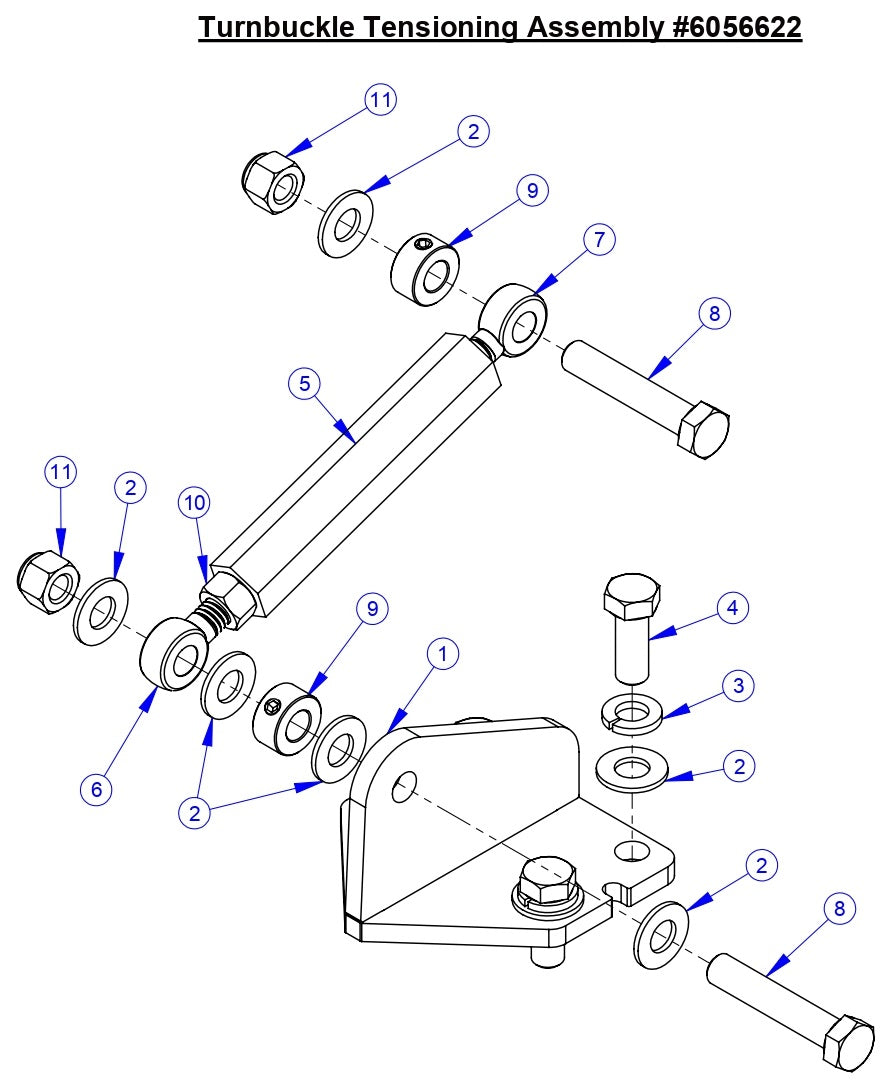

CC5555GK Turnbuckle Tensioning Assembly

CC5555GK Turnbuckle Tensioning Assembly

  • CC5555GK Turnbuckle Tensioning Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6056039 Belt Tension Bracket for CC5555-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
2
2900014 3/8" SAE Flat Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
3
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
6056041 Coupling Nut 3/8"-16 x 4" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$80.78
6
6056040 Rod End RH for CC5555-3 Concrete Saw Core Cut by Diamond Products
$37.79
7
6056044 Rod End: LH 3/8"-16 X 1.9375 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$46.67
8
2900060 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
9
2501603 Set Collar 3/8" with Set Screw for CC5555-3 Concrete Saw Core Cut by Diamond Products
$9.50
10
2900033 Hex Nut 3/8-16 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
