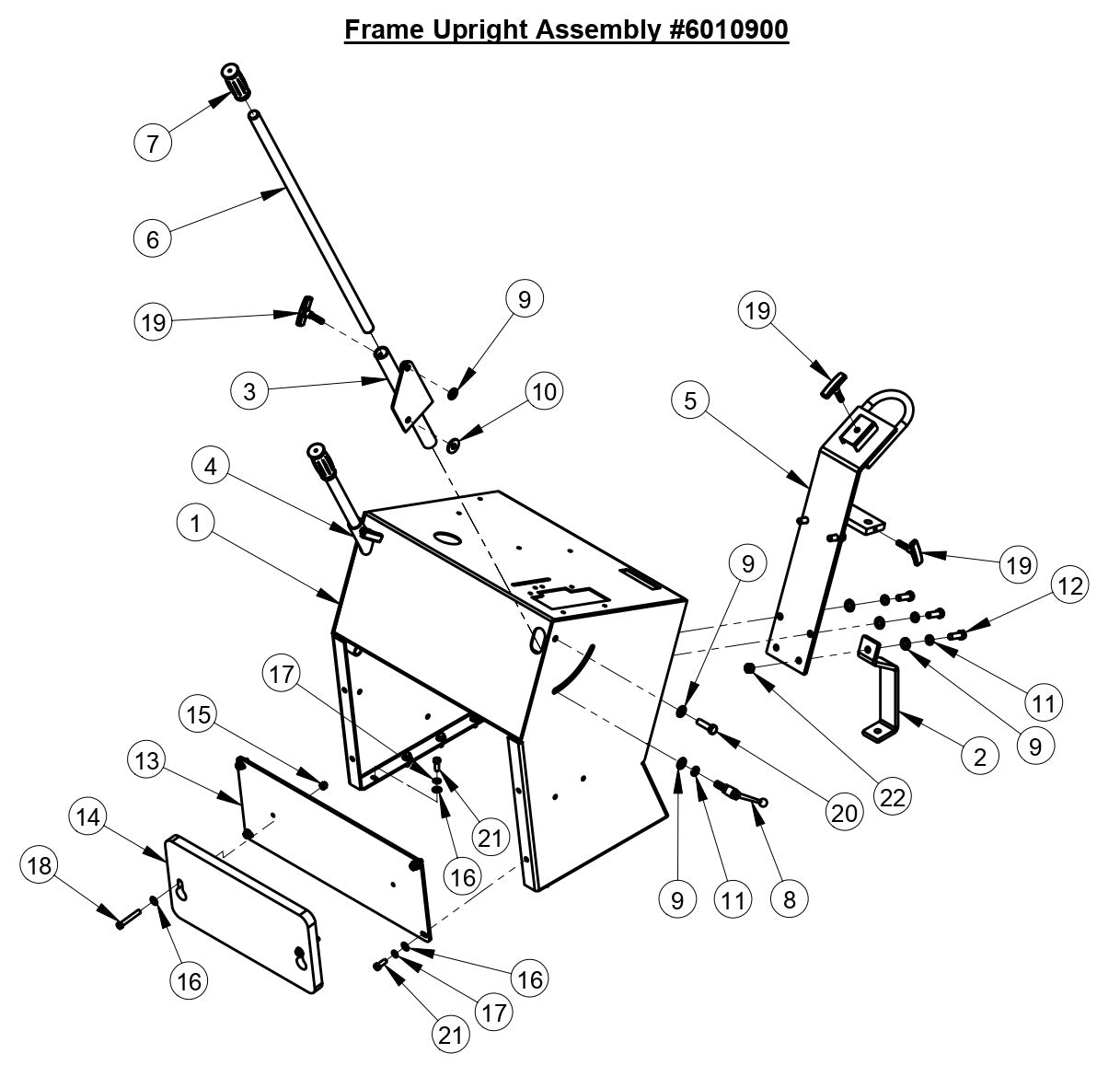

CC6160D Frame Upright Assembly

CC6160D Frame Upright Assembly

  • CC6160D Frame Upright Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
6
6010014 Handle Bar, 36" Long fits CC6160D by Core Cut Diamond Products
$60.60
7
2500636 Handle Grip fits CC6160D by Core Cut Diamond Products
$32.64
8
2502506 Lever-Adjustable 1/2 x 2 fits CC6160D by Core Cut Diamond Products
$48.42
9
2900058 Flat Washer, 1/2" SAE fits CC6160D by Core Cut Diamond Products
$6.00
10
2900700 Washer-Plastic 1-3/8 x 1/2 ID fits CC6160D by Core Cut Diamond Products
$11.50
11
2900084 Lock Washer, 1/2" Split fits CC6160D by Core Cut Diamond Products
$6.00
12
2900499 Cap Screw, Hex Hd., 1/2-13 x 1-1/2" fits CC6160D by Core Cut Diamond Products
$3.99
13
6011276 Rear Cover for CC6160D Rear Pivot Saw Core Cut by Diamond Products
Call for Price call for price call for price
14
6011290 Counterweight - Optional fits CC6160D by Core Cut Diamond Products
$160.38
15
2900018 Lock Nut, 3/8-16 Nylon fits CC6160D by Core Cut Diamond Products
$2.99
16
2900014 Flat Washer, 3/8" SAE fits CC6160D by Core Cut Diamond Products
$6.00
17
2900006 Lock Washer, 3/8" Split fits CC6160D by Core Cut Diamond Products
$6.00
18
2900596 Cap Screw, Hex Hd., 3/8-16 x 2-1/2" fits CC6160D by Core Cut Diamond Products
$6.00
19
2400199 Locking Knob 3/8 Stud fits CC6160D by Core Cut Diamond Products
$24.75
20
2900139 Cap Screw, Hex Hd., 1/2-13 x 1-3/4" fits CC6160D by Core Cut Diamond Products
$3.99
21
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" fits CC6160D by Core Cut Diamond Products
$2.99
22
2900037 Hex Nut, 1/2-13 fits CC6160D by Core Cut Diamond Products
$2.99
1
6011271 Frame Upright Weldment for CC6160D Rear Pivot Saw Core Cut by Diamond Products
Call for Price call for price call for price
2
6015032 Lift Frame Brace for CC6160D Rear Pivot Saw Core Cut by Diamond Products
Call for Price call for price call for price
3
6011270 Handle Mount RH for CC6160D Rear Pivot Saw Core Cut by Diamond Products
Call for Price call for price call for price
4
6011269 Handle Mount LH for CC6160D Rear Pivot Saw Core Cut by Diamond Products
Call for Price call for price call for price
5
6011272 Lifting Hook Weldment for CC6160D Rear Pivot Saw Core Cut by Diamond Products
Call for Price call for price call for price
