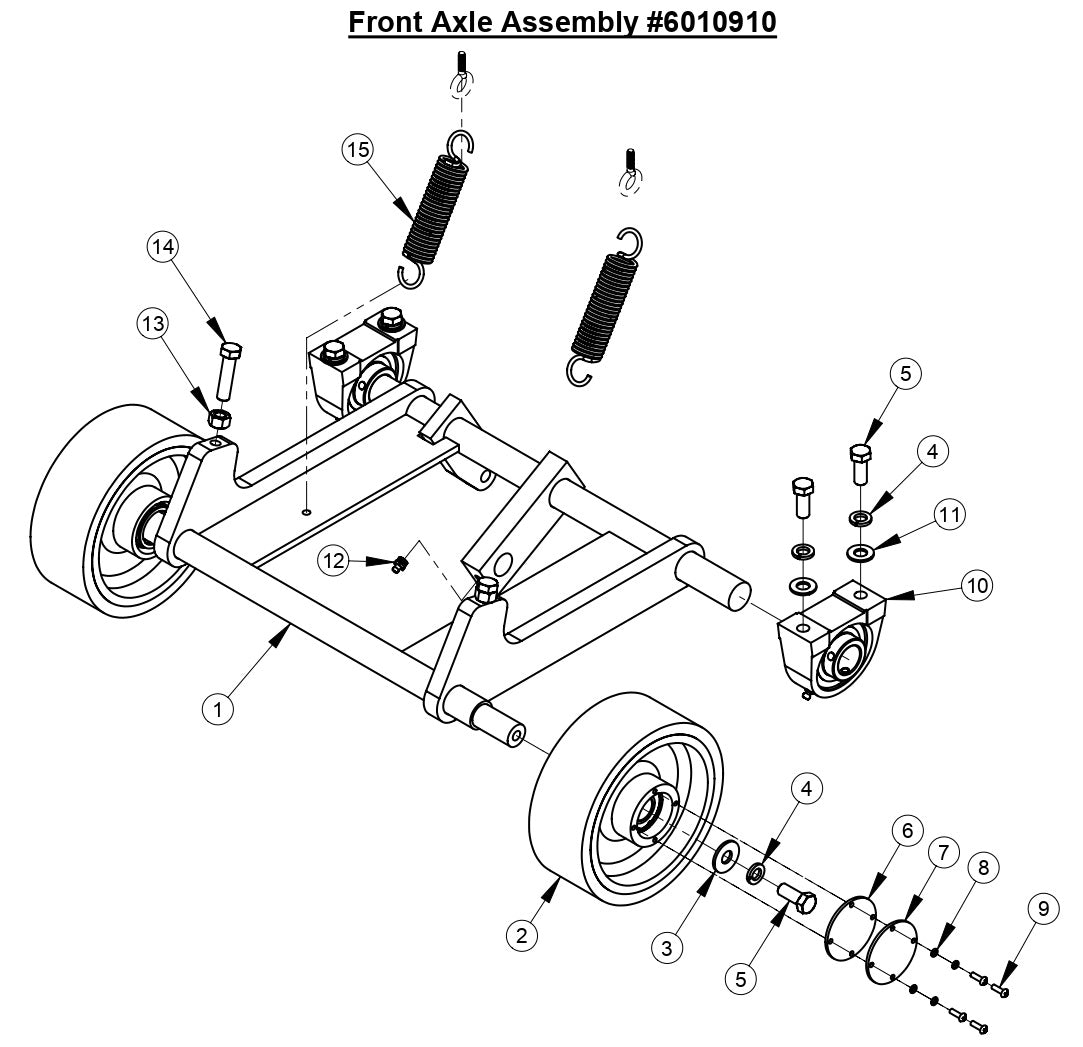

CC6160D Front Axle Assembly

CC6160D Front Axle Assembly

  • CC6160D Front Axle Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products FRONT AXLE WELDMENT 6011265
$362.50
2
6010581 Wheel Assembly, 8" Front for CC6540E CONCRETE SAW Core Cut by Diamond Products
$325.71
3
2900127 Flat Washer, 1/2" USS for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
4
2900084 Lock Washer, 1/2" Split fits CC6160D by Core Cut Diamond Products
$6.00
5
2900025 Cap Screw, Hex Hd., 1/2-13 x 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
6
2501393 Wheel Cover Gasket for CC6540E CONCRETE SAW Core Cut by Diamond Products
$8.93
7
6010536 Wheel Cover for CC6561 Concrete Saw Core Cut by Diamond Products
$13.47
8
2900038 Lock Washer #10 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900159 Machine Screw, Rd. Hd., #10-24 x 5/8" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
10
2500158 Pillow Block Bearing 1-1/4" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$47.11
11
2900058 Flat Washer, 1/2" SAE fits CC6160D by Core Cut Diamond Products
$6.00
12
2900062 Grease Fitting, 1/8" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
13
2900037 Hex Nut, 1/2-13 fits CC6160D by Core Cut Diamond Products
$2.99
14
2900106 Cap Screw, Hex Hd., 1/2-13 x 2" for CC3535 Concrete Saw Core Cut by Diamond Products
$4.99
15
Diamond Products SPRING,1.25"X6.5"X.162 WIRE DIAMETER 2504041
$49.50
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
