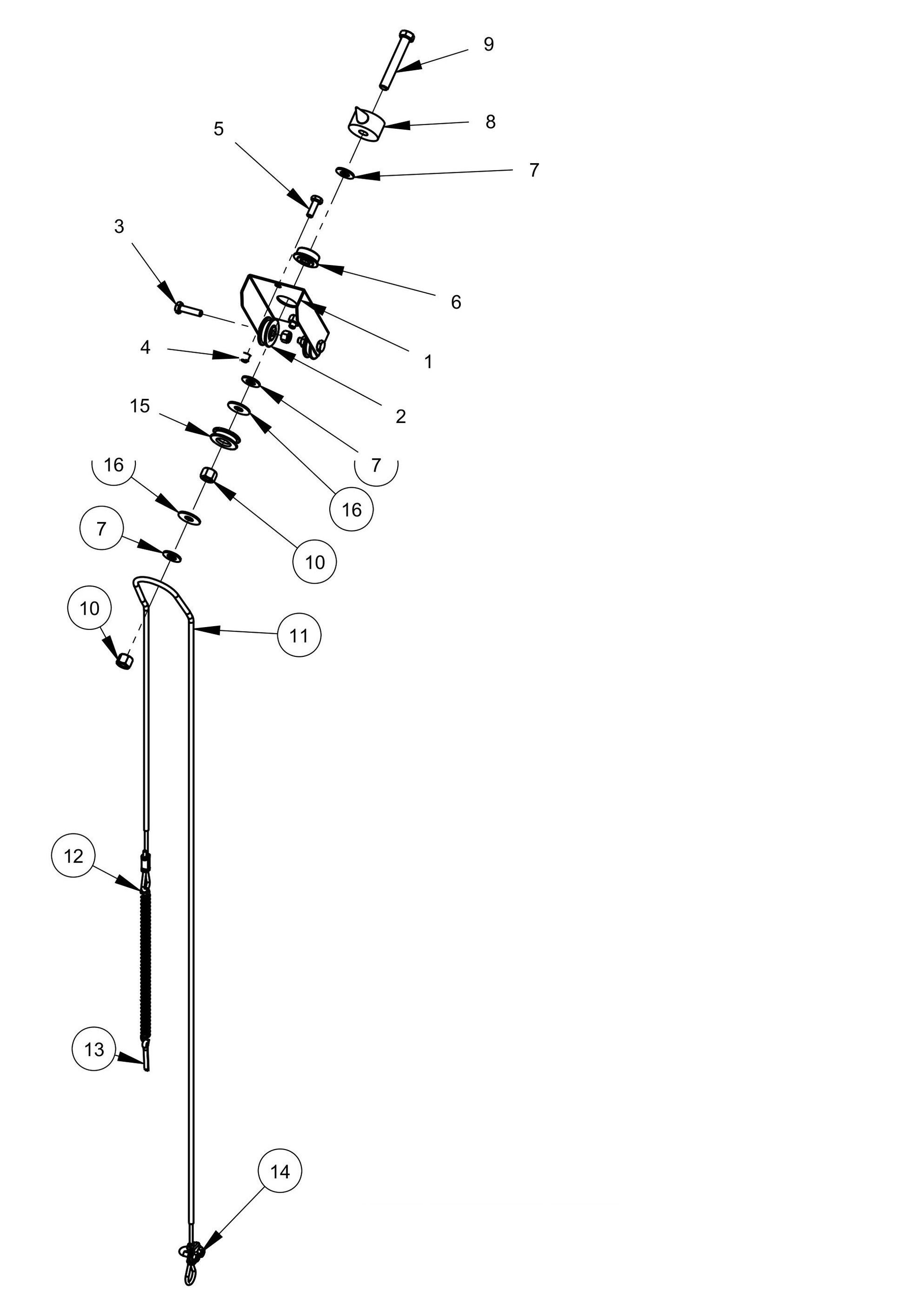

CC6160QS Retrofit Depth Indicator Retrofit Assembly Parts

CC6160QS Retrofit Depth Indicator Retrofit Assembly Parts

  • CC6160QS Retrofit Depth Indicator Retrofit Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010092 Depth Indicator Mount Bracket for CC3500J Concrete Saw Core Cut by Diamond Products
$18.00
2
2500155 Cable Pulley, 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$24.00
3
1/4-20X1" Hex Hd Capscrew Grade 5 2900008 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$2.99
4
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
1/4-20X3/4 Hex Capscrew 2900144 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$2.99
6
250014-508 Cam Limit Sw Mar 10 Eva by Sullair
$98.40
7
2500145 Flange Bearing, 3/8" for CC3535 Concrete Saw Core Cut by Diamond Products
$49.36
8
2900014 3/8" SAE Flat Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
6010091 Depth Indicator Pointer for CC3500J Concrete Saw Core Cut by Diamond Products
$53.95
10
2900596 3/8-16 x 2.50" Hex Head Cap Screw for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$3.99
11
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
6010094 Depth Indicator Cable with Crimp, 48" for CC3500J Concrete Saw Core Cut by Diamond Products
$44.00
13
2500195 Spring, 3/8" x 7-3/4" for CC3535 Concrete Saw Core Cut by Diamond Products
$16.01
14
2900055 Cotter Pin ,1/8” x 1” for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
16
2500214 Cable Clamp for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
15
Call for Price call for price call for price
