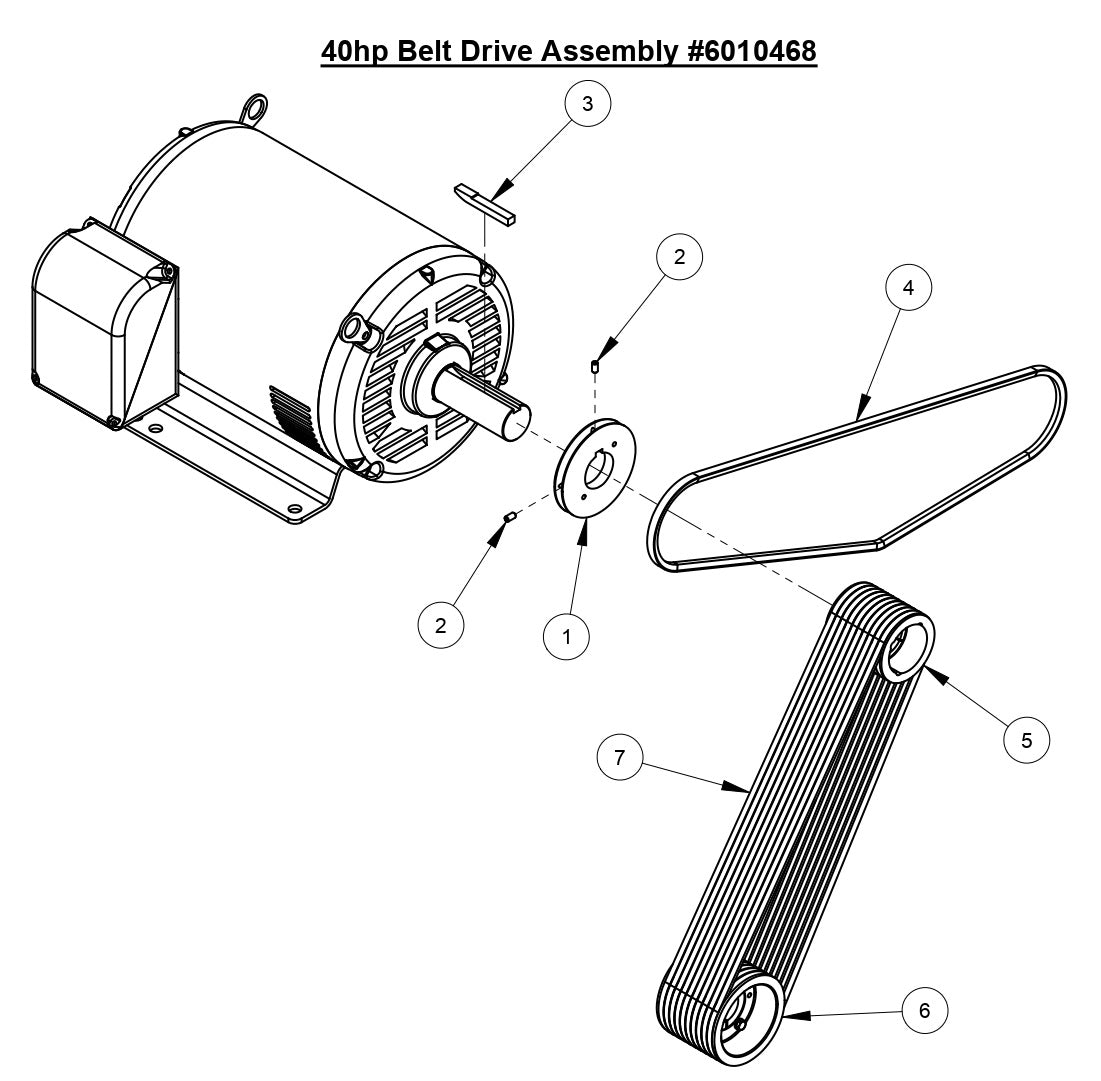

CC6540E 40HP Belt Drive Assembly (20" Blade Drive)

CC6540E 40HP Belt Drive Assembly (20" Blade Drive)

  • CC6540E 40HP Belt Drive Assembly (20" Blade Drive)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010182 Pulley, Accessory Drive for CC6540E CONCRETE SAW Core Cut by Diamond Products
$158.40
2
2900418 Set Screw, Soc. Hd., 5/16-18 x 5/8" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
3
2701362 Key, 1/2" Sq. x 4-1/2" Long for CC6540E CONCRETE SAW Core Cut by Diamond Products
$9.00
4
6010469 Link Belt for CC6540E CONCRETE SAW Core Cut by Diamond Products
$225.72
5
6010470 Sheave, 5.6" x 10 Groove w/Bushing for CC6540E CONCRETE SAW Core Cut by Diamond Products
$348.48
5
2500209 Sheave, 5.6" x 10 Groove QD Style for CC6540E CONCRETE SAW Core Cut by Diamond Products
$304.92
5
2500934 QD Bushing, SK x 2-1/8" w/Fasteners for CC6540E CONCRETE SAW Core Cut by Diamond Products
$72.10
6
6010658 Sheave, 4" x 10 Groove w/Bushing for CC6540E CONCRETE SAW Core Cut by Diamond Products
$627.60
6
2501380 Sheave, 4" x 10 Groove Taper Style for CC6540E CONCRETE SAW Core Cut by Diamond Products
$417.78
6
2501410 Taper Bushing, 1-3/4" w/Setscrews for CC6540E CONCRETE SAW Core Cut by Diamond Products
$73.17
7
2500188 V-Belt, 3VX560 for CC6540E CONCRETE SAW Core Cut by Diamond Products
$47.35
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
