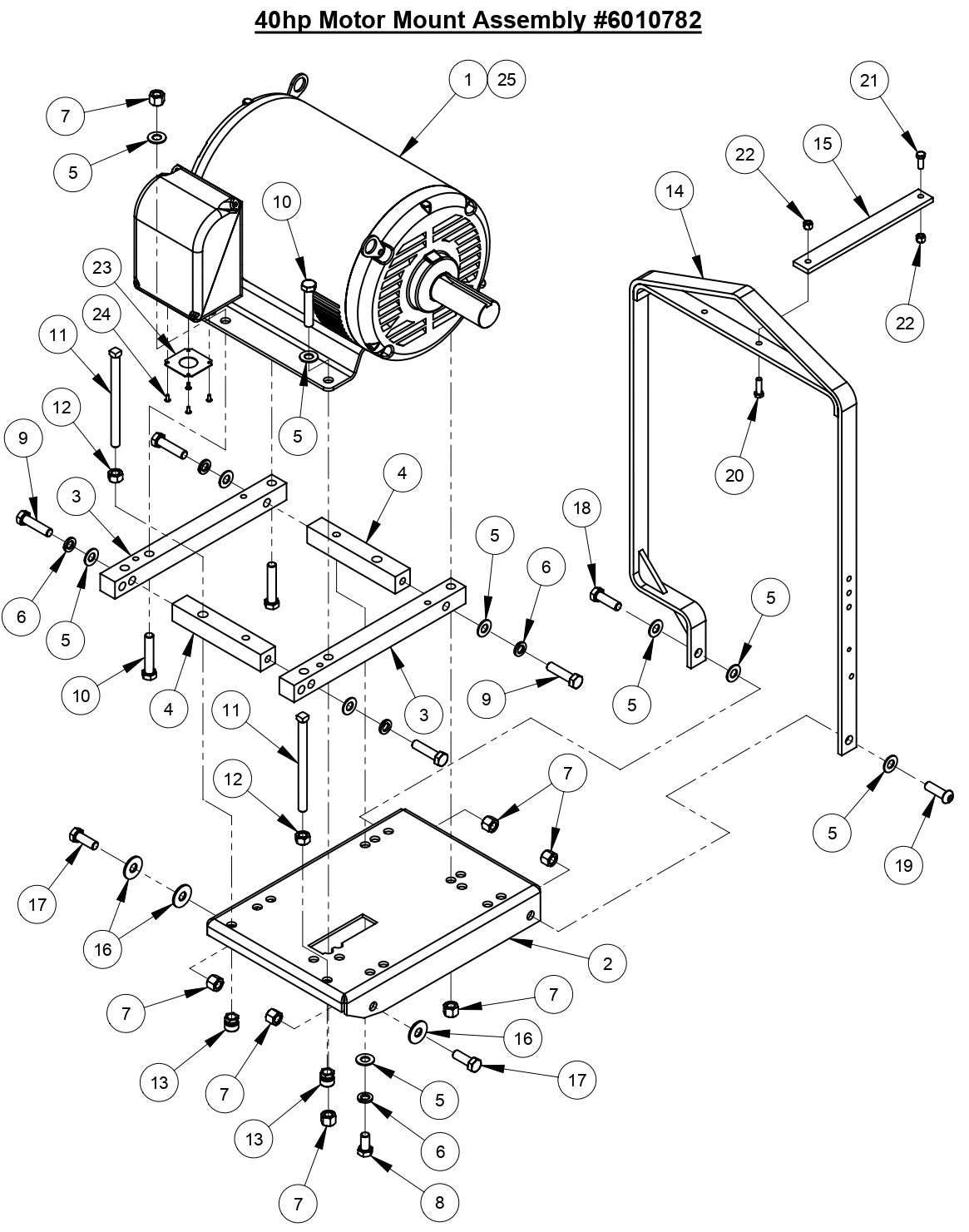

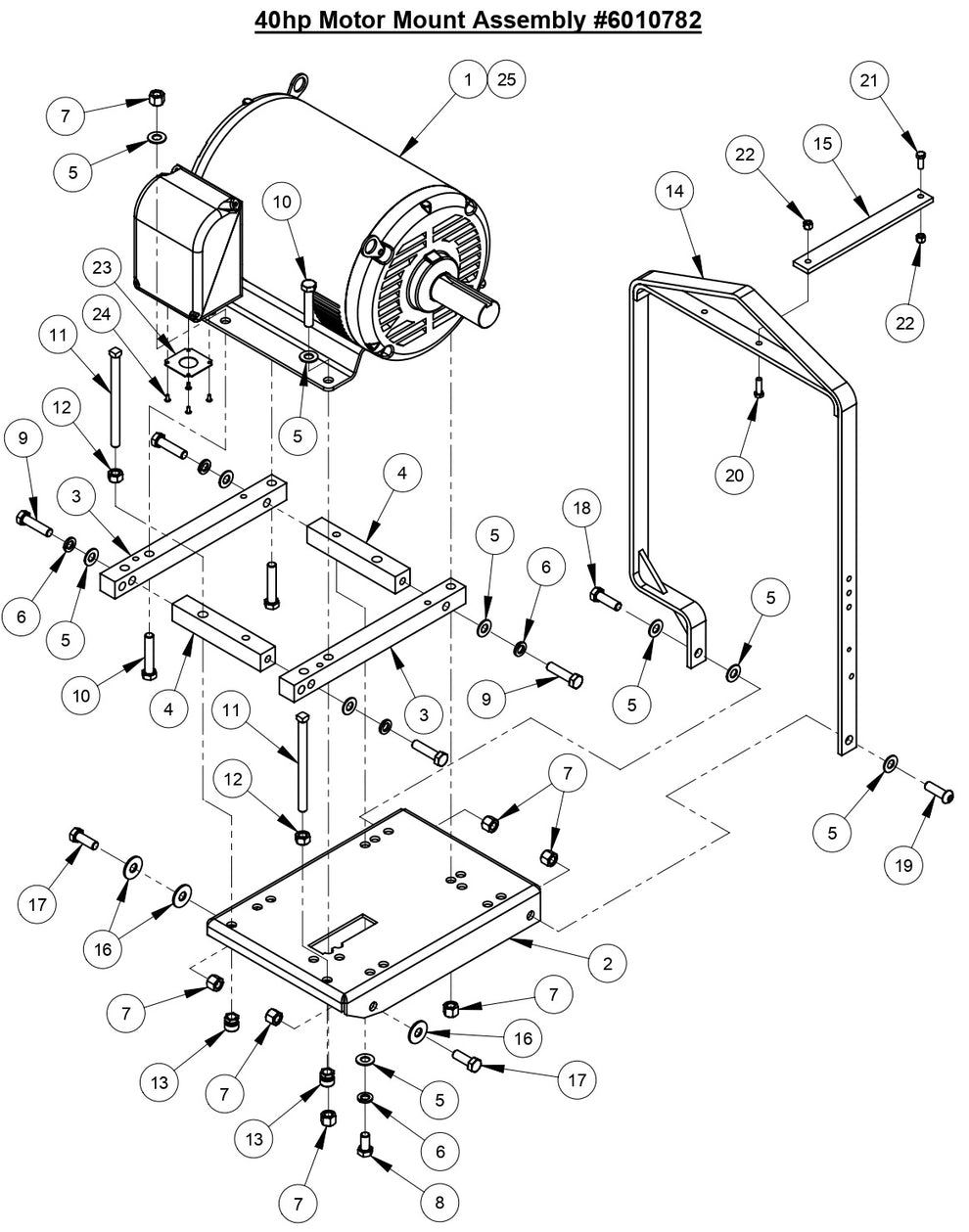

CC6540E 40HP Motor Mount Assembly

CC6540E 40HP Motor Mount Assembly

  • CC6540E 40HP Motor Mount Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600185 Motor, 40hp Lincoln for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6,667.20
2
6010011 Engine Base Weldment for CC6540E CONCRETE SAW Core Cut by Diamond Products
$231.66
3
6012034 Motor Spacer for CC6540E CONCRETE SAW Core Cut by Diamond Products
$117.00
4
6012035 Motor Connect Spacer for CC6540E CONCRETE SAW Core Cut by Diamond Products
$81.40
5
2900002 Flat Washer, 5/8" SAE for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
6
2900113 Lock Washer, 5/8" Split for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
7
2900135 Lock Nut, 5/8-11 Nylon for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
8
2900512 Cap Screw, Hex Hd., 5/8-11 x 1-1/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$4.99
9
2900527 Cap Screw, Hex Hd., 5/8-11 x 2-1/2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$7.73
10
2900137 Cap Screw, Hex Hd., 5/8-11 x 3-1/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$12.78
11
2900385 Set Screw, Sq. Hd., 5/8-11 x 8" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$22.60
12
2900112 Hex Nut, 5/8-11 for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
13
2900446 Swivel Pad Nut, 5/8-11 for CC6540E CONCRETE SAW Core Cut by Diamond Products
$30.86
14
6010012 Frame Lift for CC6540E CONCRETE SAW Core Cut by Diamond Products
$949.41
15
6010013 Frame Lift Brace for CC6540E CONCRETE SAW Core Cut by Diamond Products
$32.25
16
2900721 Flat Washer, 5/8" USS Hardened for CC6540E CONCRETE SAW Core Cut by Diamond Products
$4.99
17
2900147 Cap Screw, Hex Hd., 5/8-11 x 1-3/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6.99
18
2900136 Cap Screw, Hex Hd., 5/8-11 x 2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6.70
19
2900286 Cap Screw, Button Hd., 5/8-11 x 2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$11.79
20
2900013 Cap Screw, Hex Hd., 3/8-16 x 1-1/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
21
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
22
2900018 Lock Nut, 3/8-16 Nylon for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
23
2500676 Motor Cord Adapter Plate for CC6540E CONCRETE SAW Core Cut by Diamond Products
$12.91
24
2900201 Rivet, 3/16" Dia. for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
25
2600250 Motor, 40hp Lincoln (575 Volt) for CC6540E CONCRETE SAW Core Cut by Diamond Products
Call for Price call for price call for price
